USING THE DIGITAL OPERATOR
4.1.1 Connecting the Digital Operator
168
4.1 Basic Operations
This section describes the basic operations using the Digital Operator.
4.1.1 Connecting the Digital Operator 168...................................
4.1.2 Resetting Servo Alarms 169..........................................
4.1.3 Basic Functions and Mode Selection 170...............................
4.1.4 Operation in Status Display Mode 171..................................
4.1.5 Operation in User Constant Setting Mode 174...........................
4.1.6 Operation in Monitor Mode 179........................................
4.1.1 Connecting the Digital Operator
The Digital Operator is available as two types: JUSP-OP02A-1 (Hand-held Type) and JUSP-
OP03A (Mount Type).

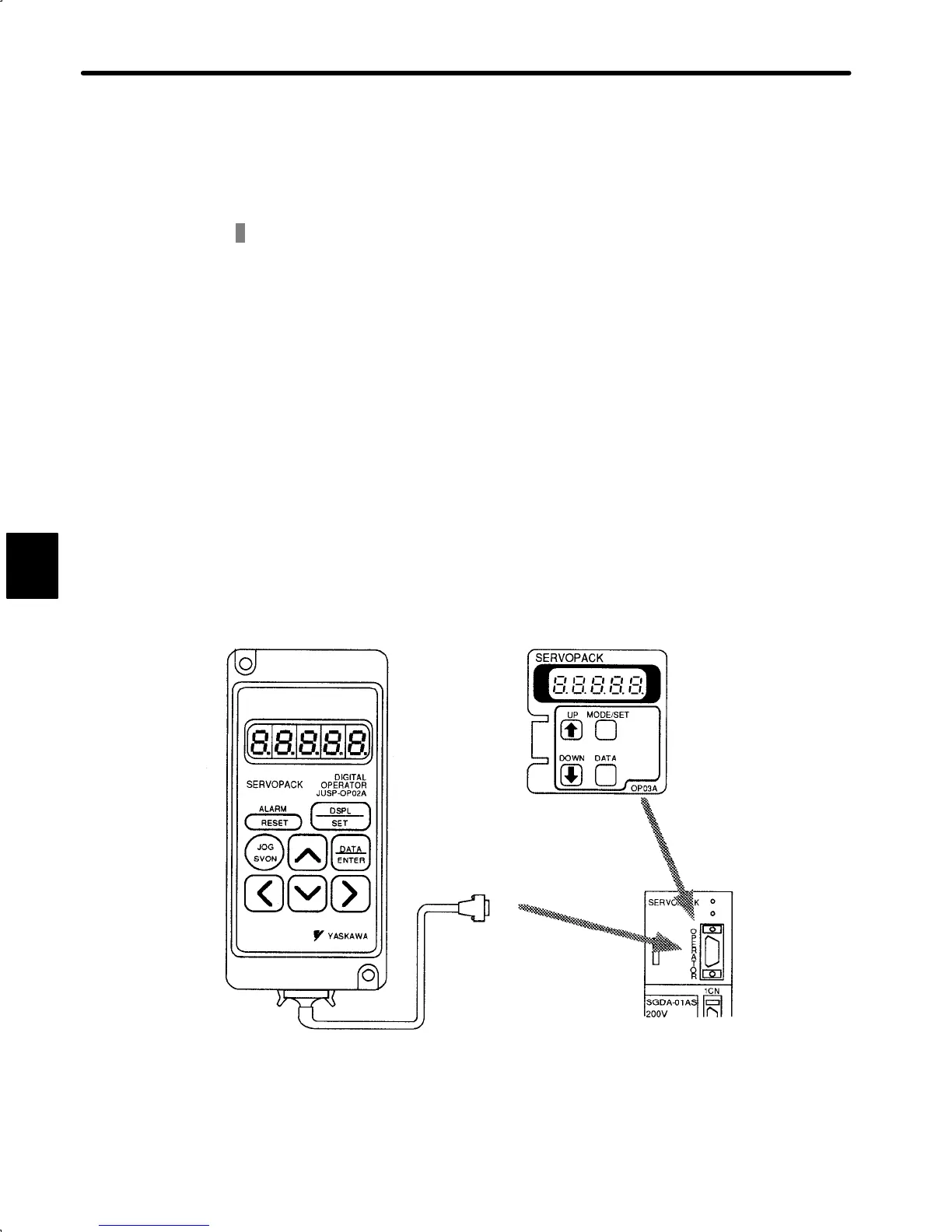

Each type is connected to the Servopack as shown below.
JUSP-OP02A-1 (Hand-held Type) JUSP-OP03A (Mount Type)
Attach directly to
the Servopack
Connect using the 1 m
cable supplied.
Servopack
• The Digital Operator connector can be connected or disconnected while the Servopack
power is ON.
4
