SERVO SELECTION AND DATA SHEETS
5.6.12 Magnetic Contactor
332

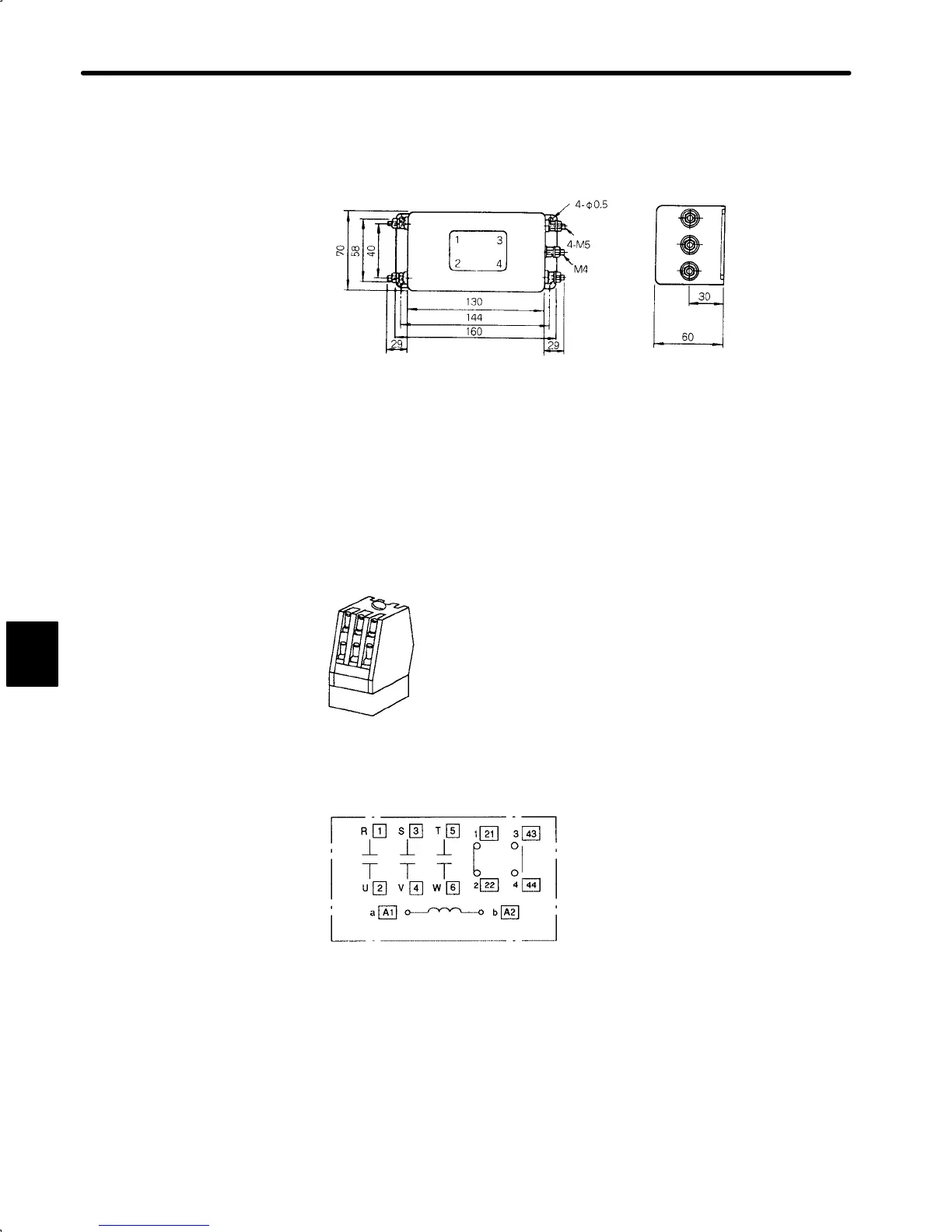

• LF-220 (Single-phase 200 VAC Class, 20 A)
IN Rating
Plate
(5.12)
(5.67)
(6.30)
(1.14)(1.14)
(4-∅0.02)
(2.76) (2.28) (1.57)
(1.18)
(2.36)
5.6.12 Magnetic Contactor
1) Use one 30 A magnetic contactor of the type shown below for a single Σ Series, regard-
less of capacity. For multiple servo systems, select the magnetic contactor according to
the total capacity.
Type: HI-15E5 (30 A)
Turns servo ON and OFF.
(Note)Attach an appropriate surge suppressor to the
magnetic contactor.
• Internal Connection Diagram
