YASKAWA SGDA series - Servopack Dimensional Drawings

5.4
Σ
-Series Dimensional Drawings
289
5.4.2 Servopack Dimensional Drawings
1) The dimension drawings of the SGDA Servopack are broadly grouped according to ca-
pacity into the following three categories.
a) 200V, 30W (0.04 HP) to 200 W (0.27HP) (Type: SGDA-A3Aj to 02Aj)
100V, 30W (0.04 HP) to 100 W (0.13HP) (Type: SGDA-A3Bj to 01Bj)
b) 200V, 400W (0.53 HP) (Type: SGDA-04Aj)
100V, 200W (0.27 HP) (Type: SGDA-02Bj)
c) 200V, 750W (1.01 HP) (Type: SGDA-08Aj)
100V, 300W (0.40 HP) (Type: SGDA-03Bj)

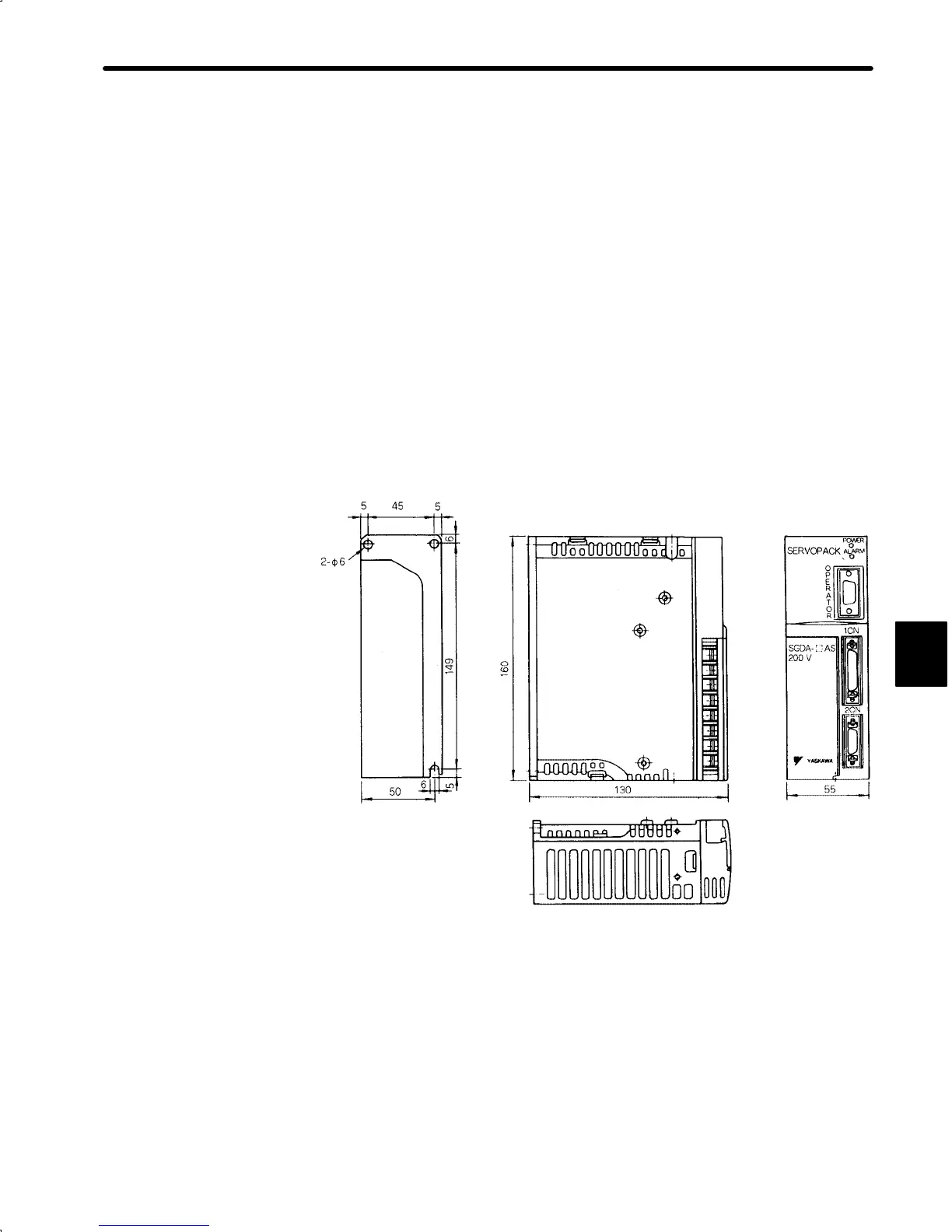

(1) SGDA-A3Aj to 02Aj (200V, 30 (0.04 HP) to 200 W (0.27HP))
SGDA-A3Bj to 01Bj (100V, 30 (0.04 HP) to 100 W (0.13HP))
Approx. Mass: 0.9 kg (1.98 lb)
(0.20)
(1.77) (0.20)
(2-Φ0.24)
MTG HOLES
(1.97)
(0.24)
(0.20)
(5.87)
(6.30)
(5.12) (2.17)
(0.24)
5
