5.1 Selecting aΣ -Series Servo
213
5.1.2 Selecting a Servopack
1) The selection of an SGDA Servopack matched to the servo system in which it is used is
based on the Servopack type, that is, the four alphanumeric characters after “SGDA-”,
described below.
The numbers (1) to (3) below correspond to the numbers in the flowchart for Servopack
selection on the following pages.

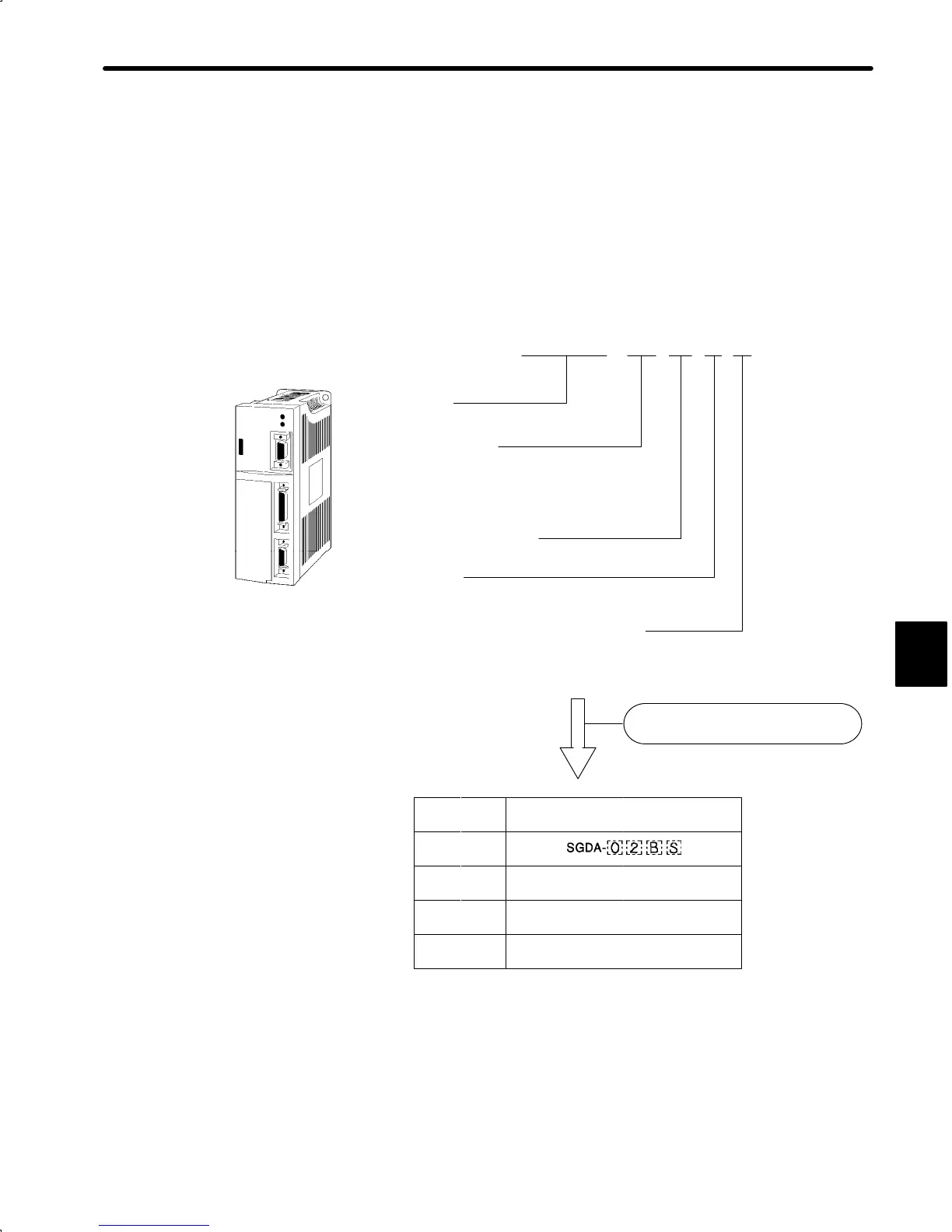

SGDA- 01 A S P
Σ-Series
SGDA: SGDA Servopack
1) Rated output
A3: 30W (0.04HP) A5: 50W (0.07HP)
01: 100W (0.13HP) 02: 200W (0.27HP)
03: 300W (0.40HP) 04: 400W (0.53HP)
08: 750W (1.01HP)
2) Supply voltage
A: 200V B: 100V
3) Model
S: For speed/torque control
P: For position control
4) Factory setting of applicable motor type
Blank: SGM Servomotor
P: SGMP Servomotor
Flowchart for Servopack selection
Selected Servopack type
SGDA-jjjj
SGDA-jjjj
DDDDDD
Example
Axis 1
Axis 2
DDD
* The applicable motor type (SGM/SGMP) can be changed by
setting the user constants.
2) The actual selection of the SGDA Servopack is conducted according to the flowchart in
the next page.
5
To Next Page
