SERVO SELECTION AND DATA SHEETS
5.1.2 Selecting a Servopackcont.
214
SGDA-JJ__
SGDA-jjA_
SGDA-jjB_
SGDA-jjjS
SGDA-jjjP
No
No
No
Yes
Yes
Yes
Yes
Start Servopack selection
1) Enter rated output
Check specifications in 5.3.1 Ratings
and Specifications.
D Enter a rated output equal
to the motor capacity.
Enter rated output
Enter code as characters 1 and 2:
30W (0.04HP) = A3, 50W (0.07HP) = A5,
100W (0.13HP) = 01, 200W (0.27HP) = 02,
300W (0.40HP) = 03, 400W (0.53HP) = 04,
750W (1.01HP) = 80
2) Determine supply voltage
200 V power supply
100 V power supply
3) Select model
Use speed references
Use torque references
e) Switching required between
variable speed and torque
control?
Switch between speed
and torque references
f) Direct position specification
required by pulse input?
select model for speed/torque control
select model for
position control
To next page (A)
DDD
100 V / 200 V ?
c) Tension control required?
d) Forced stopping or other torque
control required?
a) Variable speed control required?
b) Form position control loop with
host controller?

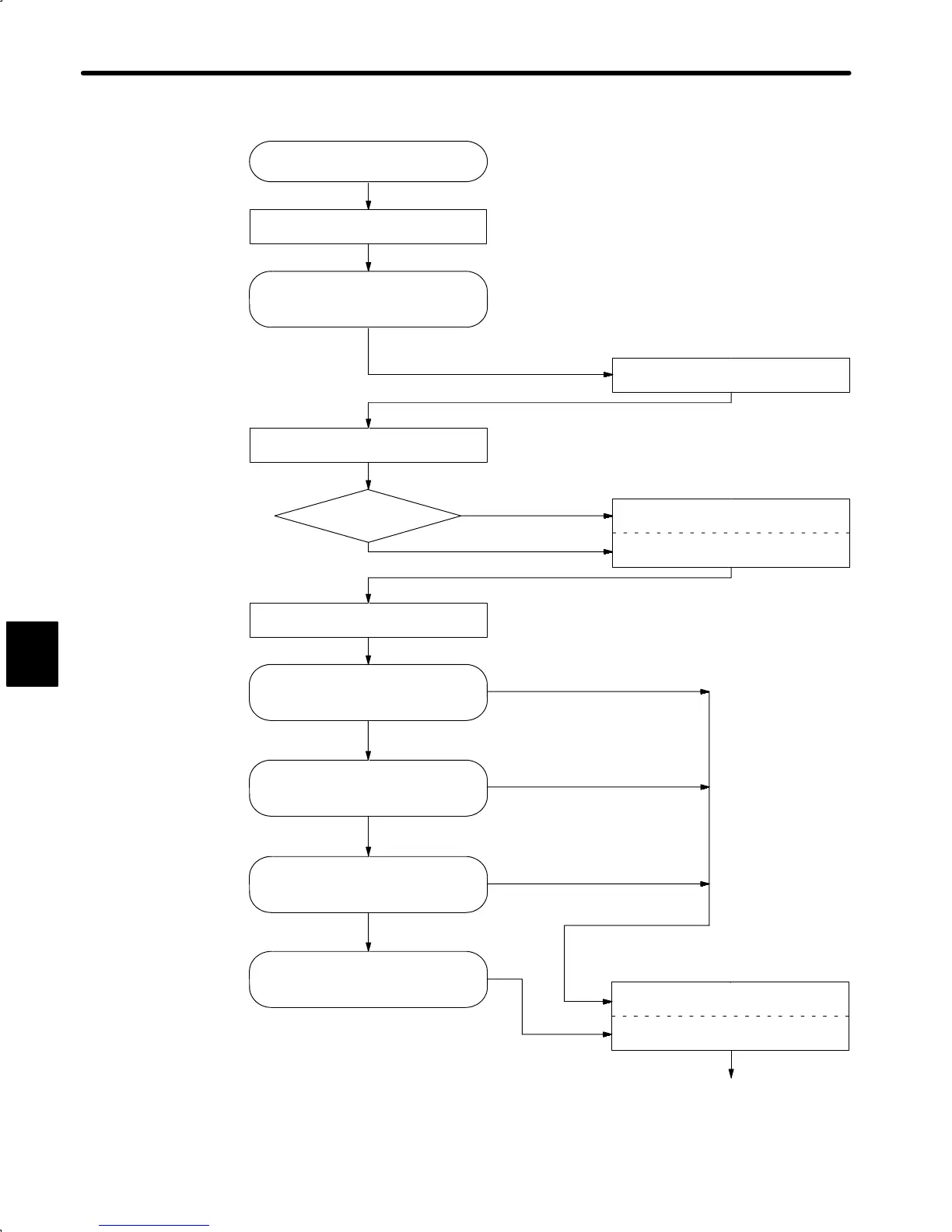

Flowchart for Servopack Selection
5
To Next Page
