SERVO SELECTION AND DATA SHEETS

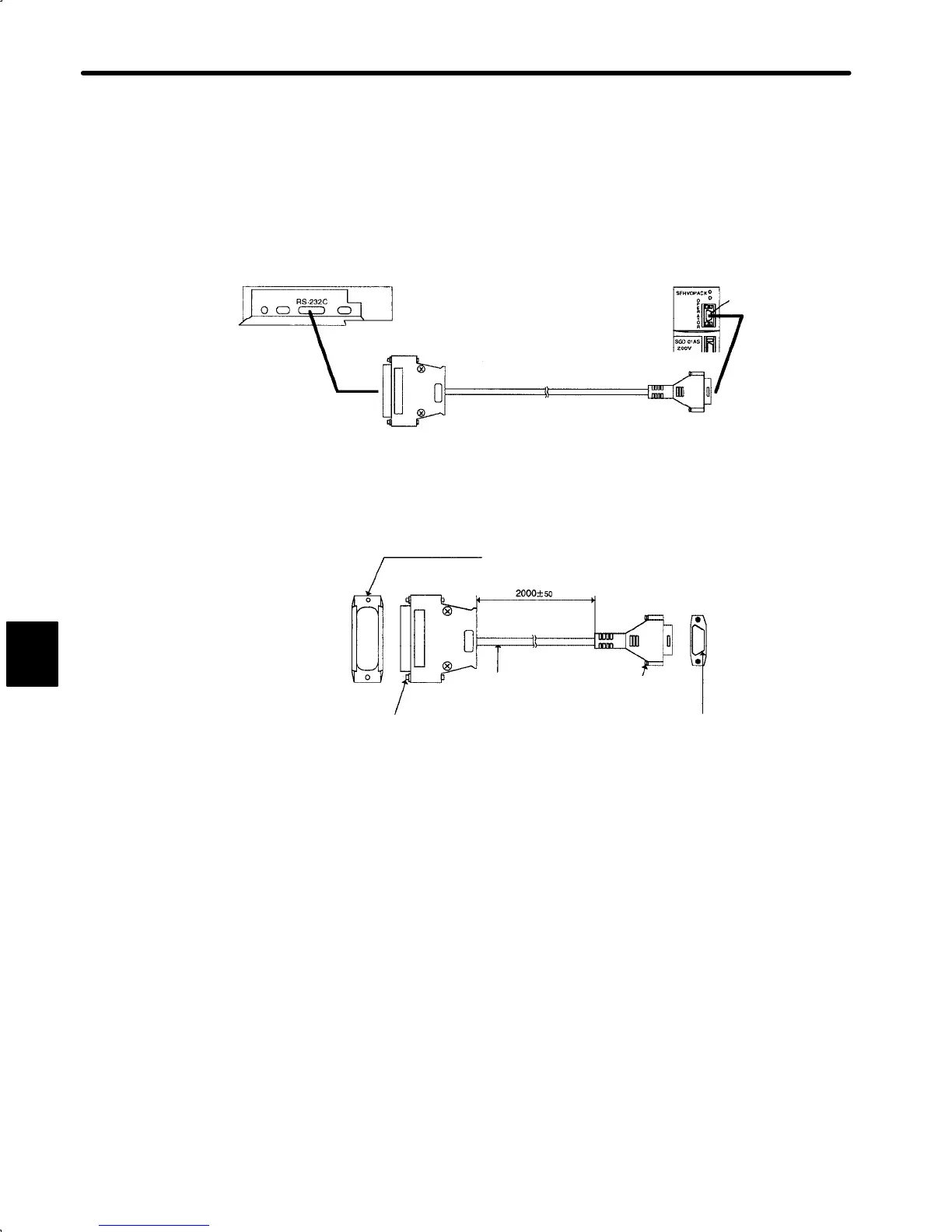

5.6.17 Cables for Connecting PC and Servopack
338
5.6.17 Cables for Connecting PC and Servopack
1) Special cables for connecting a PC to a Servopack. Using these cables allows monitoring
and setting of user constants with a PC.
PC software is available for these communications. Ask your Yaskawa representative for
details. Operate the software as described in the manual supplied.
Rear of PC Servopack
17LE-13090-27 (D2BC)
(Made by DDK.)
Connection Cable (2 m) (6.56 ft) or less
D-Sub 25-pin (Male) or D-sub 9-pin (Male)
D-Sub 9-pin (Male) 17JE-23090-02 (D8B)
(Made by DDK.)
Dimensional Drawings for Type DE9405258 (for NEC PC)
D-Sub connector 25-pin (Male) 17JE-23250-02 (D8A)
M2.6 screw
Cable (Black) UL2921
Two M3 screws x
10 length, 0.5
pitch
Pin Connector 17JE-23090-02 (D1)
(6.56¦0.164)
Note: Fold back the cable shielding at each end of the cable and secure it with clamps.
9strand twisted
(0.16
×
7) shielded
cable
2) The communications specifications and connecting-circuit specifications are listed be-
low.
Baud Rate: 9600 bps
Number of Bits Start: 1 bit
Data: 7 bits
Stop: 1 bit
Parity: 1 bit (even)
Synchronization Start-Stop
XON/XOFF Control None
Shift Control: None
