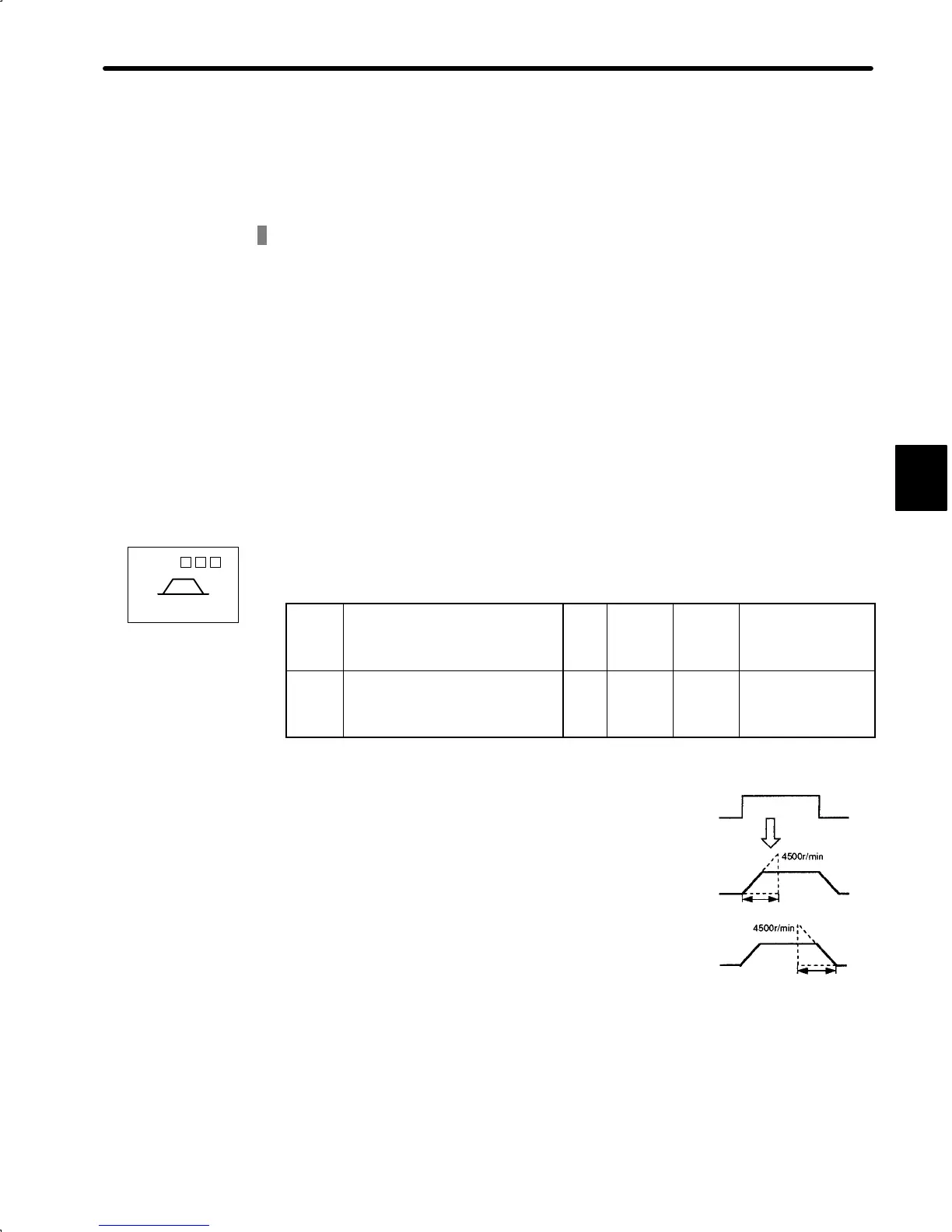

3.5.1 Using the Soft Start Function
1) The soft start function adjusts progressive speed reference input inside the Servopack so
that acceleration and deceleration can be as constant as possible. To use this function,
set the following user constants.
Cn-07
SFSACC
Soft Start Time (Acceleration)
Unit:
ms
Setting
Range:
0to
10000
Factory
Setting:
0
For Speed/Torque
Control Only
Cn-23
SFSDEC
Soft Start Time (Deceleration)
Unit:
ms
Setting
Range:
0to
10000
Factory
Setting:
0
For Speed/Torque
Control Only
In the Servopack, a speed reference is multiplied
by the acceleration or deceleration value set in
Cn-07 or Cn-23 to provide speed control.
Smooth speed control can be achieved when pro-
gressive speed references are input or when con-
tact input speed control is used.
Set these user constants as follows.
Cn-07: Time interval from the time the motor starts until the maximum speed (4500
r/min) is reached
Cn-23: Time interval from the time the motor is running at the maximum speed (4500
r/min) until it stops
3
SGDA- S
Speed/Torque
Speed
reference
Soft start
SGDA
Servopack
internal speed
reference
Cn-07: Set this time interval.
Cn-23: Set this time interval.
