3.8 Special Wiring
139

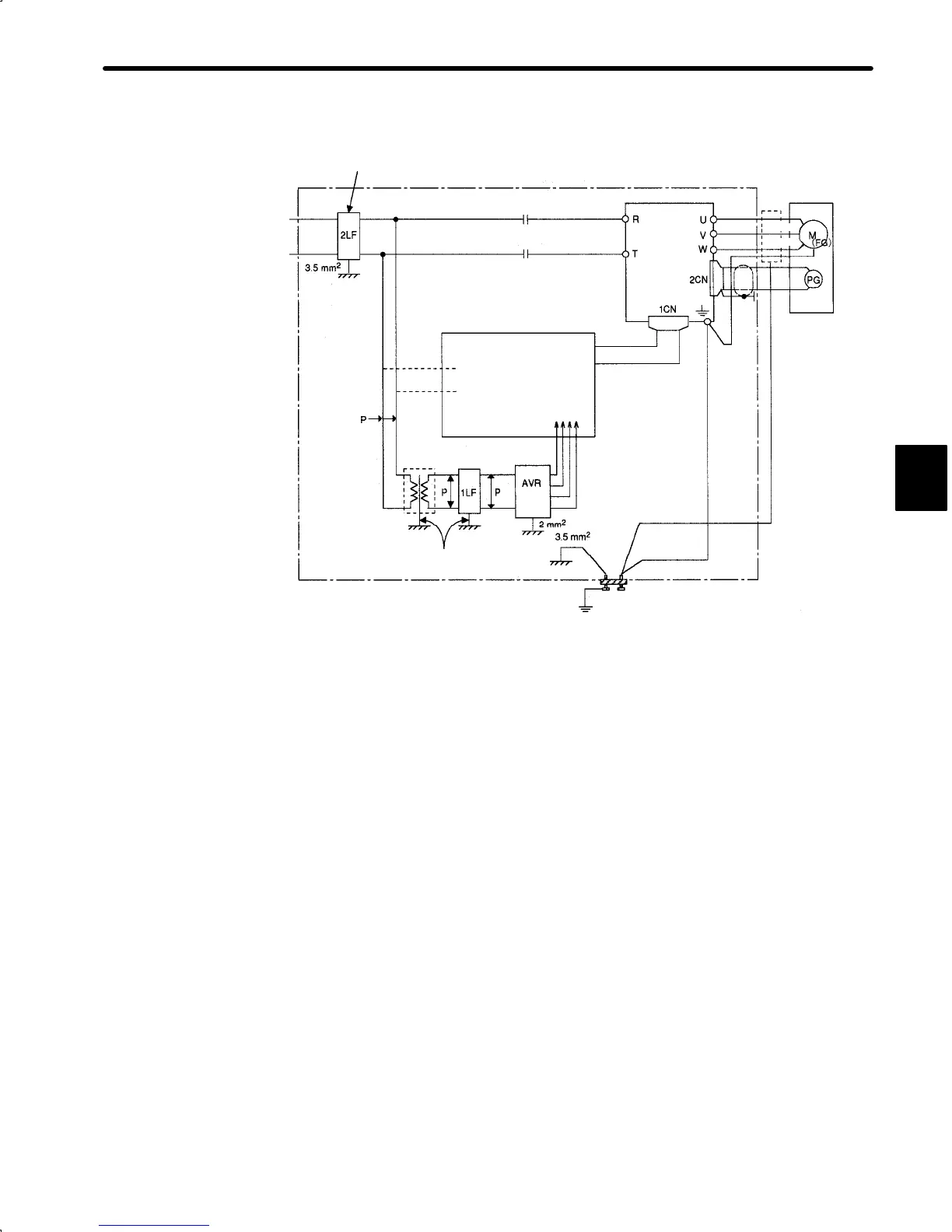

c) The following is an example of wiring for noise control.
Noise filter *
Servomotor
(Red)
(White)
(Blue)
(Green)
SGDA
Servopack
(Casing)
Operation relay se-
quence
Signal generation cir-
cuit (provided by cus-
tomer)
3.5 mm
2
or more
Wire with a thickness of
3.5 mm
2
or more
Ground plate
Ground: One-line grounding
(at least class 3 grounding)
(Casing)
(Casing)
(Casing)
(Casing)
3.5 mm
2
or more
100 or
200 VAC
* When using a noise filter, always observe the following wiring instructions:
Note a) For a ground wire to be connected to the casing, use a thick wire with a thick-
ness of at least 3.5 mm
2
(preferably, plain stitch cooper wire).
b) For wires indicated by P, use twisted-pair cables whenever possible.
2) Correct Grounding
Always ground the motor frame.
Always connect servomotor frame terminal FG (green) to the Servopack ground termi-
nal. Be sure to ground the ground terminal.
If the servomotor is grounded via the machine, a switching noise current will flow from
the Servopack power unit through motor stray capacitance. The above grounding is re-
quired to prevent the adverse effects of switching noise.
If the reference input line receives noise, do the following.
Ground the 0 V line (such as SG-V and SG-T) of the reference input line. If the main circuit
wiring for the motor is accommodated in a metal conduit, ground the conduit and its junc-
tion box. For all grounding, always use one-line grounding.
3
