SERVO SELECTION AND DATA SHEETS

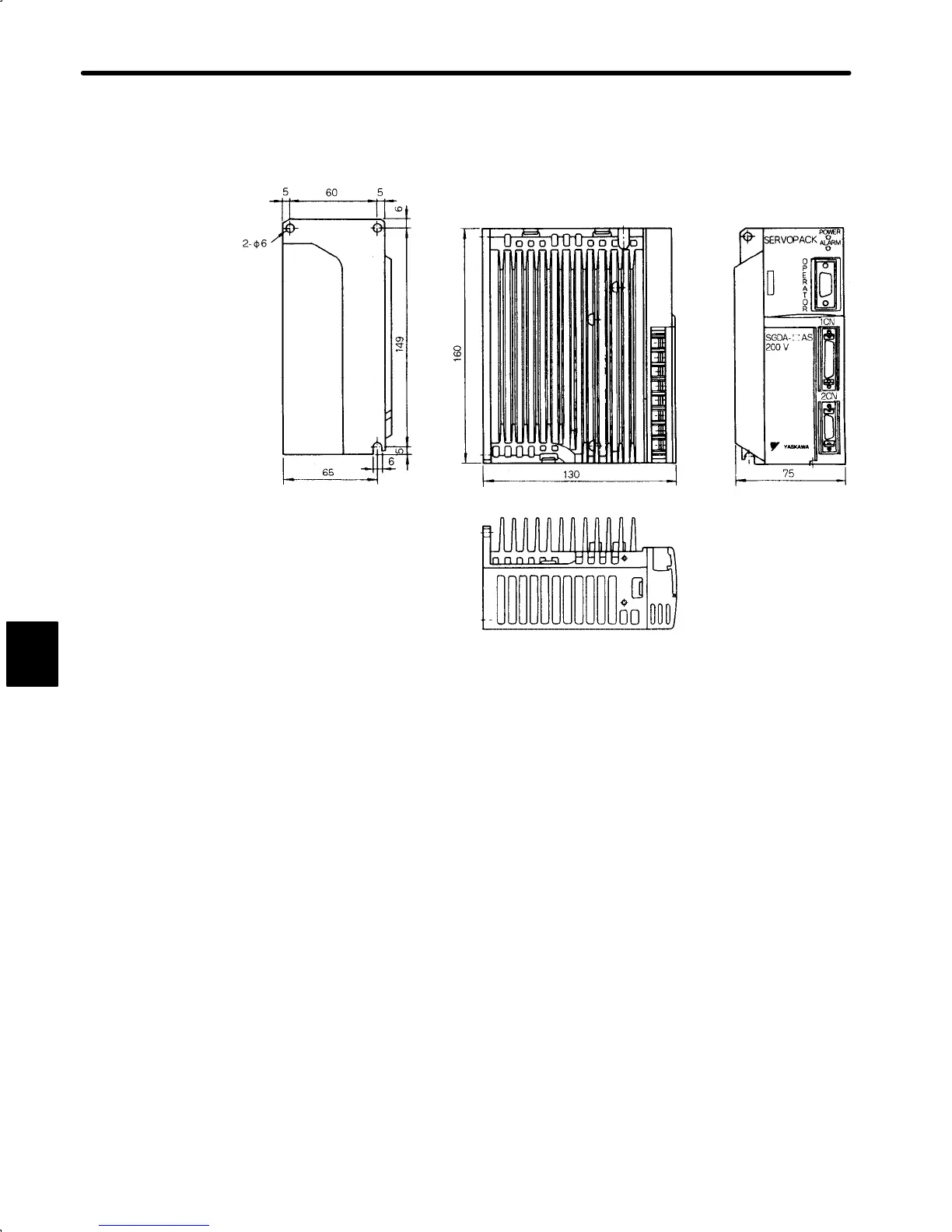

5.4.2Servopack Dimensional Drawings
290
(2) SGDA-04Aj (200V, 400W (0.53 HP))
SGDA-02Bj (100V, 200W (0.27 HP))
Approx. Mass: 1.2 kg (2.65 lb)
(0.20)
(2.36) (0.20)
(2-Φ0.24)
MTG
HOLES
(2.56) (0.24)
(0.20)
(5.87)
(6.30)
(5.12)
(0.24)
(2.96)
