APPLICATIONS OF Σ-SERIES PRODUCTS
3.8.4 Using Regenerative Unitscont.
146
4) Connecting a Regenerative Unit (JUSP−RG08 type)

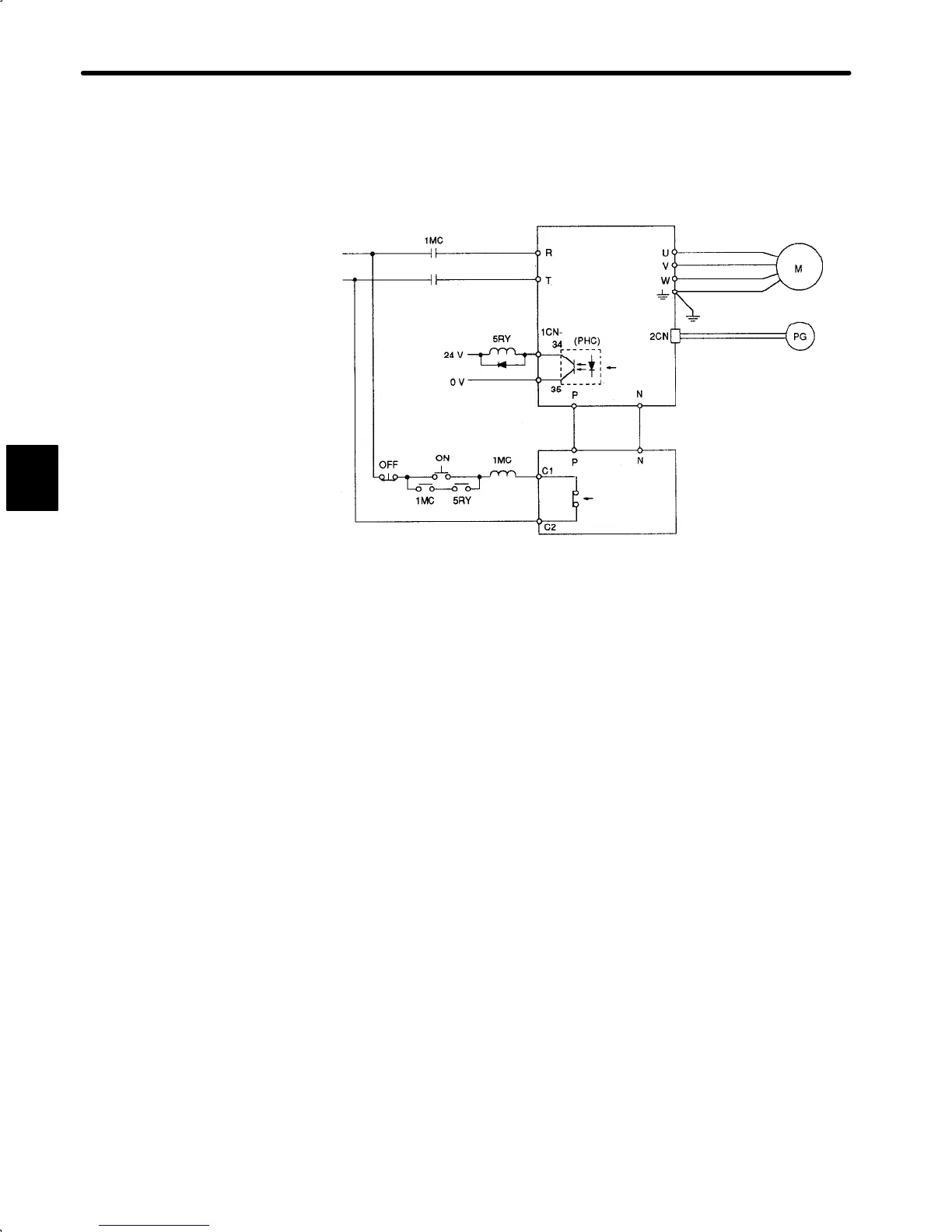

The standard connection diagram for a regenerative unit (JUSP−RG08) is shown below.
Single-phase
200-230 VAC or
100-115 VAC
Servopack
Alarm
Alarm
Regenerative unit
(JUSP−RG08)
Servomotor
a) A regenerative unit has the following fault detection functions:
• Detecting disconnection in a regenerative resistor
• Detecting faults in a regenerative transistor
• Detecting overvoltage
b) When one of these fault detection functions operates, the internal alarm relay is actu-
ated. Then, the circuit between output terminals C1 and C2 is opened.
c) Form a sequence so that the Servopack power is turned OFF when the alarm relay is
actuated.
