YASKAWA SGDA series User Manual

APPLICATIONS OF Σ-SERIES PRODUCTS
3.8.7 Using SGDA Servopack with High Voltage Linecont.
160

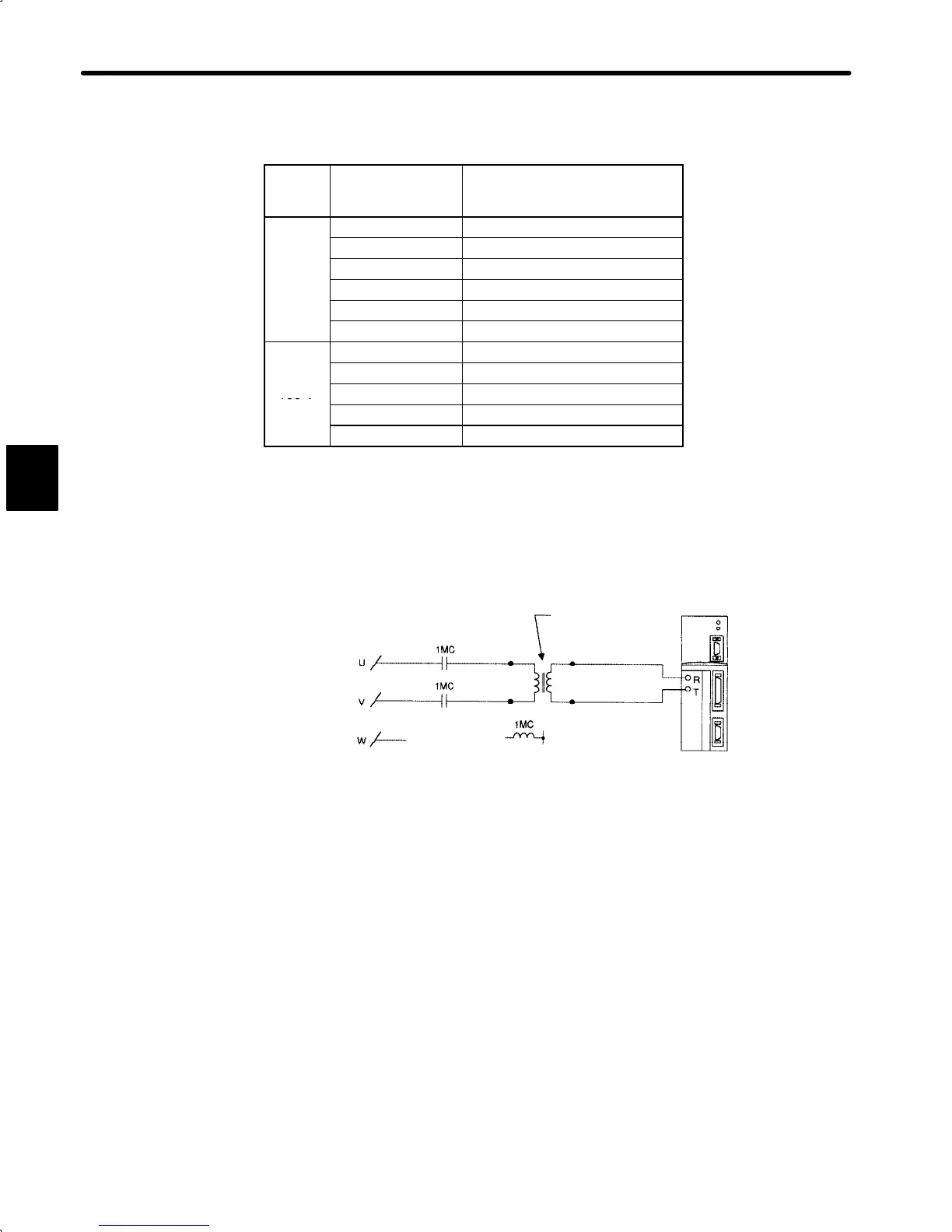

2) Select appropriate power transformer capacity according to the following table.
Supply
Voltage
Servopack Type
Power Supply Capacity Per
SGDA Servopack (kVA)
(see note)
SGDA-A3Aj
0.25
SGDA-A5Aj
0.3
200
V
SGDA-01Aj
0.5
200 V
SGDA-02Aj
0.75
SGDA-04Aj
1.2
SGDA-08Aj
2.2
SGDA-A3Bj
0.2
SGDA-A5Bj
0.3
100 V
SGDA-01Bj
0.5
100
V
SGDA-02Bj
0.75
SGDA-03Bj
1.4
Note At rated load.
3) When 400-V-class supply voltage is used, power must be turned ON and OFF on the pri-
mary side of the power transformer.
Three-phase
400 or 440 VAC
Power transformer
200 or 100 VAC
Magnetic contactor for
power ON/OFF
Servopack
3
