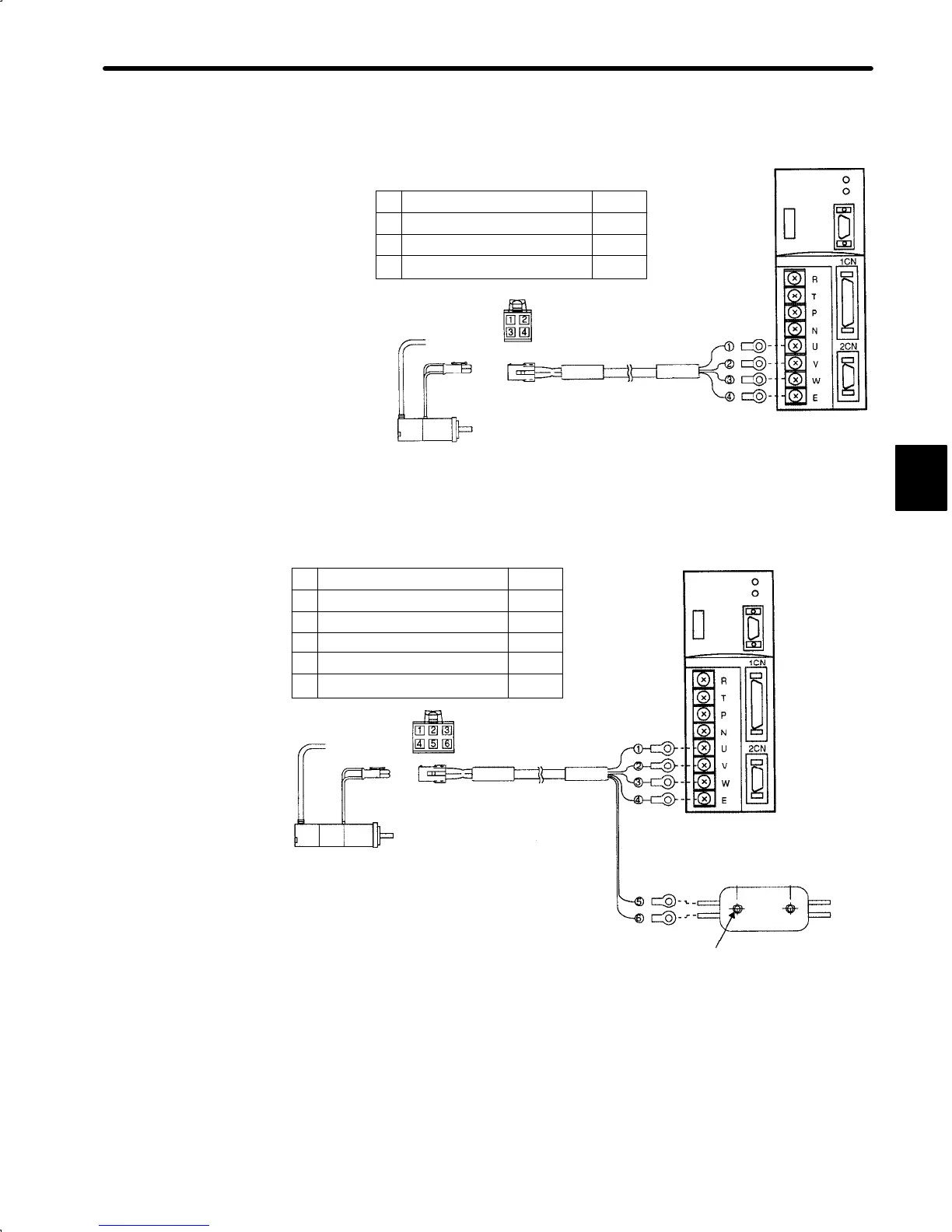

3.8 Special Wiring
165
5) Connectors and Terminals for Standard-type Motor without Brake
Cap: 172159-1
Socket: 170362-1 or
170366-1
M4 crimp terminal
Items to be Prepared by Customer
Round crimp terminal R1.25-4TOR
(manufactured by AMP.)
1 Phase U Red
2 Phase V White
3 Phase W Blue
4
Frame ground (FG)
Green
6) Connectors and Terminals for Motor with Brake
M4 crimp terminal
Items to be Prepared by Customer
Round crimp terminal R1.25-4TOR (manufactured
by AMP.)
(DC side)
Red
Black
AC input
Brake power supply (manufactured by
Yaskawa Controls Co., Ltd.)
100 VAC input: 90 VDC (LPDE-1H01)
200 VAC input: 90 VDC (LPSE-2H01)
1 Phase U Red
2 Phase V White
3 Phase W Blue
4
Frame ground (FG)
Green
5 Brake terminal Black
6 Brake terminal Black
Cap: 172160-1
Socket: 170362-1 or
170366-1
3
