USING THE DIGITAL OPERATOR
4.1.5 Operation in User Constant Setting Modecont.
178
8) Press
DATA
ENTER
once more to display the user
constant number again.
• Refer to Appendix D List of User Constant Settings.
For JUSP-OP03A
1) Press
MODE/SET
to select the user constant
setting mode.
2) Press the
UP
and
DOWN
keys to select the
user constant number to set.
3) Press
MODE/SET
to display the current data
for the memory switch selected at step 2.
4) Press the
UP
and
DOWN
keys to select the
bit number to set.
5) Press
MODE/SET
to set the memory switch
data ON or OFF for the bit number.
6) Repeat steps 4 and 5 as often as required.
7) Press
DATA
to store the data .
8) Press
DATA
once more to display the user
constant number again.
• Refer to Appendix D List of User Constant Settings

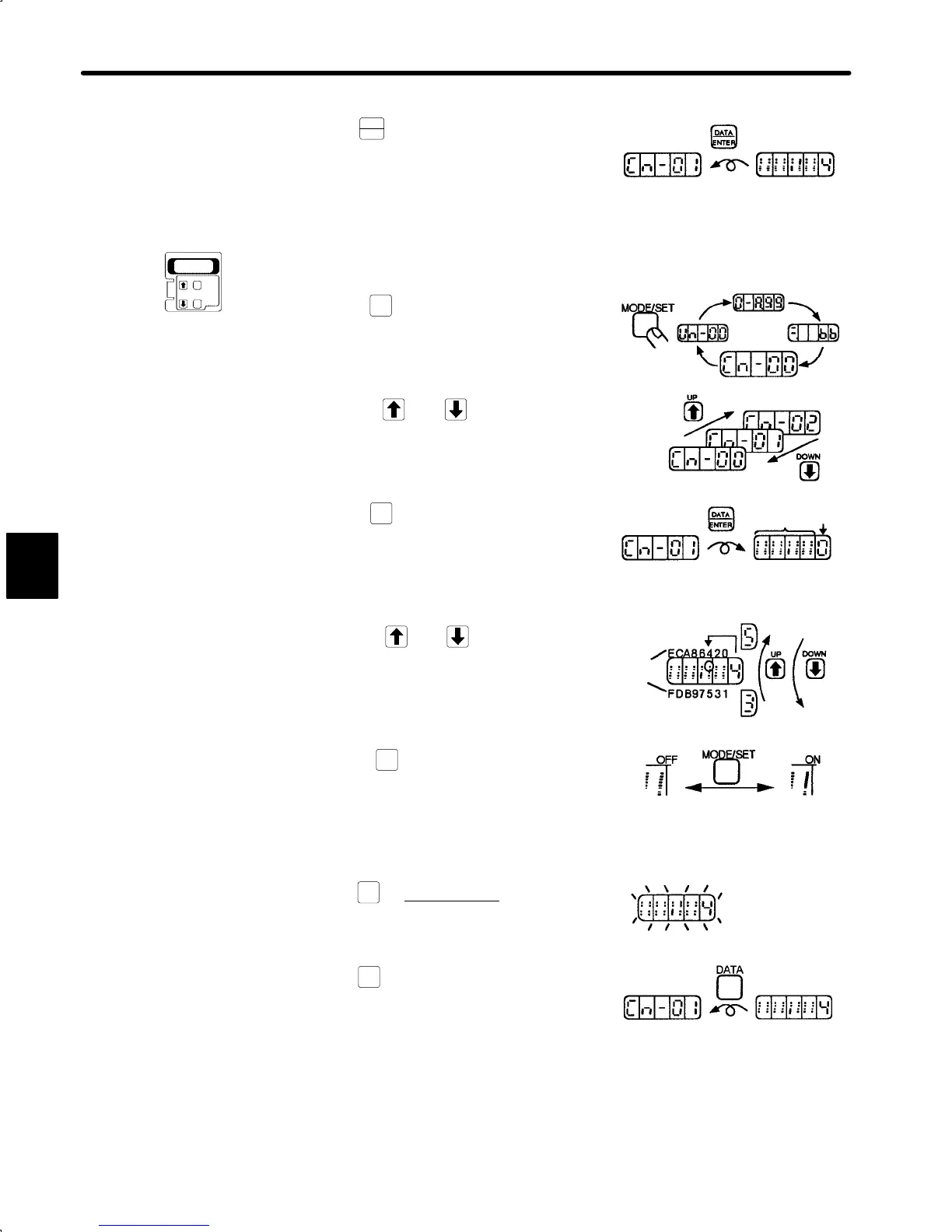

4
User Constant
Number
Memory
Switch Data
JUSP-OP03A
Setting
Mode
User Constant
Number
Memory
Switch Data
Bit
Number
to Set
Bit Number to Set
Bit
Number
The stored data
flashes.
User Constant
Number
Memory
Switch Data
