SERVO SELECTION AND DATA SHEETS

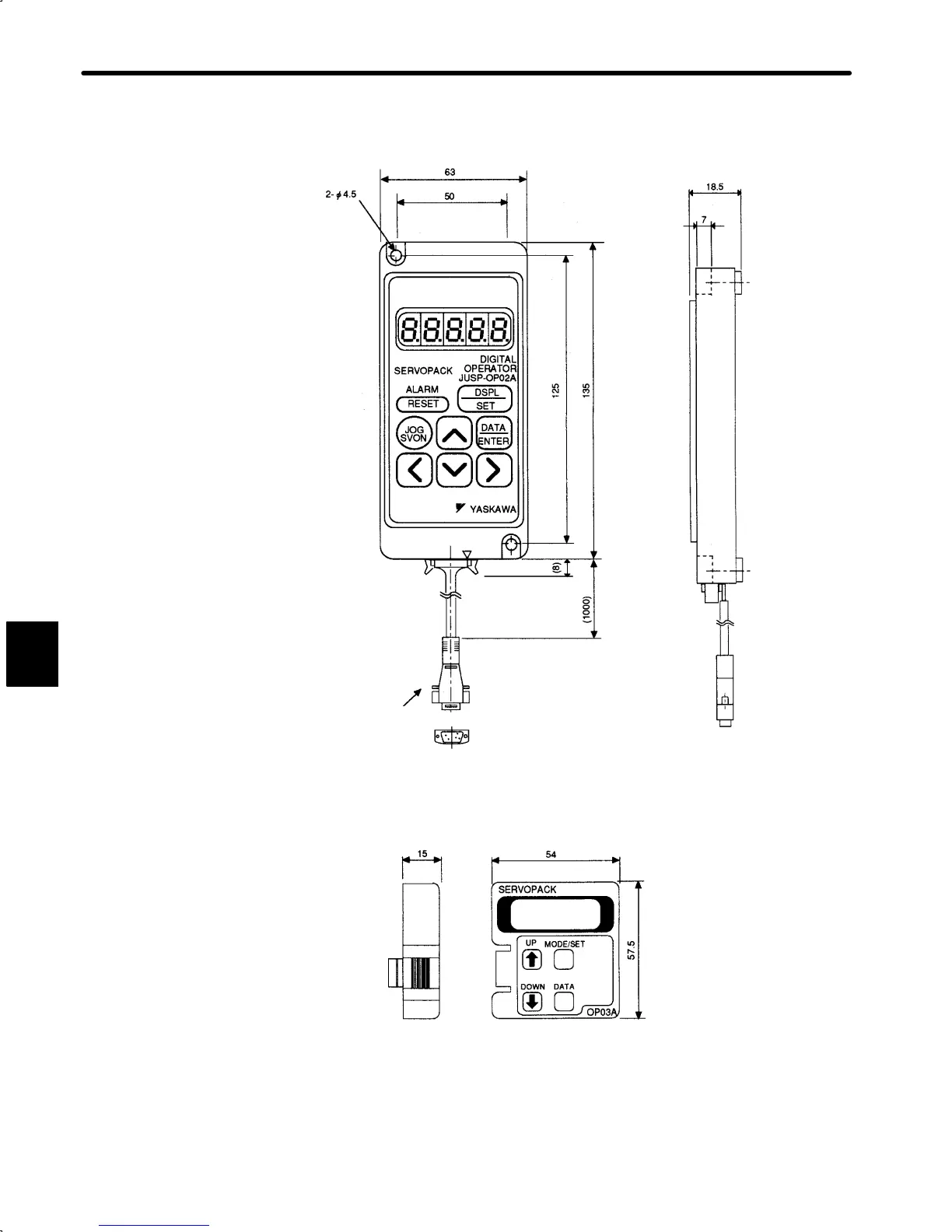

5.4.3 Dgital Operator Dimensional Drawings cont.
292
a) JUSP-OP02A-1
TYPE:17JE-23090-02
Made by
DAIICHI
DENSHI KOGYO K.K.
Approx. Mass: 0.18 kg (0.40 lb)
(2-0.18)
MTG HOLES
(4.92)
(2.48)
(1.97)
(5.31)
(0.31)
(39.37)
(0.73)
(0.28)
b) JUSP-OP03A
Approx. Mass: 0.02 kg (0.041lb)
(0.59)
(2.13)
(2.26)
5
