SERVO SELECTION AND DATA SHEETS
5.5.2 Order Listcont.
302

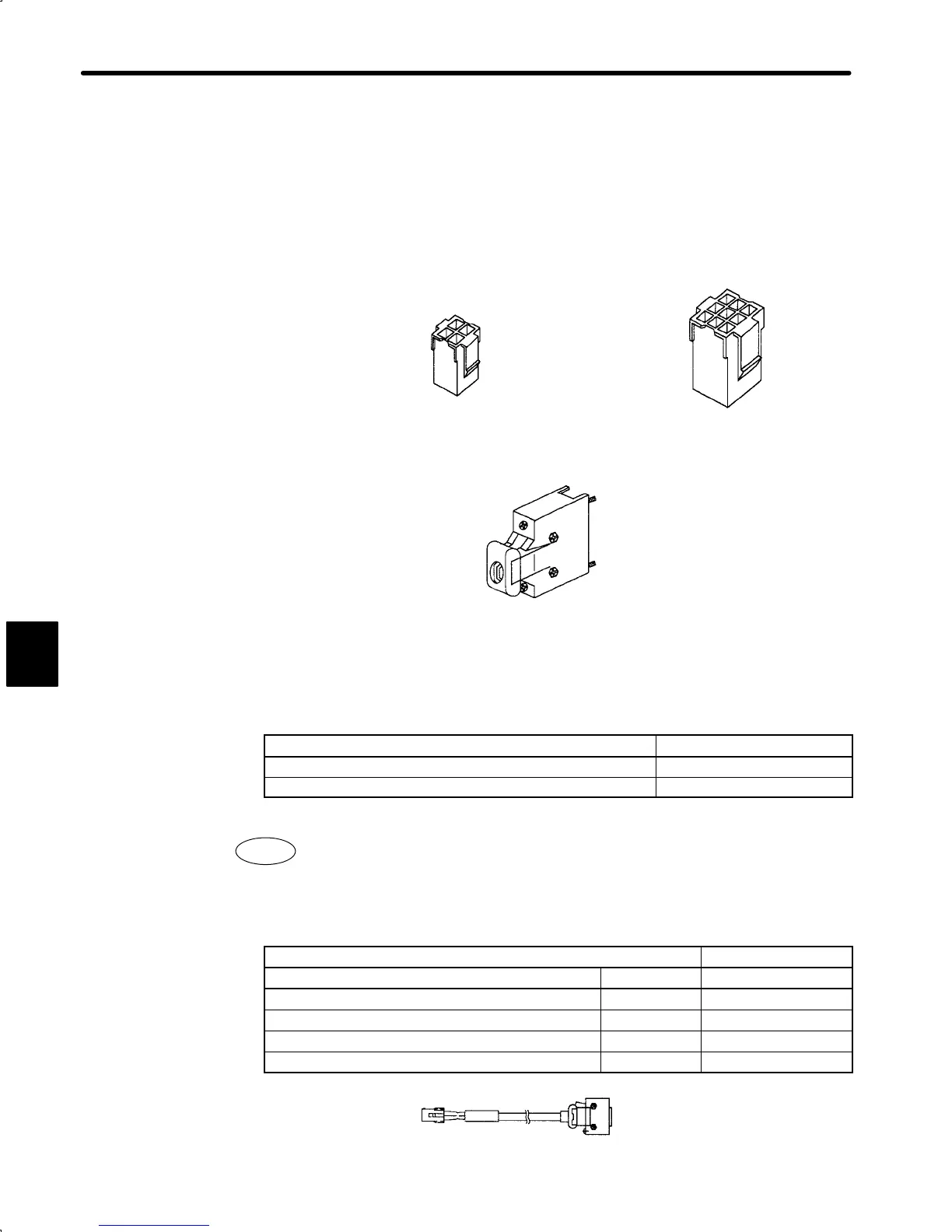

• The three products in the diagrams below are supplied as a set.
1) Motor Connector for Motor End of Cable ... one connector for Servomotor with or without
brake
2) Encoder Connector for Motor End of Cable ... one connector for incremental or absolute
encoder
3) Encoder Connector for Servopack End of Cable ... one 2CN connector
1) Motor Connector
for Motor End of Cable
No Brake
2) Encoder Connector for Motor End of Cable
For Incremental Encoder
3) Encoder Connector for Servopack End of Cable
Brake Power Supply (for motor with brake)
(Purchase Separately)
Brake Power Supply Type Qty
LPSE−2H01 (for 200 V)
LPDE−1H01 (for 100 V)
E1
Cables for Incremental Encoder
(Connector Both Ends) (Purchase Separately)
Cable Type Qty
DP9320089−1 3m (9.8 ft)
DP9320089−2 5m (16.4 ft)
DP9320089−3 10m (32.8 ft)
DP9320089−4 15m (49.2 ft)
DP9320089−5 20m (65.6 ft)
5
