YASKAWA SGDA series User Manual

SERVO SELECTION AND DATA SHEETS
5.6.2 Motor Cablescont.
312

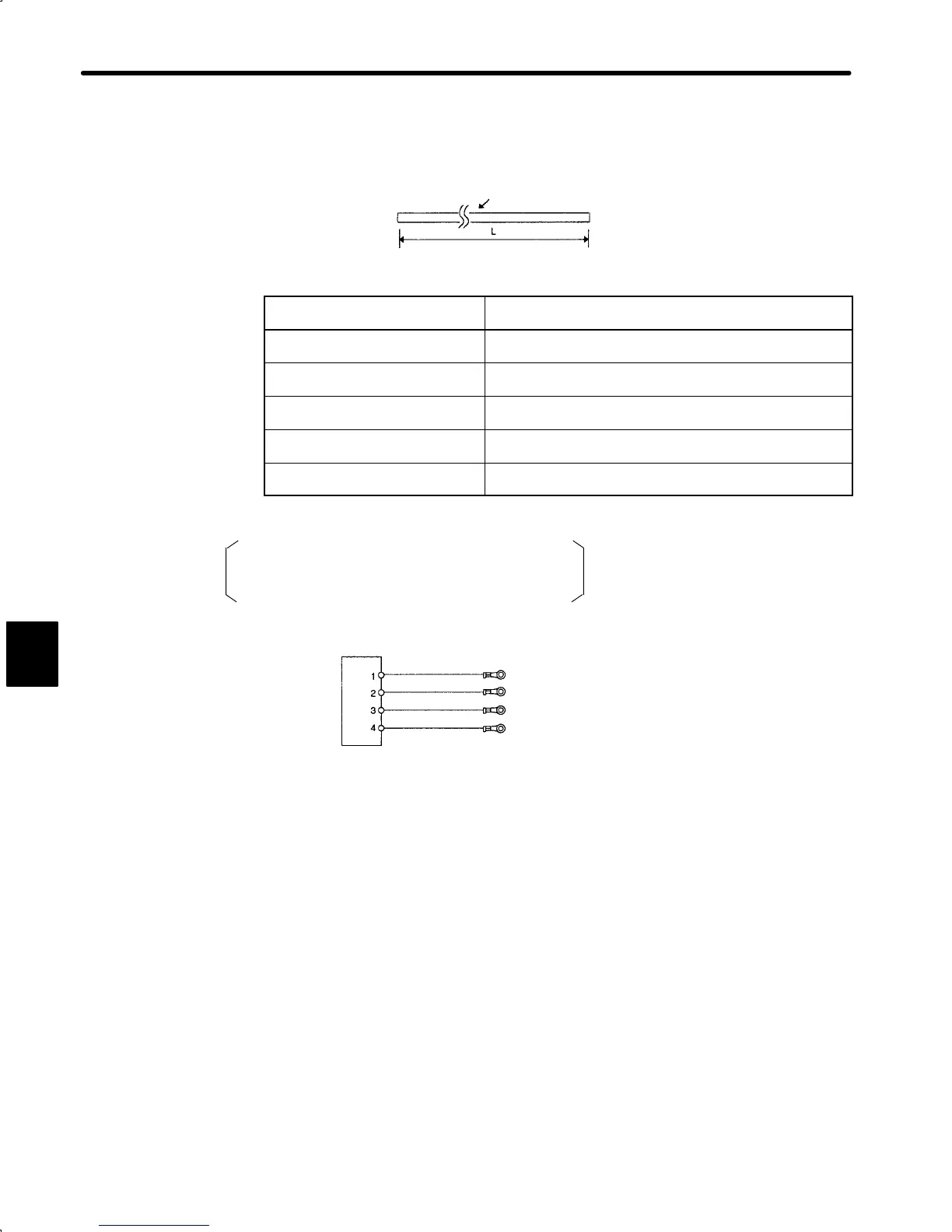

c) Cables For Motor Without Brake
(Cable Only)
Cable AWG20 x 4 core
Type L in mm (feet)
DP8409359-1
3000
+100
0
(10
+0.33
0
)
DP8409359-2
5000
+100
0
(16.7
+0.33
0
)
DP8409359-3
10000
+500
0
(33.3
+1.67
0
)
DP8409359-4
15000
+500
0
(50
+1.67
0
)
DP8409359-5
20000
+500
0
(66.7
+1.67
0
)
AMP Connector
Cap: 172159-1
Socket: 170362-1 or 170366-1 (Manufactured by AMP.)
Pin #
Red
White
Blue
Green
[ M4 Crimped Terminals ]
U phase
V phase
W phase
FG
*
*
5
