2.2 Installation
23
Installation method:

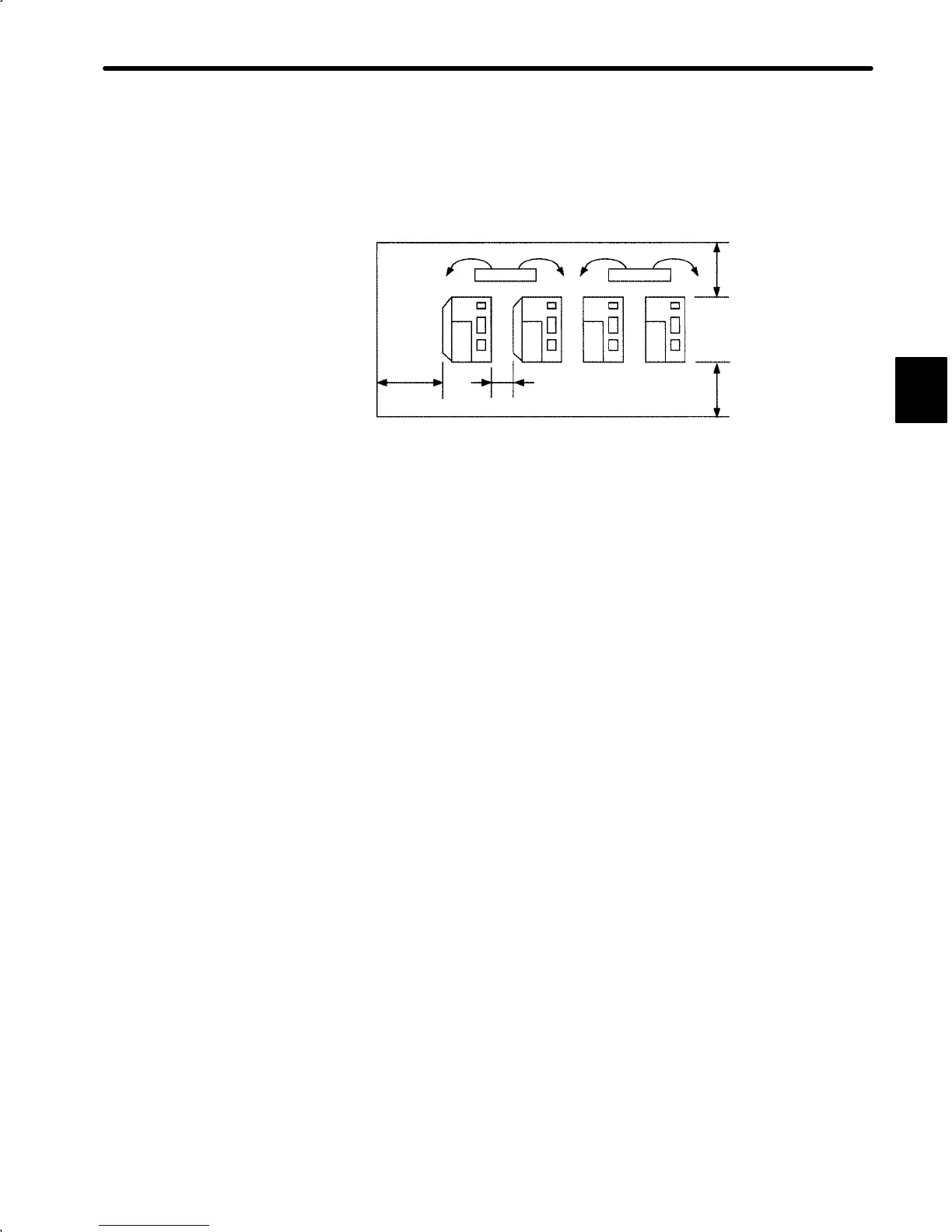

When installing multiple Servopacks side by side in a control panel, observe the following
installation method:
Fan
50 mm or more
Fin
30 mm or more 10 mm or more
Fan
50 mm or more
a) Install Servopack perpendicular to the wall so that the front panel (containing connec-
tors) faces outward.
b) Provide sufficient space around each Servopack to allow cooling by natural convec-
tion.
