SERVO SELECTION AND DATA SHEETS
5.6.17 Cables for Connecting PC and Servopackcont.
340

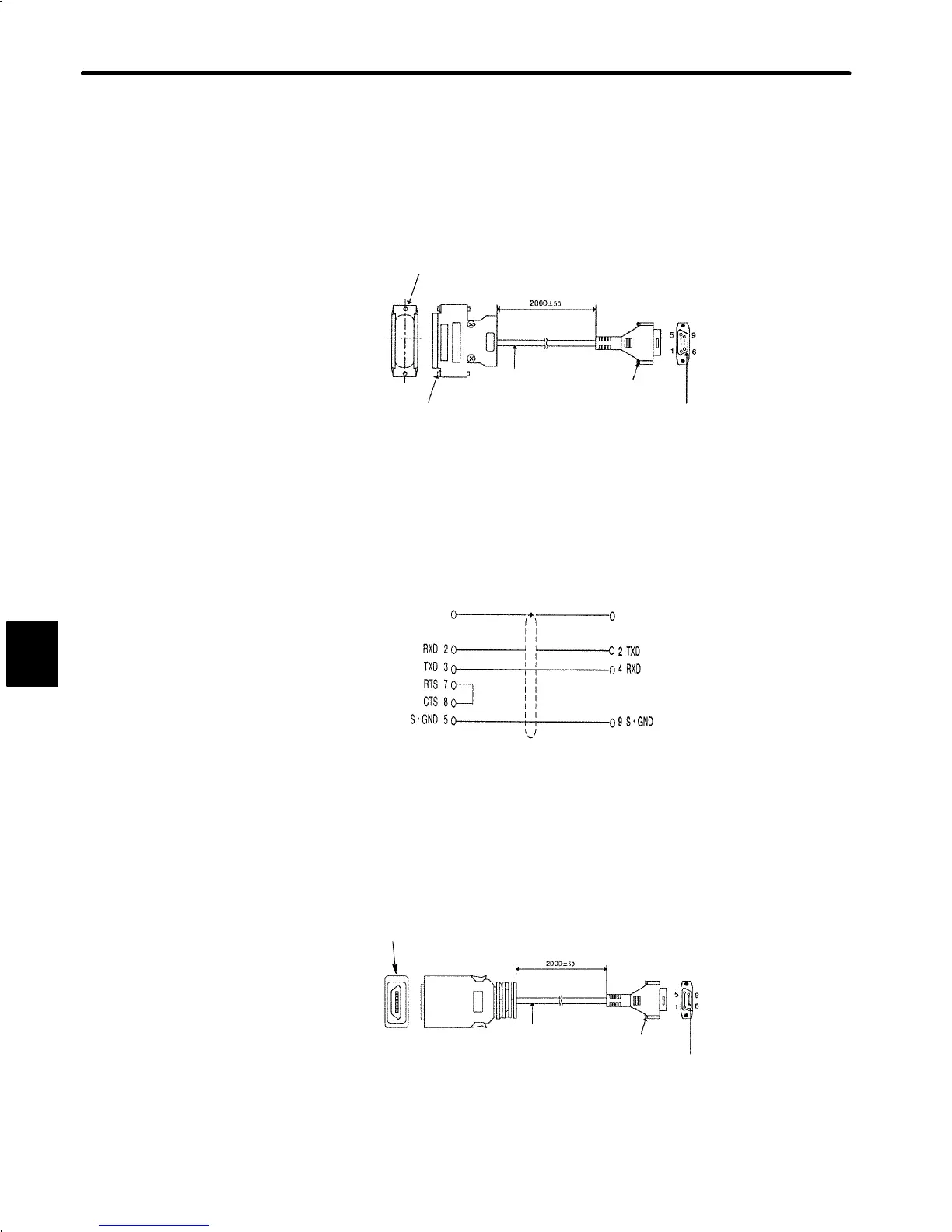

4) Cable for connecting Servopack and IBM PC (IBM compatible PC)
Use Yaskawa DE9408565 type cable.
•
Dimensional Drawings
D−sub Connector
17JE−13090−02(D8A)
2−M2.6 Screw
Pitch 0.45
Cable (Black)
UL2921
9−strand twisted
(0.16
×
7)
shielded cable
2−M3 Screw
Pitch 0.5
Pin Connector
17JE−23090−02(D1)
Note: Fold back the cable shielding at each end of the cable and secure it with clamp.
•
Connection
Personal Computer End
(D−sub 9−pin)
Servopack End
(D−sub 9−pin)
Clamp with Hood
Clamp with Hood
5) Cable for connecting Servopack and NEC PC−98 half−pithc connector
Use Yaskawa DE9408564 type cable.
•
Dimensional Drawings
2−M3 Screw
Pitch 0.5
Pin Connector
17JE−23090−02(D1)
Note: Fold back the cable shielding at each end of the cable and secure it with clamp.
Plug: 10114EL
Shell:10314−3210−000 (Made by 3M)
Cable (Black)
UL2921
9−strand twisted
(0.16
×
7)
shielded cable
5
To Next Page
