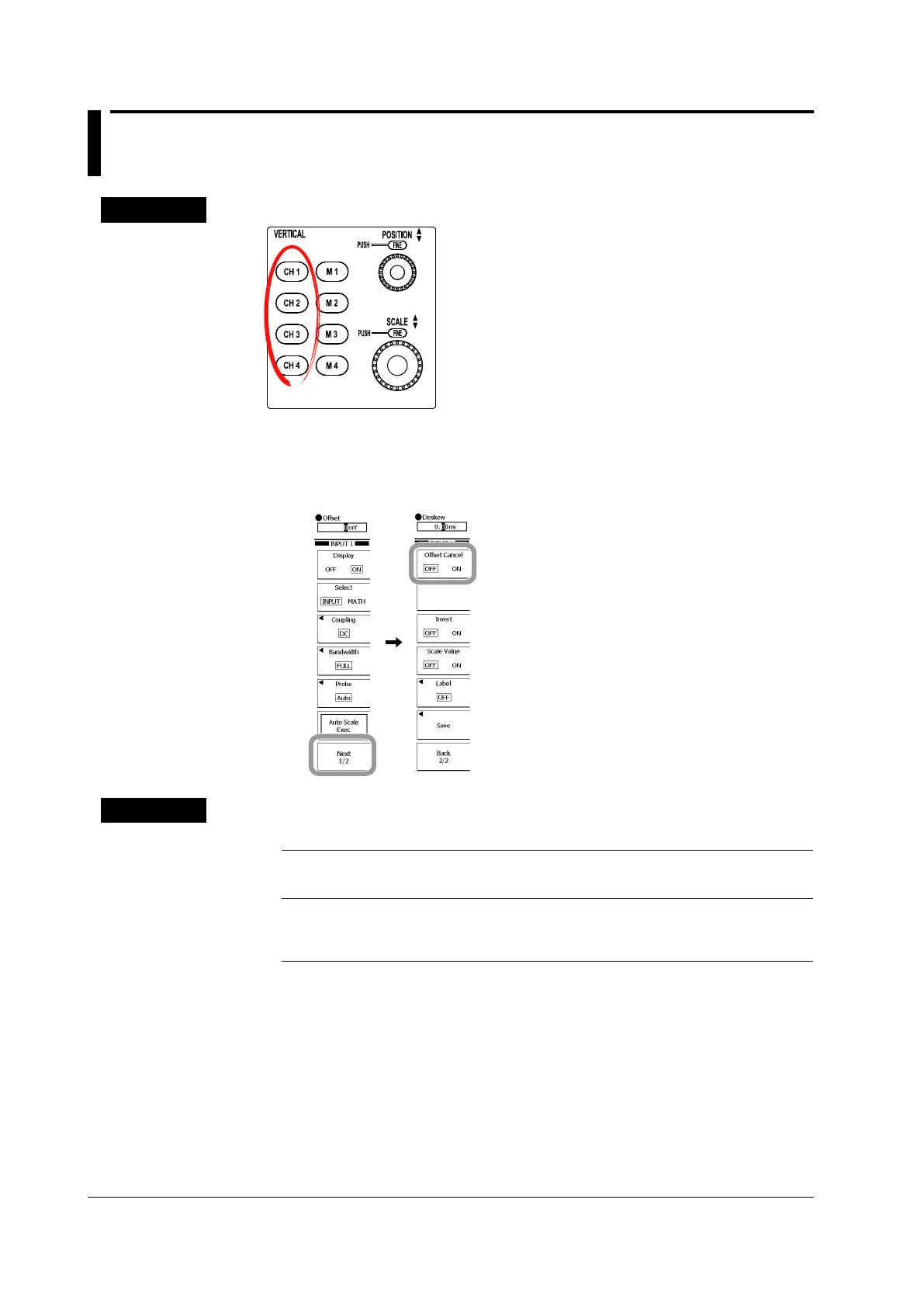

5.10 Canceling the Offset Value
Procedure
1.
Press one of the CH1 to CH4 keys to select the channel.
2.
Press the Next 1/2 soft key.
3.
Press the Offset Cancel soft key to select ON or OFF.
Explanation
Offset cancel can be set to ON or OFF for each channel. The default setting is OFF.
OFF The offset value is not applied to computations and the results of automated measurements.
The waveform is observed without subtracting the offset voltage (DC voltage) from the
input signal. The vertical position of the screen corresponds to the offset voltage.
ON The offset value is applied to computations and the results of automated measurements.
The offset value specified for each channel can be used to subtract an unneeded offset
voltage (DC voltage) from the input signal for waveform observation. The vertical position
is set to 0 V
