8.2 Changing the Display Format

Procedure

CURSOR

PARAM

TELECOM

TEST

WINDOW 1

WINDOW 2

FORM

ACCUM

CLEAR

ZOOM 1

ZOOM 2

DISP

MAG

INTENSITY

MEASURE

ANALYSIS

DISPLAY ZOOM

ACCUM

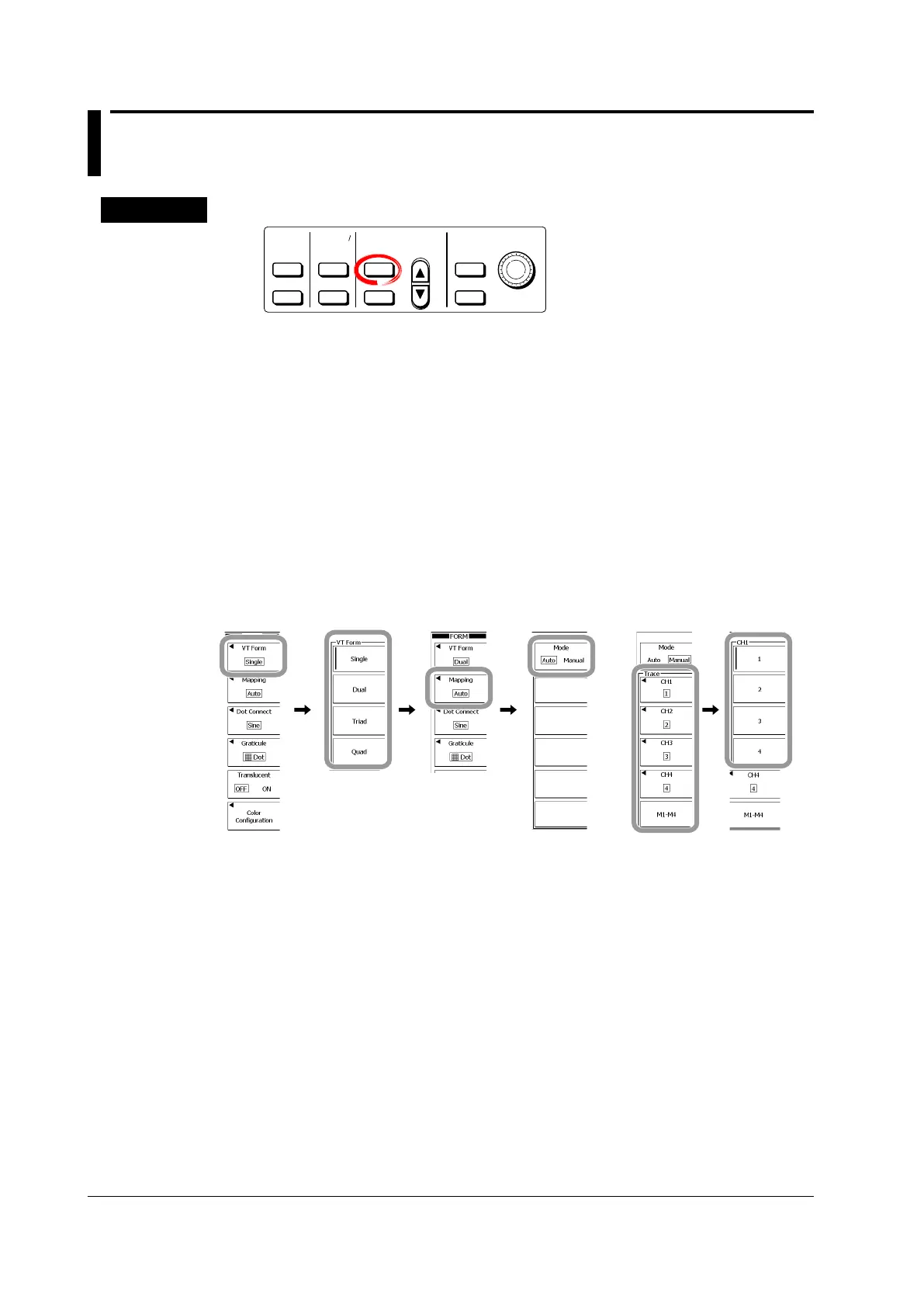

Setting the Display Format

Press FORM.

Press the VT Form soft key.

Press the appropriate soft key from Single to Quad to select the format.

Setting the Waveform Mapping

Press the Mapping soft key.

Press the Mode soft key to select Auto or Manual.

If you select Manual, proceed to the next step.

Press the appropriate waveform soft key.

To select a channel from M1 to M4, press the

M1-M4

soft key first.

Select the mapping destination from 1 to 4.

When Mapping is set to Manual
