YOKOGAWA DL9000 Series User Manual

10-29
IM 701310-01E
Analysis and Search
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
App
Index

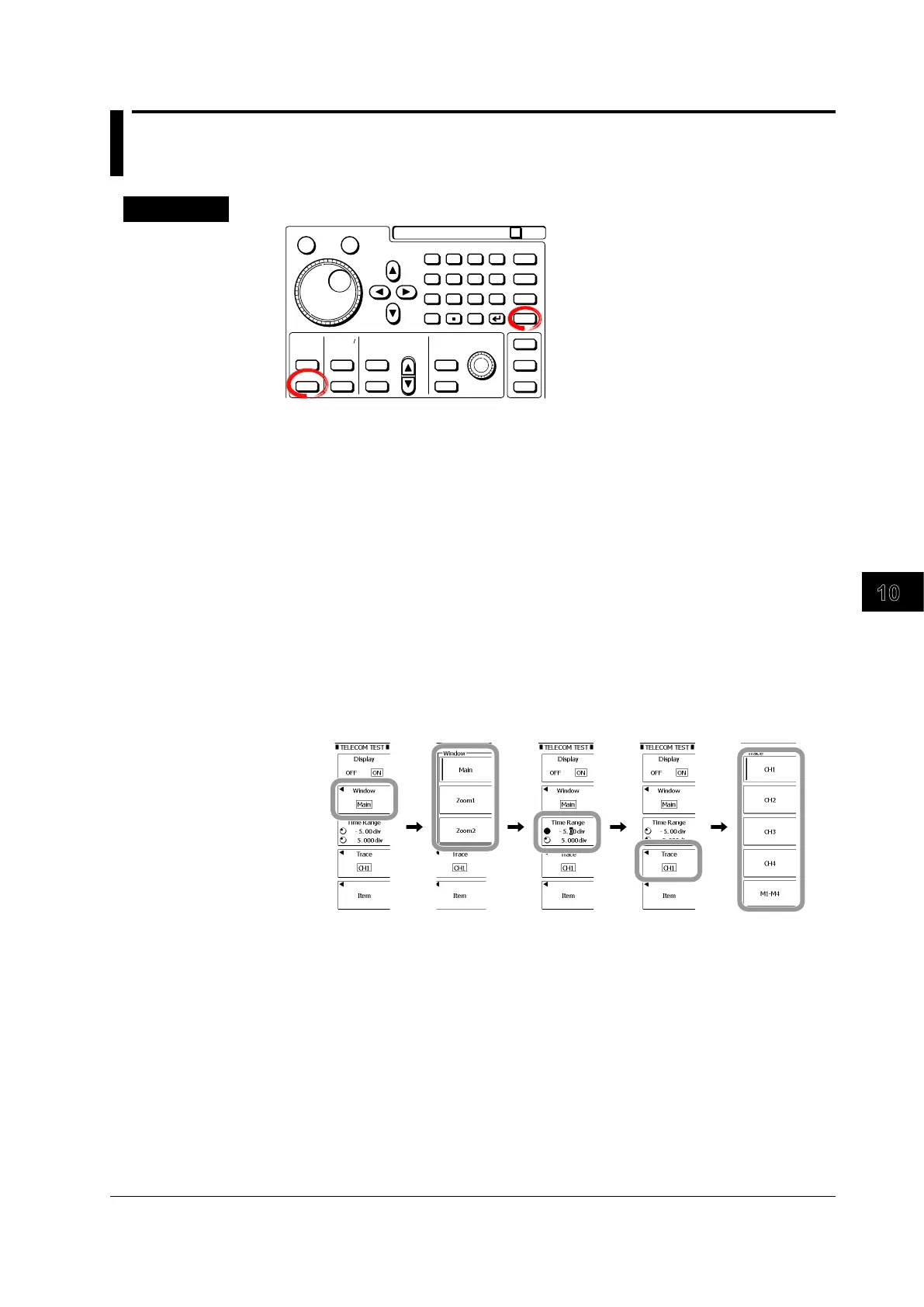

10.4 Performing a Telecom Test (Mask Test and Eye
Pattern Measurement)
Procedure
RESET SET
7 8 9 BS
PRINT
FILE
SHIFT
SYSTEM
EXP
CLEAR
M
MENU
D E F X
k m
u n p
4 5 6
1 2 3
0
+/-
CA B
CURSOR
PARAM
TELECOM TEST
WINDOW 1
WINDOW 2
FORM
ACCUM CLEAR
ZOOM 1
ZOOM 2
DISP 2 HISTORY CLEAR
DISP
1
MAG
INTENSITY
SETUP
HELP
HISTORY
MEASURE ANALYSIS
XY
DISPLAY ZOOM
ACCUM
1.
Press SHIFT+PARAM (TELECOM TEST).
The TELECOM TEST menu appears.
If measurement items are already set, their measured values will appear.
Setting the Window, Time Range, and Source Waveform
2.
Press the Window soft key.
3.
Press a soft key from Main to Zoom2 to select the window.
4.
Press the Time Range soft key.
5.
Use the rotary knob to set the time range start point (T1) and end point (T2).
Press the soft key to select the point that you want to set using the rotary knob.
6.
Press the Trace soft key.
7.
Press the appropriate waveform soft key.
To select a channel from M1 to M4, press the
M1-M4
soft key first.
8.
Press ESC to return to the previous screen.
