9.7 Smoothing Waveforms (Using a Moving

Average)

Procedure

Carry out steps 1 to 5 in section 9.1 to set the operator to Filter.

Setting the Operation

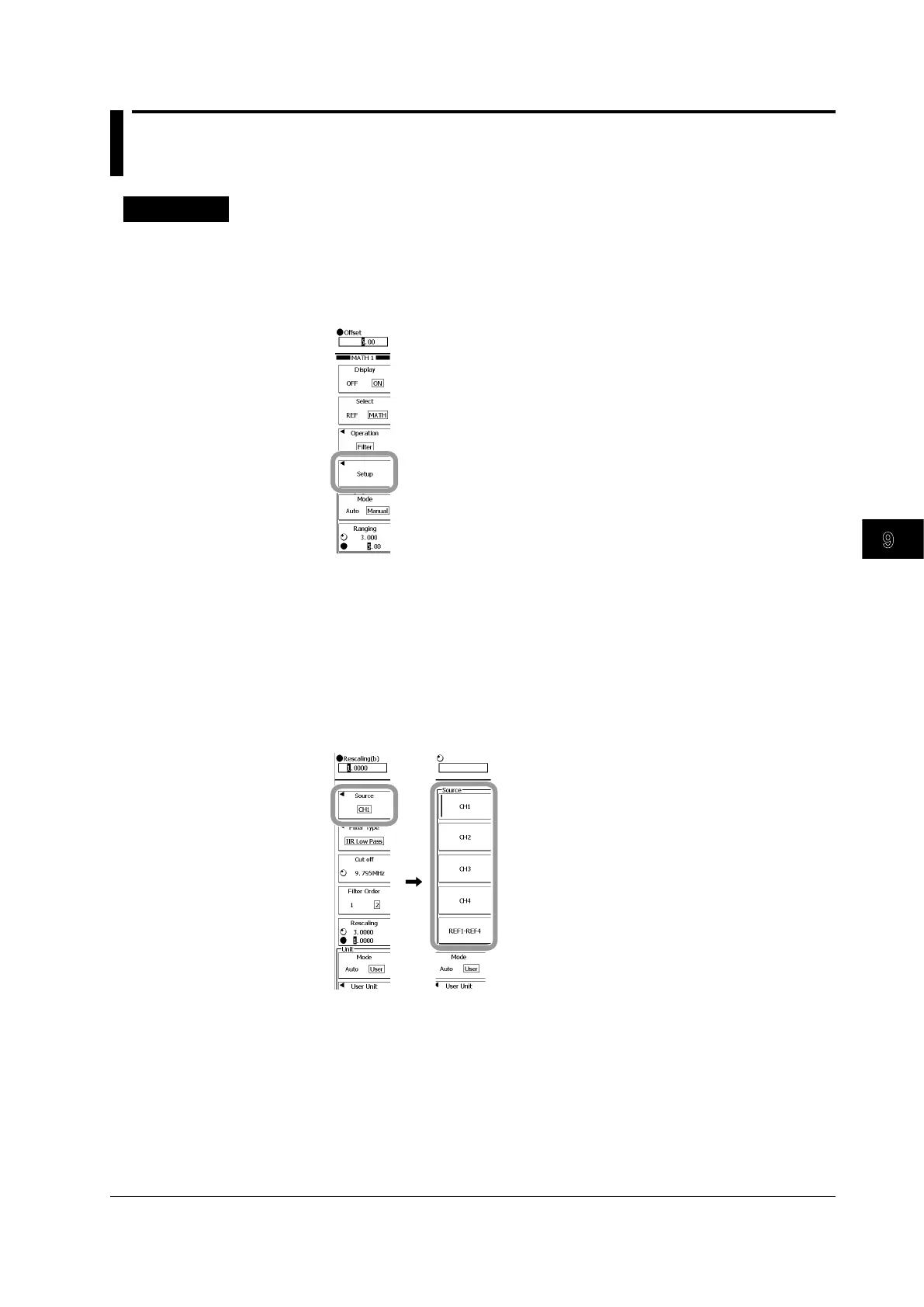

Press the Setup soft key.

Selecting the Source Waveform

Press the Source soft key. A menu used to select the waveform to be computed

appears.

When CH1 to CH4 on the front panel are set, the waveform to be computed is fixed to the

channel that is set. A menu used to select the waveform to be computed don’t appears.

Proceed to step 8.

Press the soft key corresponding to the source waveform.

To select REF1 to REF4, first switch to REF1-REF4 by pressing the corresponding soft key.
