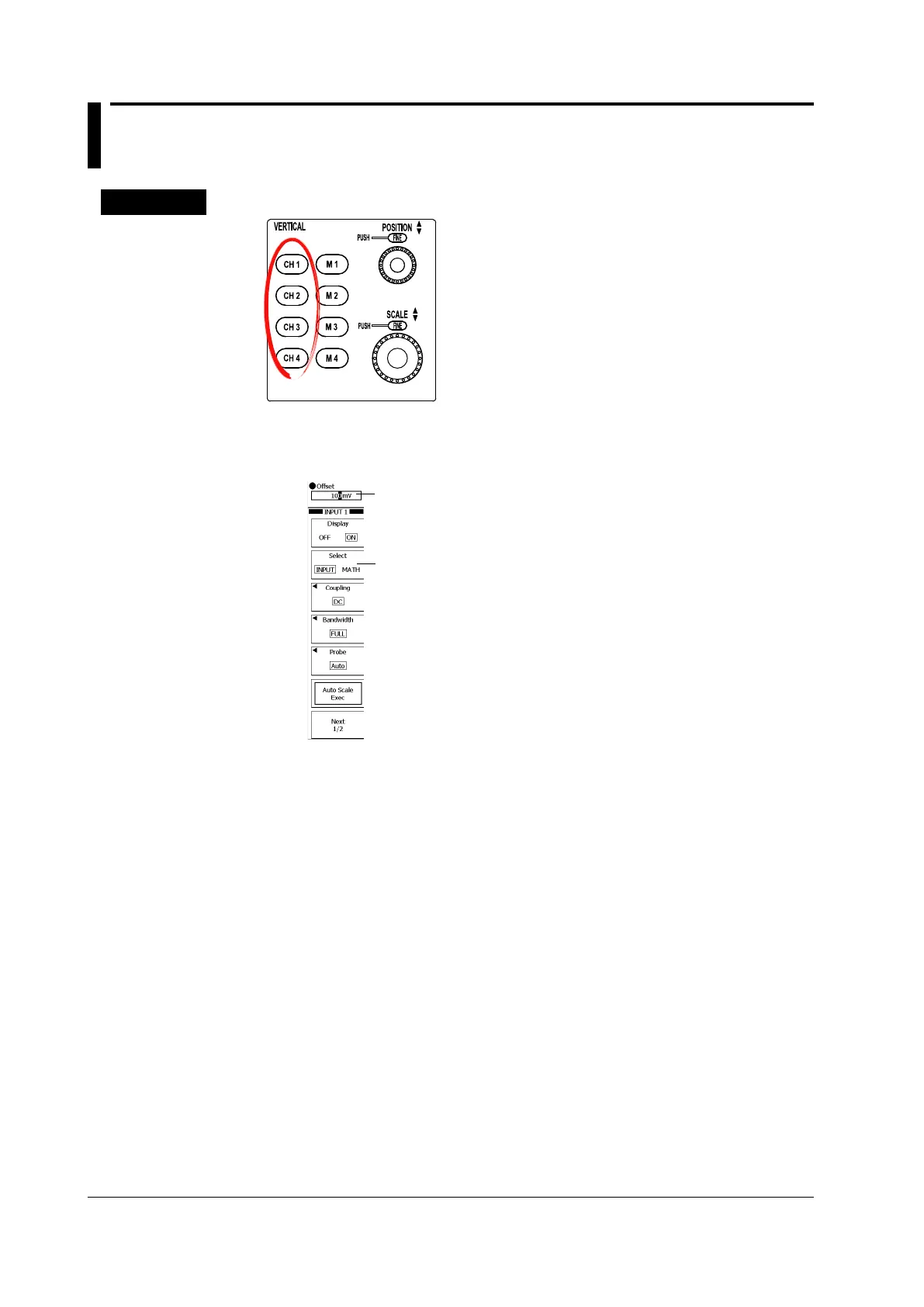

5.2 Setting the Offset Voltage

Procedure

Press one of the CH1 to CH4 keys to select the channel.

Use the rotary knob to set the offset value.

Offset value

This option should be set to INPUT.

Default Chapter5
