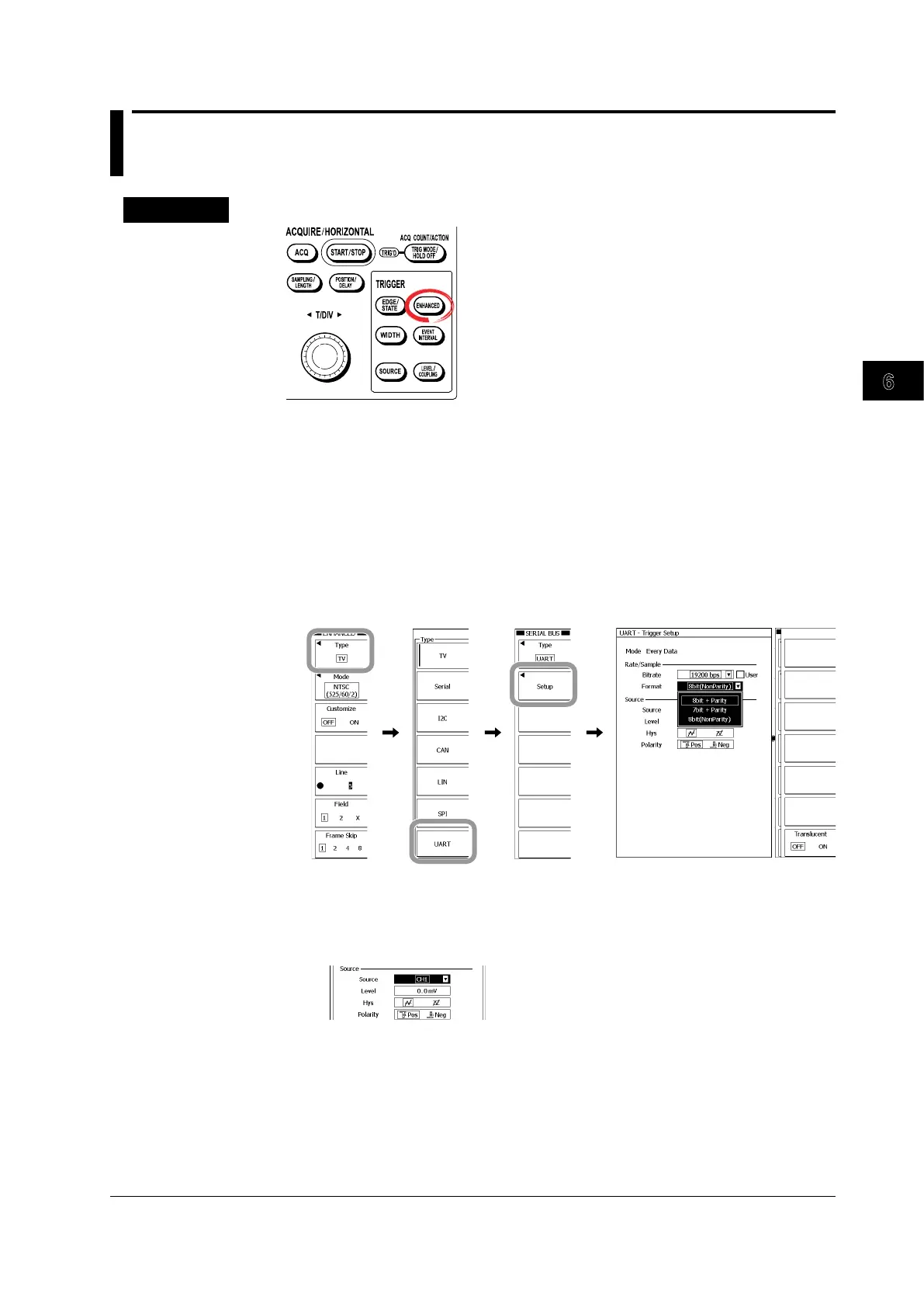

6.19 Triggering on a UART Signal

Procedure

Press ENHANCED.

Press these soft keys: Type > UART > Setup.

The Setup dialog box appears.

Setting the Bit Rate and Format

Use the rotary knob and SET to select the bit rate from 115200bps to 1200bps.

If you select the

User

check box, you will be able to set the bit rate from 1000bps to

200000bps using the rotary knob and SET.

Use the rotary knob and SET to select the format from 8bit + Parity to

8bit(NonParity).

Setting the Trigger Level, Hysteresis, and Polarity

Use the rotary knob and SET to select the source from CH1 to CH4.

Use the rotary knob and SET to set the level, hysteresis, and polarity.
