YOKOGAWA DL9000 Series User Manual

Making Preparations for Measurements
3-5
IM 701310-01E
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
App
Index

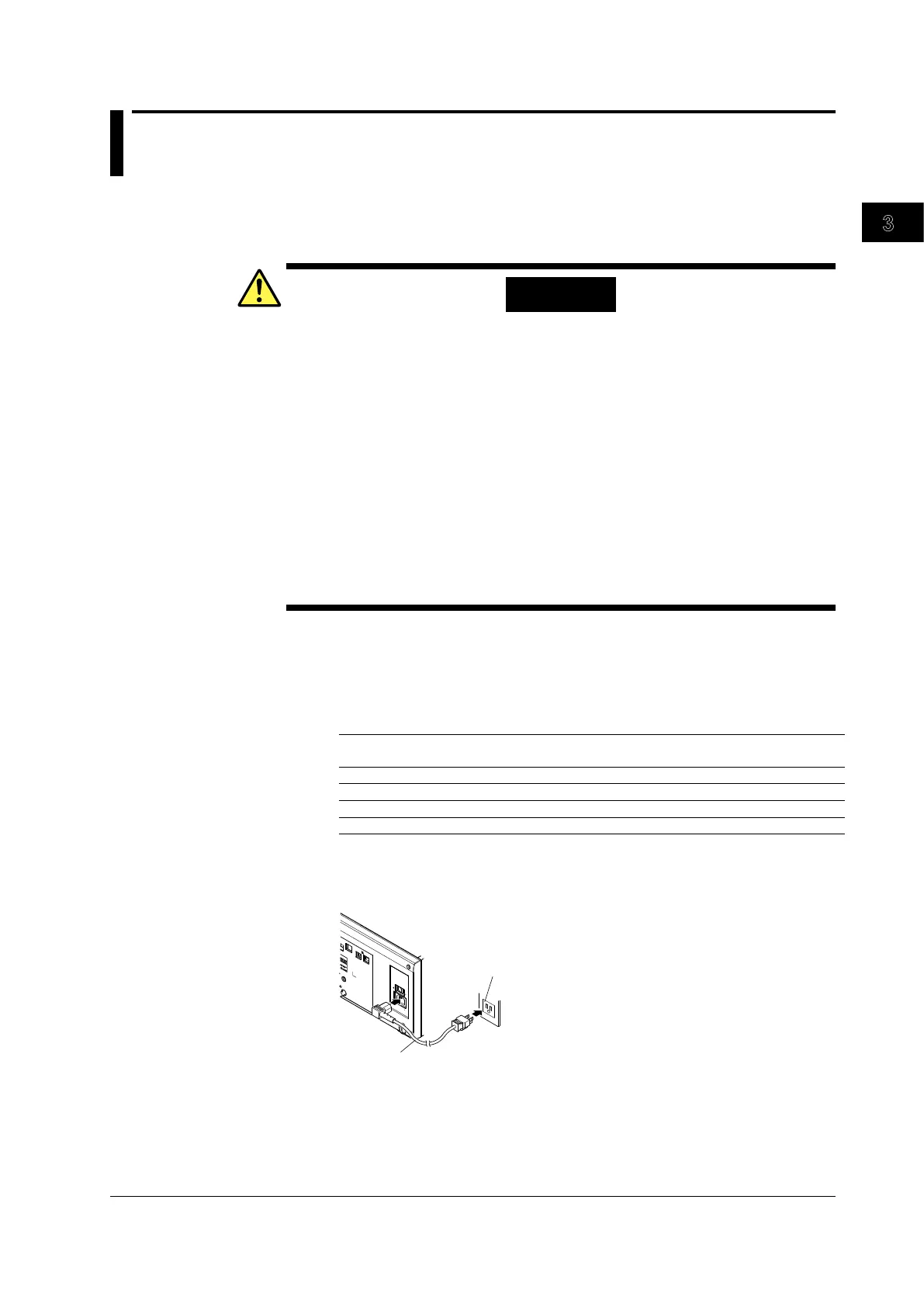

3.3 Connecting the Power
Before Connecting the Power
Make sure that you observe the following points before connecting the power. Failure to
do so may cause electric shock or damage to the instrument.
WARNING
● Beforeconnectingthepowercord,ensurethatthesourcevoltagematchesthe
rated supply voltage of the instrument and that it is within the maximum rated
voltage of the provided power cord.
● CheckthatboththemainpowerswitchandpowerswitchoftheDL9000areoff
before connection the power cord.
● Topreventthepossibilityofelectricshockorfire,besuretousethepowercord
for the instrument that was supplied by YOKOGAWA.
● Makesuretoperformprotectiveearthgroundingtopreventelectricshock.
Connect the power cord to a three-prong power outlet with a protective earth
terminal.
● Donotuseanextensioncordwithoutaprotectiveearthground.Otherwise,the
protection function will be compromised.
● IfanAC
outletthatconformstotheaccessorypowercordisunavailableand
protective grounding cannot be furnished, do not use the instrument.
Connecting the Power Cord
1.
Check that both the main power switch and power switch of the DL9000 are off.
2.
Connect the power cord plug to the power connector on the rear panel.
3.
Connect the other end of the cord to an outlet that meets the conditions below.
Use the three-prong power outlet equipped with a protective earth terminal.
Rated supply voltage* 100 to 120 VAC/220 to 240 VAC (automatic
switching)
Permitted supply voltage range 90 to 132 VAC/198 to 264 VAC
Rated supply voltage frequency 50/60 Hz
Permitted supply voltage frequency range 48 to 63 Hz
Maximum power consumption Max. approx. 300 VA
* The DL9000 can use a 100-V or a 200-V system for the power supply
. The maximum
rated voltage dif
fers according to the type of power cord. Check that the voltage
supplied to the DL9000 is less than or equal to the maximum rated voltage of the
provided power cord (see page iii) before using it.
3-prong outlet
Power cord
(included)
100BASE-TX
ETHER NET
ACT
LINK
USB
GO/NOGO
)
12
V
DC
TRIG OUT
MAIN POWER
OFF
ON
100 - 120/220 - 240 V AC
300 VA MAX 50/60 Hz
