18-12

IM 701310-01E

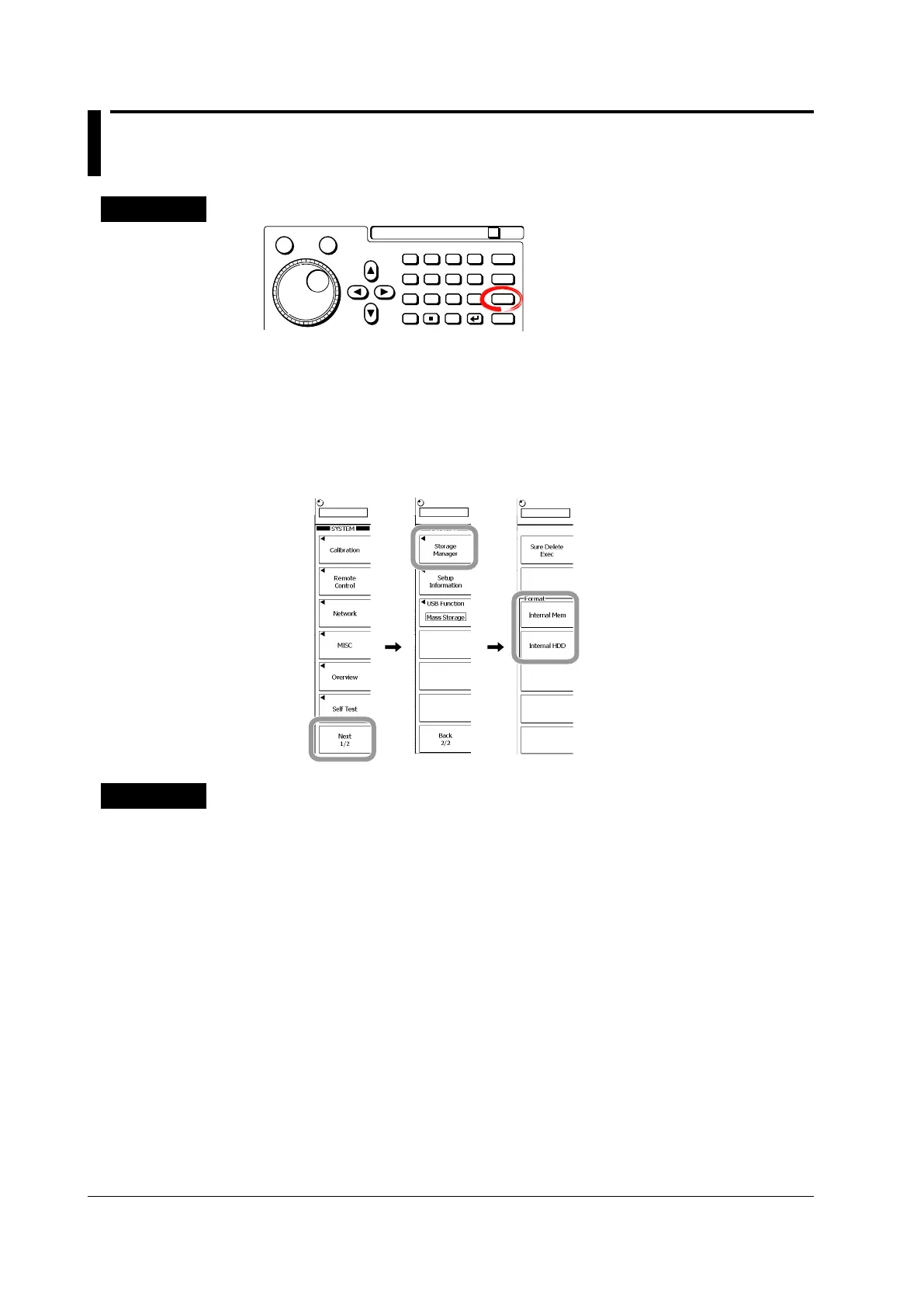

18.6 Formatting Internal Memory and Built-in Hard

Disk

Procedure

RESET

SET

7 8 9

FILE

SHIFT

SYSTEM

EXP

CLEAR

D E F X

k m

u n p

4 5 6

1 2 3

+/-

CA B

Press SYSTEM.

Press these soft keys: Next 1/2 > Storage Manager.

Press the Internal Mem or Internal HDD soft key.

A message to confirm formatting appears.

Use the rotary knob and SET to select OK or Cancel.

If you select OK, the internal memory or built-in hard disk is formatted.

Explanation

This formats the internal memory or built-in hard disk. Save required data on a PC card

or other media.
