17-4

IM 701310-01E

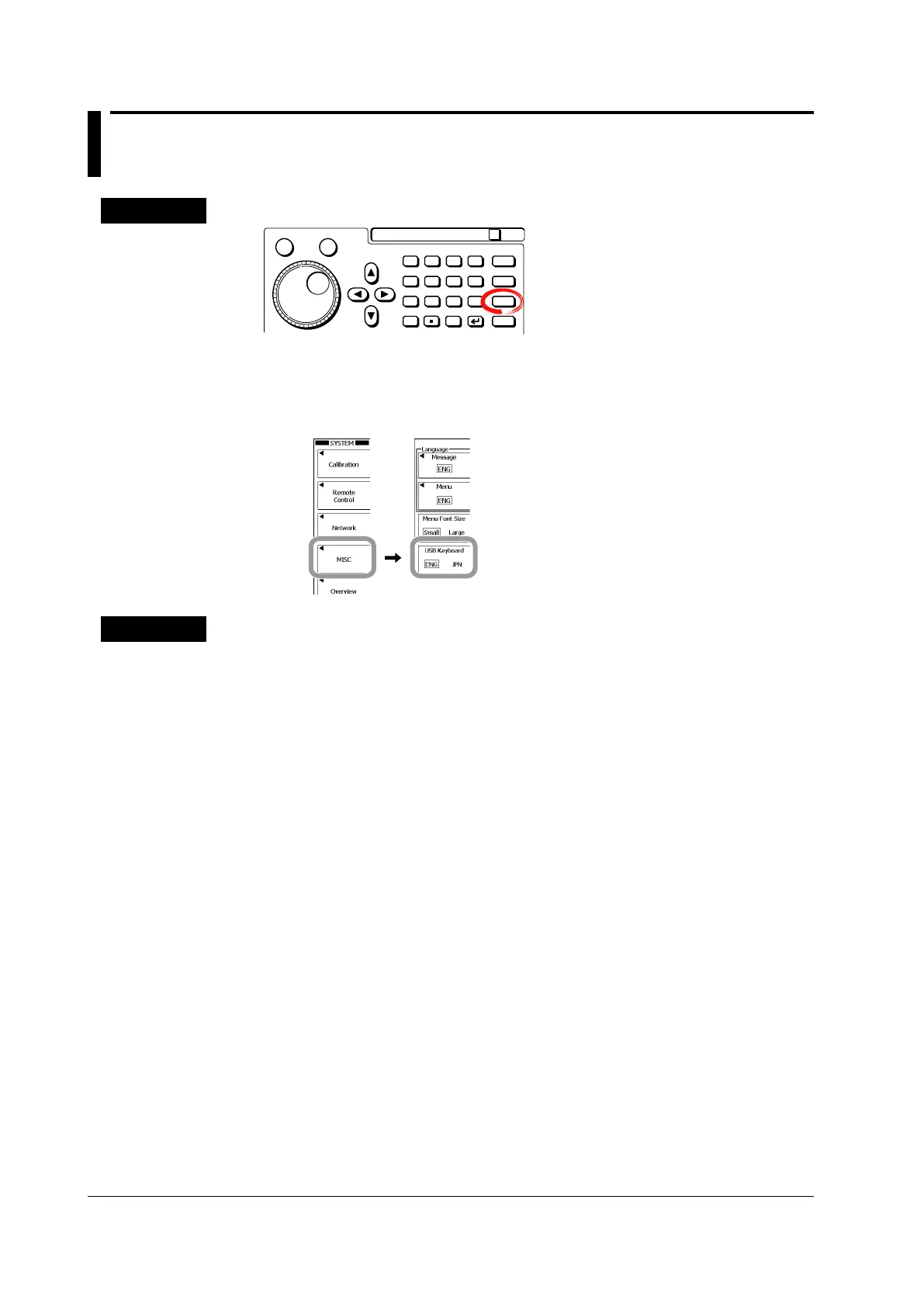

17.3 Changing the USB Keyboard Language

Procedure

RESET

SET

7 8 9

FILE

SHIFT

SYSTEM

EXP

CLEAR

D E F X

k m

u n p

4 5 6

1 2 3

+/-

CA B

Press SYSTEM.

Press the MISC soft key.

Press the USB Keyboard soft key to select ENG or JPN

Explanation

You can select the language of the USB keyboard that is used to enter items such as file

names and comments (see section 4.3).

Keyboards conforming to USB Human Interface Devices (HID) Class Version 1.1 can be

used.

• ENG: 104 keyboard

• JPN: 109 keyboard

The character that is entered through each key of the 104 keyboard varies depending on

the keyboard type. For details of 104 keyboard, see appendix 3.
