5.7 Setting the Scale
Procedure
1.

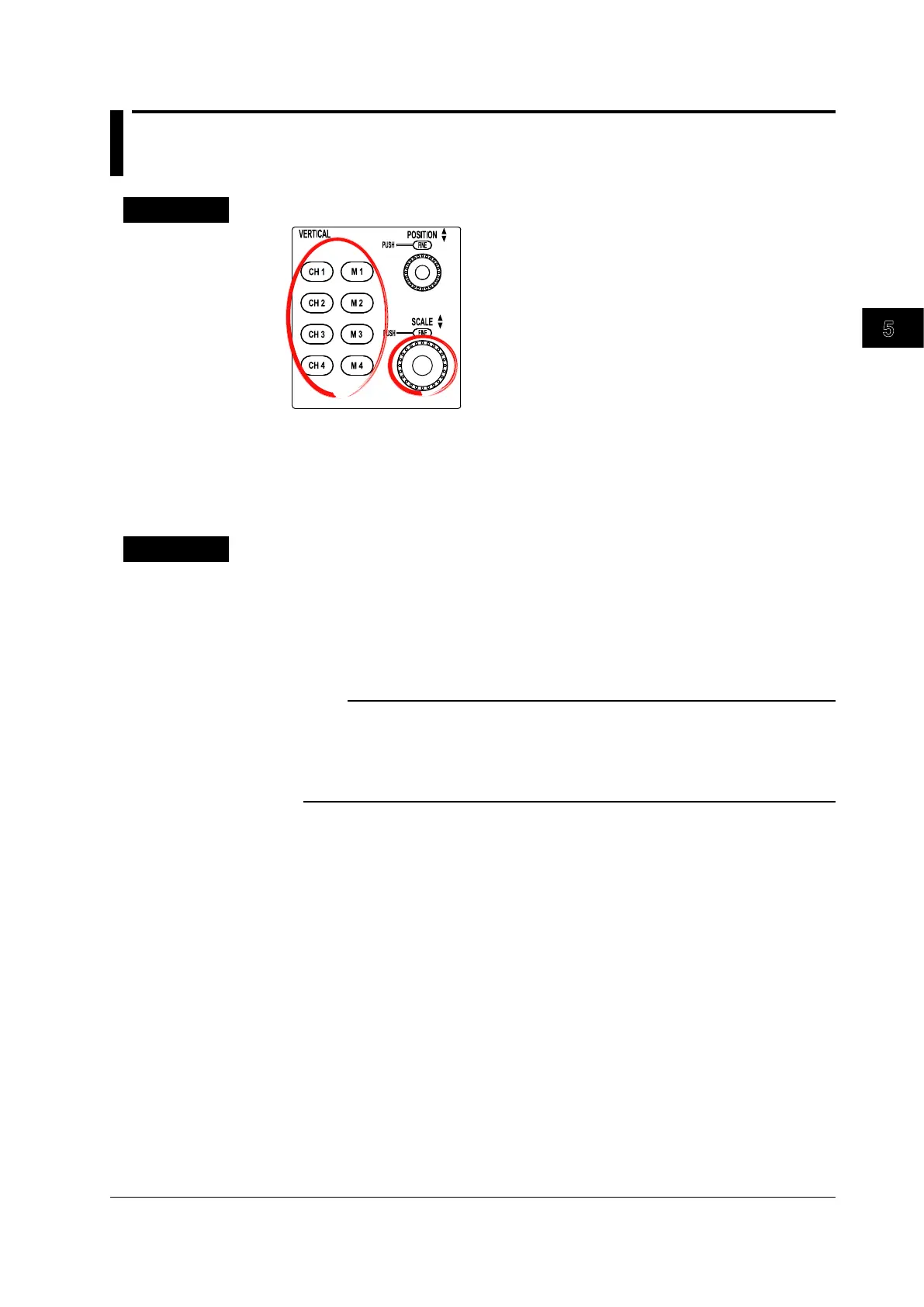

Press one of the CH1 to CH4 or M1 to M4 keys to select the channel.
2.
Turn the SCALE knob to set the V/div value.
By pressing the SCALE knob, lighting the FINE indicator, you can make settings with a
higher resolution.
Explanation
Setting V/div
The V/div (voltage sensitivity) setting is used to adjust the displayed amplitude of the
waveform for easy measurement. You can set the value in terms of the voltage per
division of the screen grid. V/div is set in steps of 1-2-5 (i.e., 1 V/div, 2 V/div, and 5
V/div).
Note
• The displayed waveforms do not change if you turn the SCALE knob while signal acquisition
is stopped. The new V/div value takes effect the next time signal acquisition is restarted.
• Turning the SCALE knob while acquisition is stopped has no effect on cursor measurement
values and automated measurement values of waveform parameters. The displayed values
are for the determined V/div setting.
