Displaying Reference Waveforms

App

Index

14-7

IM 701310-01E

14.6 Displaying History Waveforms Automatically

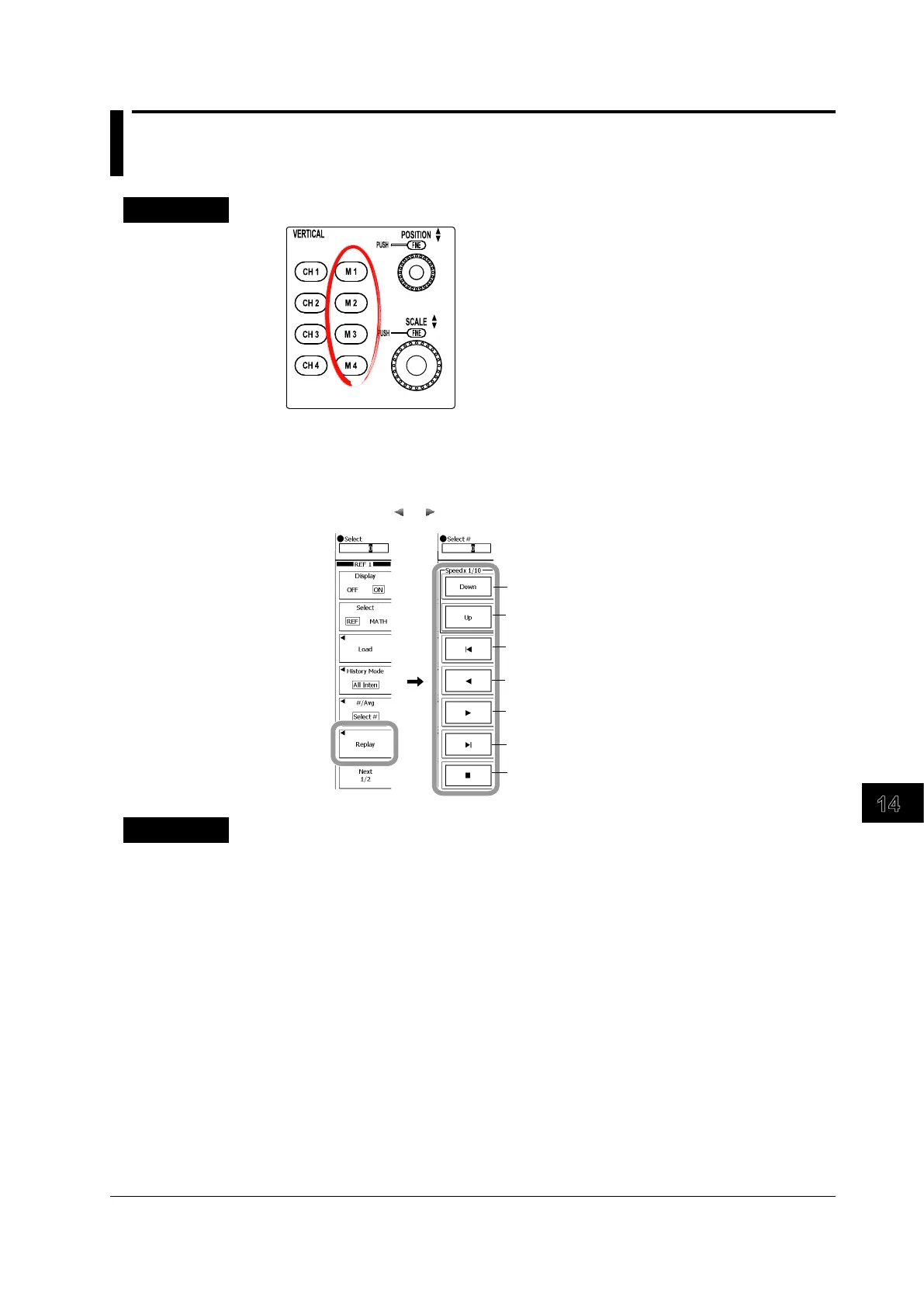

Procedure

Press the key from M1 to M4 to display reference waveforms.

Press the Replay soft key. A menu appears, allowing you to display history

waveforms automatically.

Press the or soft key to display history waveforms automatically.

Speed up switching

of waveforms

Slow down switching

of waveforms

Go to oldest waveform

Play in the direction

of older waveforms

Play in the direction

of newer waveforms

Go to newest waveform

Stop playback

Explanation

History waveforms are displayed individually in sequence.
