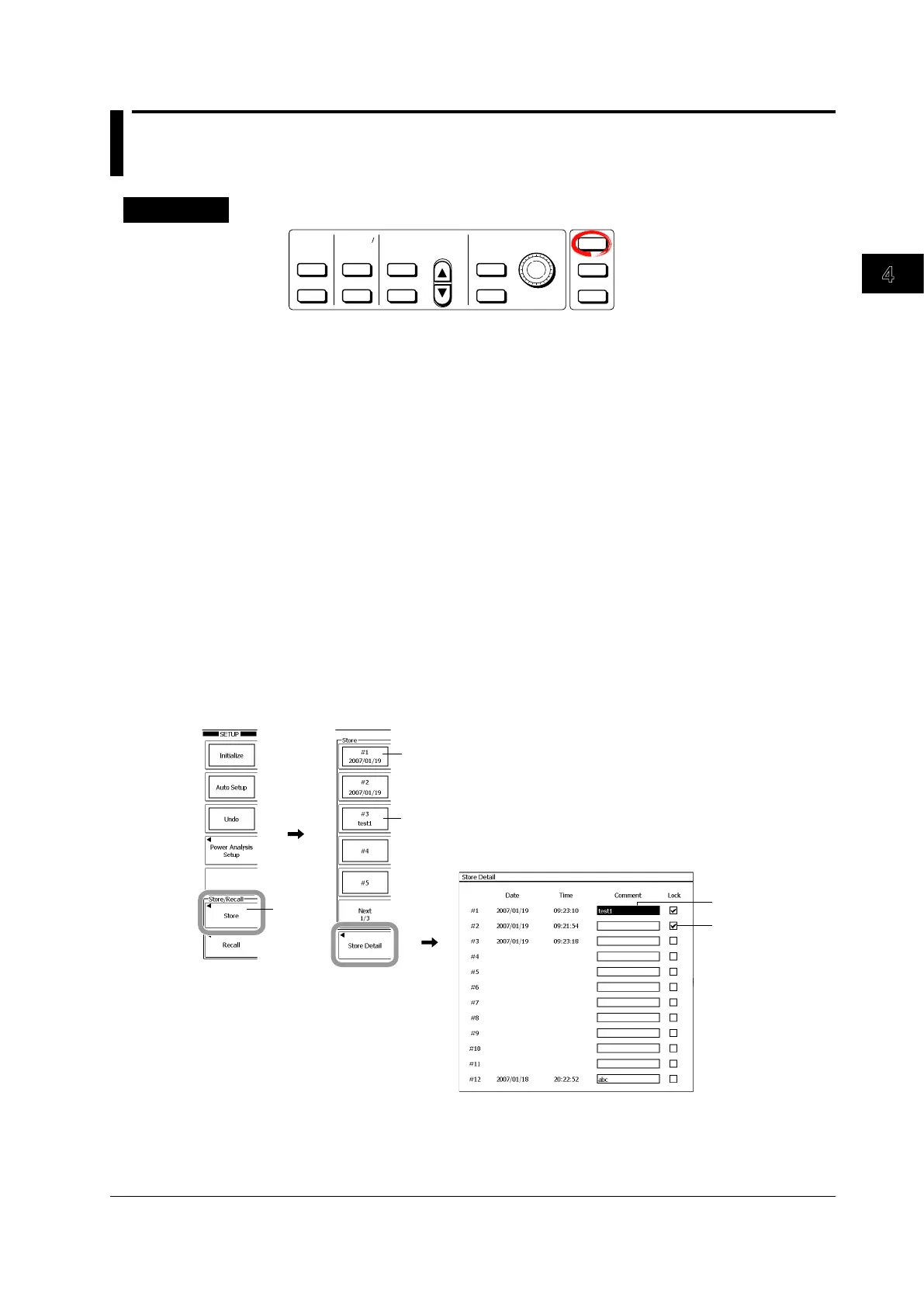

4.6 Storing and Recalling Setup Data
Procedure
CURSOR
PARAM
TELECOM TEST
WINDOW 1
WINDOW 2
FORM
ACCUM CLEAR
ZOOM 1
ZOOM 2
DISP 2 HISTORY CLEAR
DISP
1
MAG
INTENSITY
SETUP
HELP
HISTORY
MEASURE ANALYSIS
XY
DISPLAY ZOOM
ACCUM
1.
Press SETUP.
Storing the Setup Data
2.
Press the Store soft key.
3.
Press any of the #1 to #12 soft keys to select the storage destination in the
internal memory. Press the Next 1/3 or Next 2/3 soft key to select #6 to #12.
Store Data Details
4.
Press the Store Detail soft key. The Store Detail dialog box appears.
• Entering a Comment
5.
Use the rotary knob to move the cursor to Comment, and press SET. A keyboard
appears.
6.
Enter a comment according to the procedure given in section 4.2. Then, press
Enter.
• Prohibiting the Overwriting of the Setup Data
7.
Use the rotary knob to move the cursor to Lock. Press SET to enter a check
mark. Press SET again to clear the check mark.
Store
Enter comments
Displays the date when the
setup data was stored for
internal memories containing
stored data
Displays the comment if a
comment was entered
Select the check box
to prohibit overwriting
of the setup data
