6.3 Setting the Trigger Delay

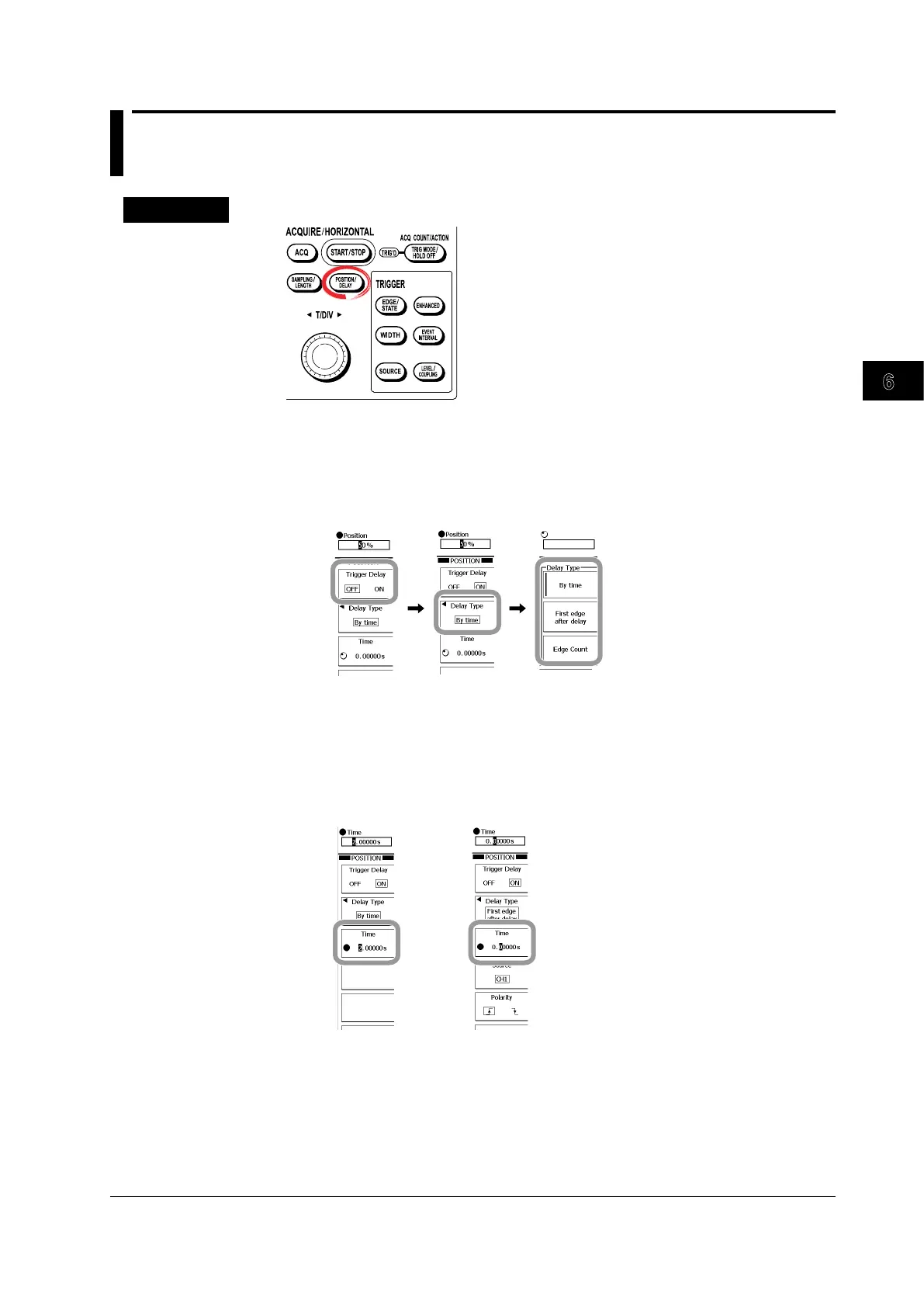

Procedure
1.
Press POSITION/DELAY.
2.
Press the Trigger Delay soft key to select ON.
3. Press the
Delay Type soft key.
4.
Press the appropriate trigger type soft key.
Setting the Delay Time
If you select By time or First edge after delay, set the delay time.
5.
Press the Time soft key.
6.
Use the rotary knob to set the delay time.
By time
First edge
after delay
