When the Search Type Is State

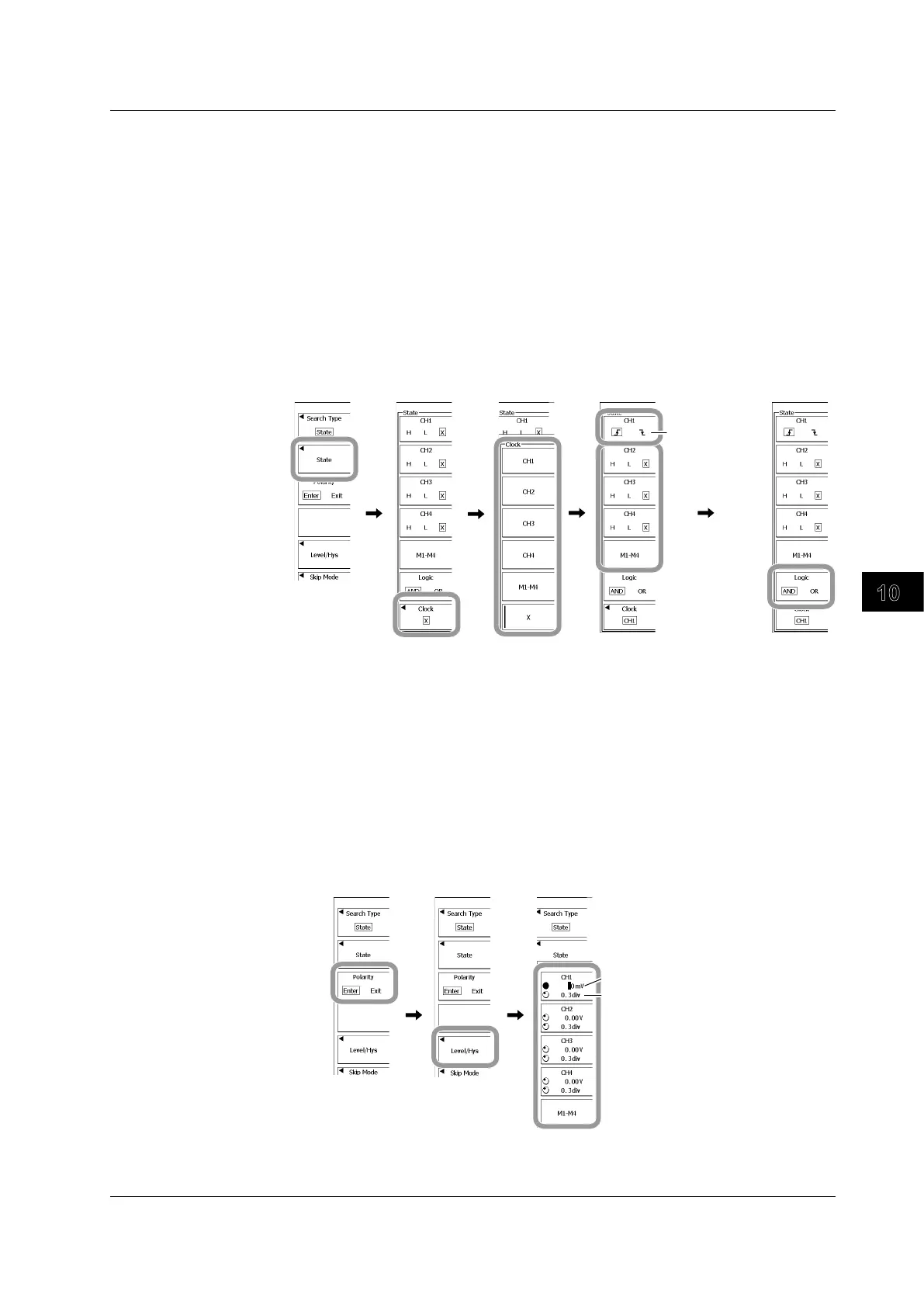

Setting the Clock Source, State Condition, and Logic
2.
Press the State soft key.
3.
Press the Clock soft key.
4.
Press the soft key that corresponds to the appropriate clock source waveform.
To select a channel from M1 to M4, press the
M1-M4
soft key first.
5.
Press the appropriate waveform soft key to select the status.
• To select a channel from M1 to M4, press the
M1-M4
soft key first.
• If the waveform is selected for the clock source in step 4, select the slope.
• H: High. L: Low
. X: Don’t care
6.
Press the Logic soft key to select AND or OR.
7.
Press ESC to return to the previous screen.
Example in
which the clock
source is set to
CH1
Selecting the False-to-True Condition Change or the True-to-False
Condition Change
8.
Press the Polarity soft key to select Enter or Exit.
Setting the Level and Hysteresis
9.
Press the Level/Hys soft key.
10.
Press the appropriate waveform soft key, and then use the rotary knob to set the
status reference level and hysteresis.
• To select a channel from M1 to M4, press the
M1-M4
soft key first.
• Press the soft key to select the setting that you want to set using the rotary knob.
11.
Press ESC to return to the previous screen.
Level
Hys
Executing the Search
Carry out steps 6 to 14 in section 10.10.
10.11 Searching Waveform Signals
