When the Search Type is Edge (Qualified)

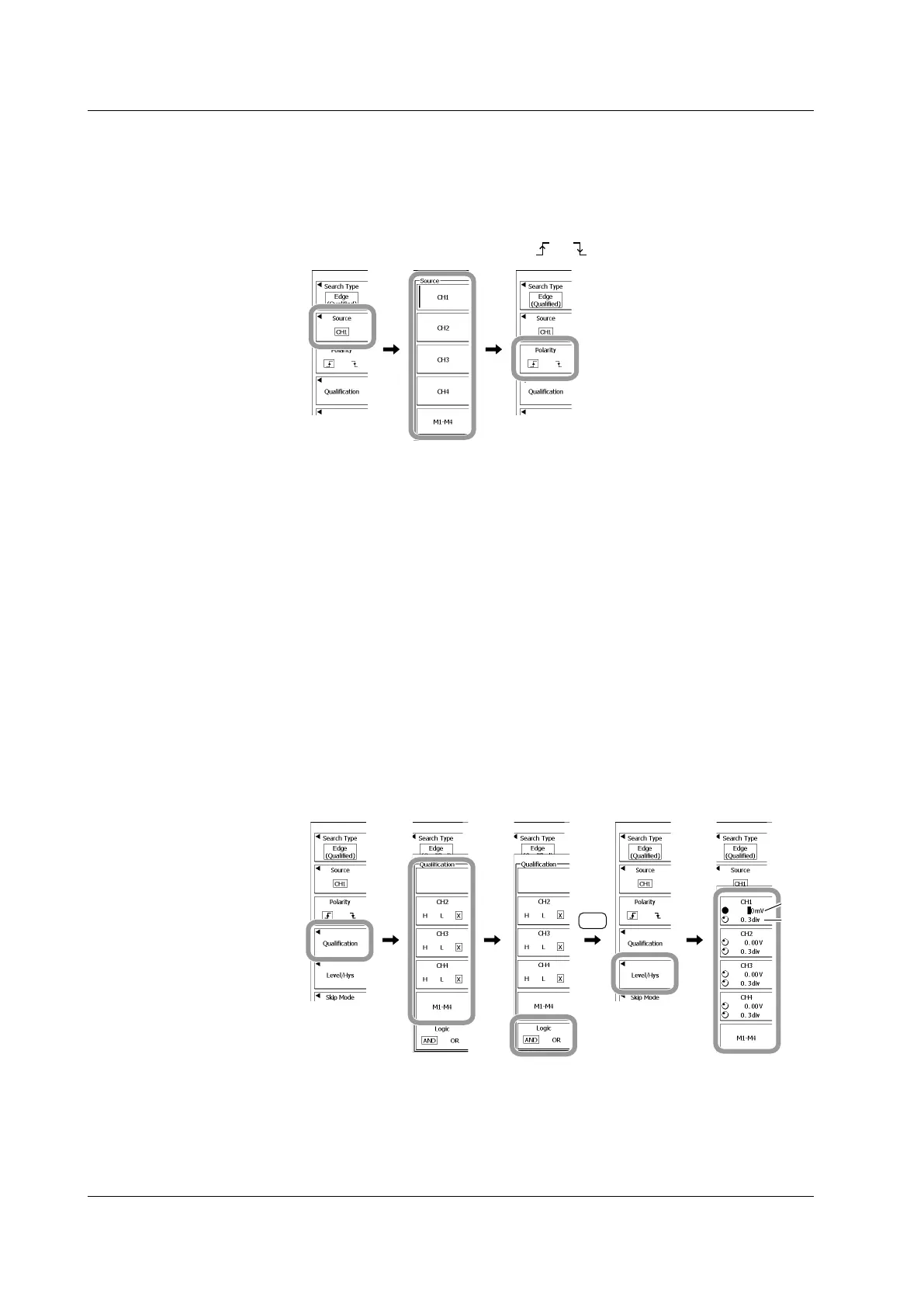

Selecting the Search Source Waveform and Slope
2.
Press the Source soft key.
3.
Press the appropriate waveform soft key.
To select a channel from M1 to M4, press the
M1-M4
soft key first.
4.
Press the Polarity soft key to select or .
Setting the Qualification
5.
Press the Qualification soft key.
6.
Press the appropriate waveform soft key to select the status.
• To select a channel from M1 to M4, press the
M1-M4
soft key first.
• The search source waveform selected in step 3 is not displayed.
• H: High. L: Low. X: Don’t care
7.
Press the Logic soft key to select AND or OR.
8.
Press ESC to return to the previous screen.
Setting the Level and Hysteresis
9.
Press the Level/Hys soft key.
10.
Press the appropriate waveform soft key, and then use the rotary knob to set the
polarity as well as the status reference level and hysteresis.
• To select a channel from M1 to M4, press the
M1-M4
soft key first.
• Press the soft key to select the setting that you want to set using the rotary knob.
11.
Press ESC to return to the previous screen.
ESC
Level
Hys
Executing the Search
Carry out steps 6 to 14 in section 10.10.
