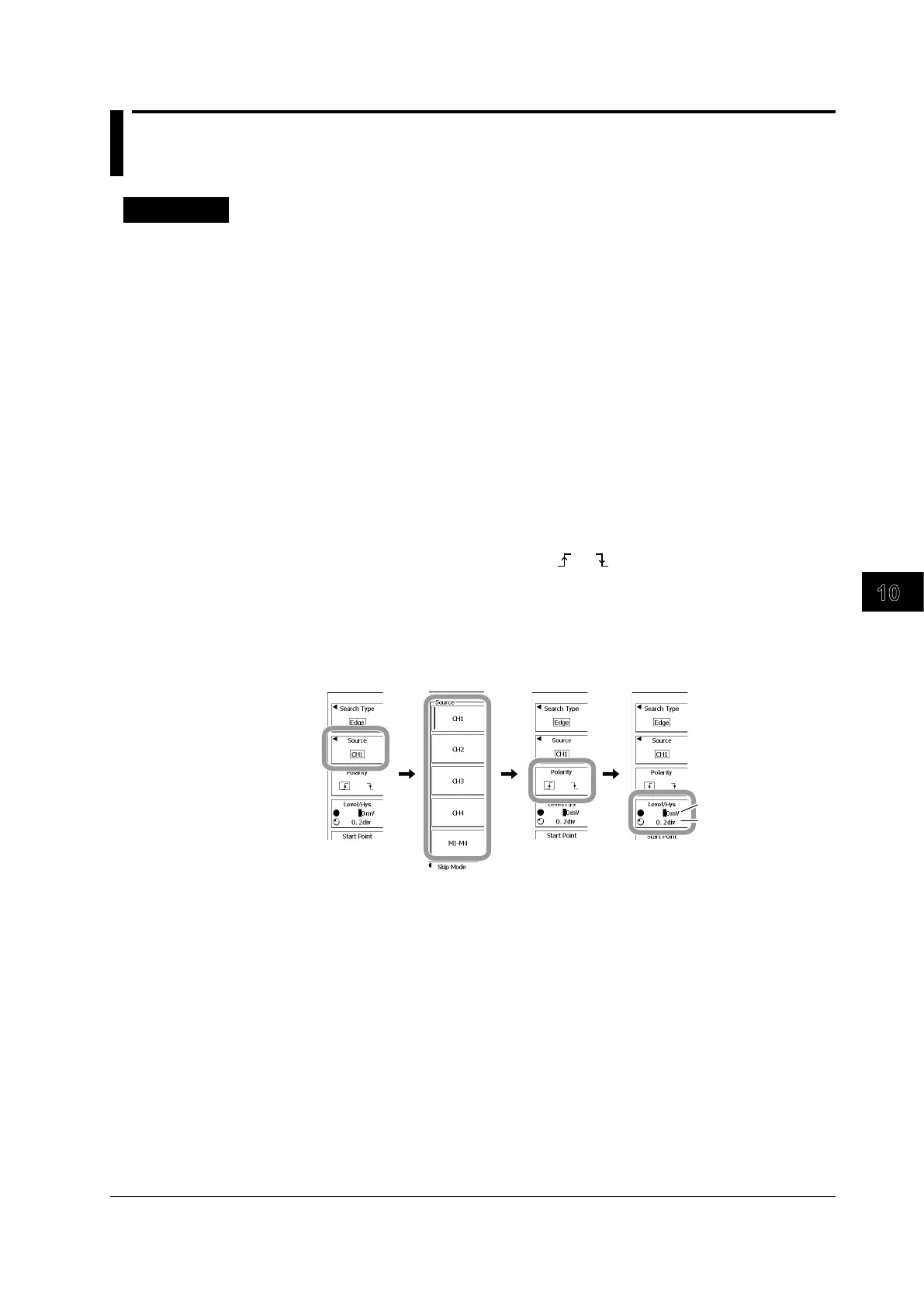

10.11 Searching Waveform Signals
Explanation
1.
Carry out steps 1 to 5 in section 10.10 to set the search type to Edge, Edge
(Qualified), State or Width.
Proceed to the steps on the pages indicated below according to the selected search
type.
• Edge: Step 2 on this page
• Edge (Qualified): Step 2 on page 10-62
• State: Step 2 on page 10-63
• Width: Step 2 on page 10-64
When the Search Type Is Edge
Selecting the Search Source Waveform and Slope
2.
Press the Source soft key.
3.
Press the appropriate waveform soft key.
To select a channel from M1 to M4, press the
M1-M4
soft key first.
4.
Press the Polarity soft key to select or .
Setting the Level and Hysteresis
5.
Press the Level/Hys soft key.
6.
Use the rotary knob to set the slope edge reference level and hysteresis.
Press the soft key to select the setting that you want to set using the rotary knob.
Executing the Search
Carry out steps 6 to 14 in section 10.10.
