YOKOGAWA DL9000 Series User Manual

5-1
IM 701310-01E
Vertical and Horizontal Axes
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
App
Index

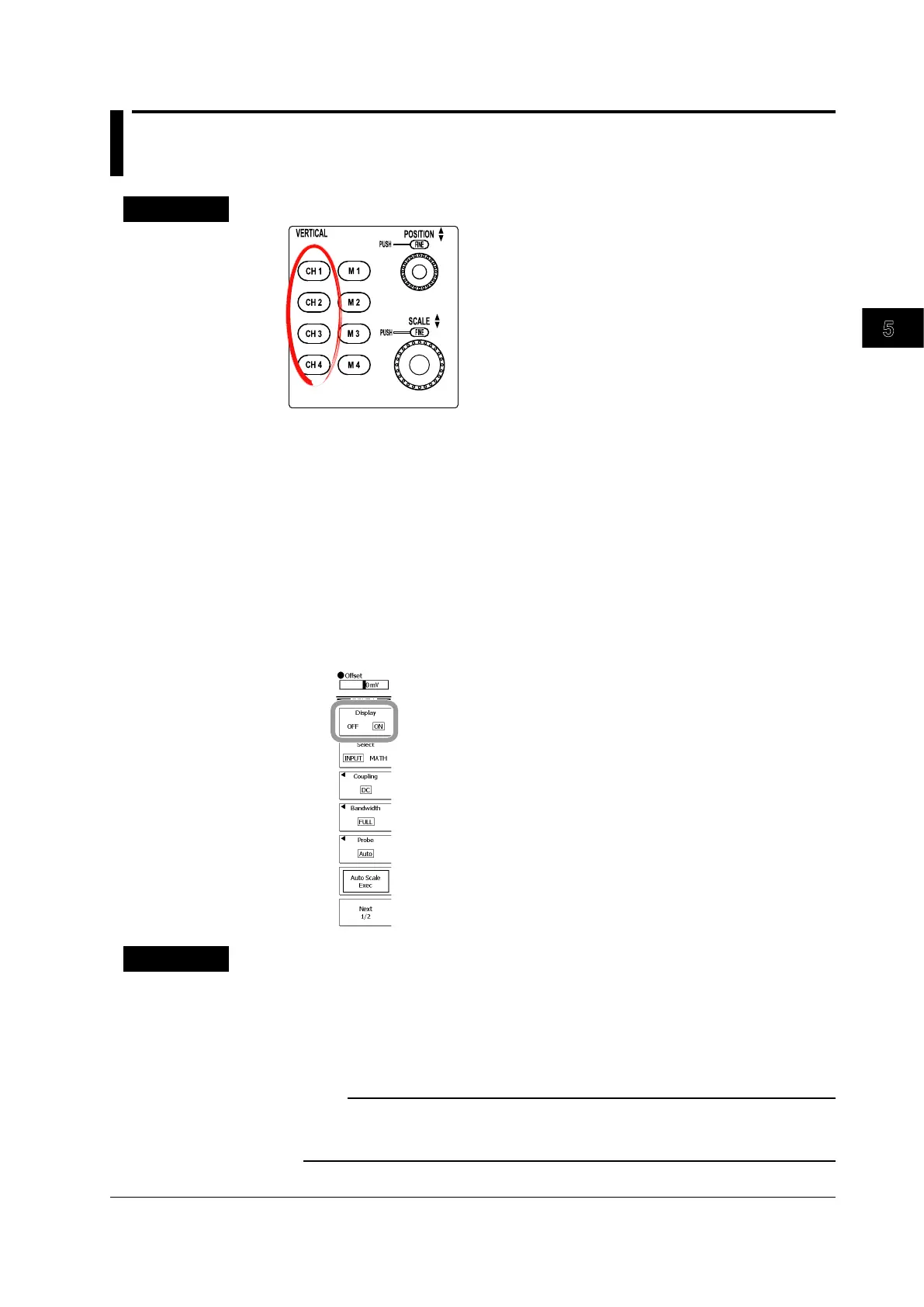

5.1 Switching the Display of Input Waveforms ON
and OFF
Procedure
Switching the Display ON
1.
Press the key for the channel to be displayed, from CH1 to CH4. The key lights,
and the waveform appears.
The menu for the channel settings appears.
2.
Press the Select soft key, and select Input.
Switching the Display OFF
1.
Press the key for the channel to be turned off, from CH1 to CH4.
The menu for the channel settings appears.
2.
Press the Display soft key, and select OFF.
Explanation
The channel keys (CH1 to CH4) set to ON light.
When a channel key is off, press the key once to change the indication to ON, lighting
the key.
When a channel key is lit, press the key twice in succession, changing the indication to
OFF, and turning off the key.
Note
• Scale values (section 5.12) and signal labels (section 8.6) can also be displayed using the
DISPLAY menu.
• If interleave mode (see section 7.5) is ON, CH2 and CH4 cannot be displayed.
Chapter 5 Vertical and Horizontal Axes
