YOKOGAWA DL9000 Series User Manual

Triggering
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
App
Index
6-7
IM 701310-01E

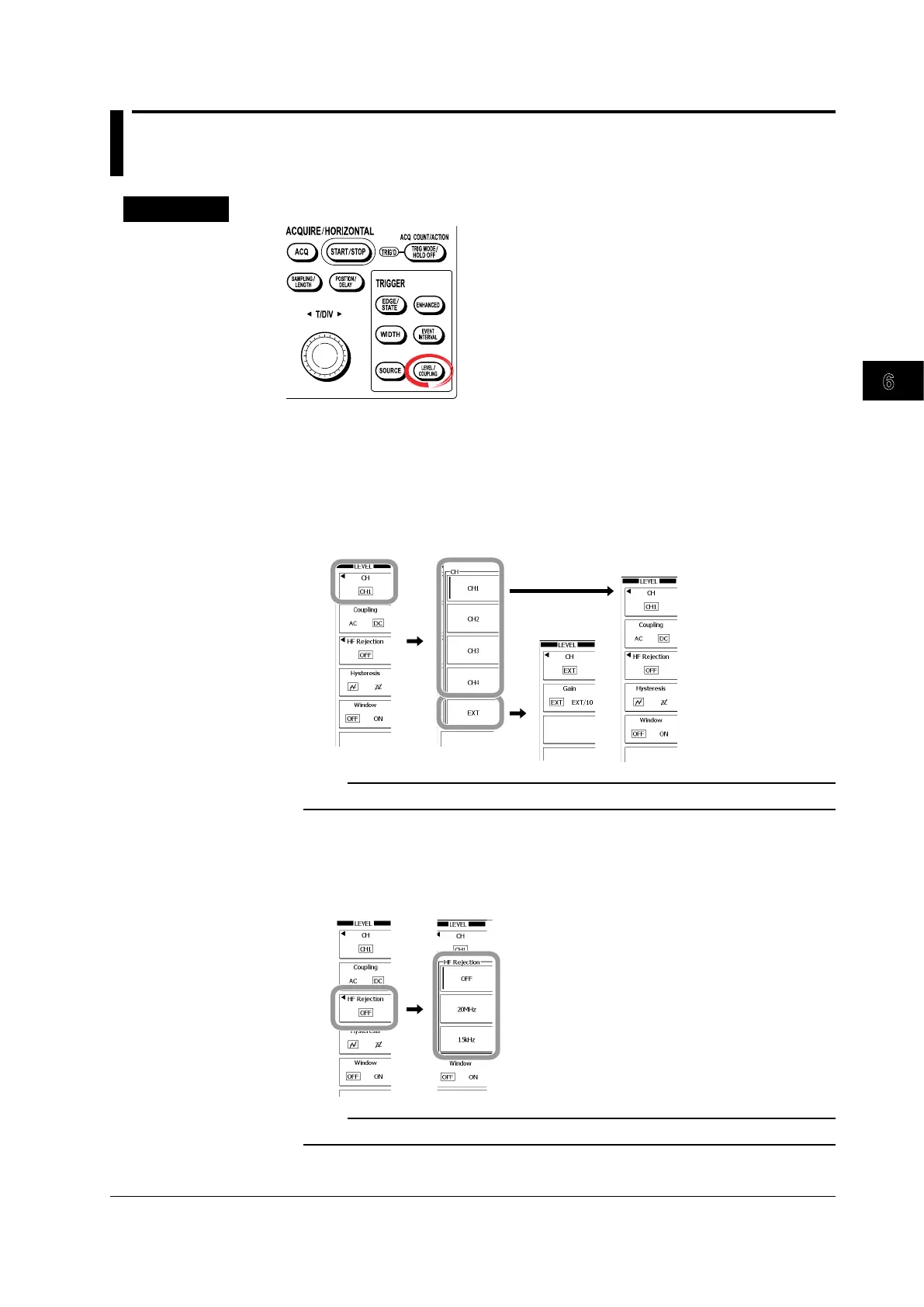

6.5 Setting the Trigger Coupling, HF Rejection,
Trigger Hysteresis, and Window Comparator
Procedure
Setting the Trigger Coupling
1.
Press LEVEL/COUPLING.
2.
Press the CH soft key.
3.
Press the appropriate soft key from CH1 to CH4 or EXT.
If you select EXT, proceed to step 10.
4.
Press the Coupling soft key to select DC or AC.
CH1 to CH4
EXT
Note
The trigger coupling setting applies to all trigger types.
Setting HF Rejection
5.
Press the HF Rejection soft key.
6.
Press the appropriate frequency soft key.
Note
The HF rejection setting applies to all trigger types.
