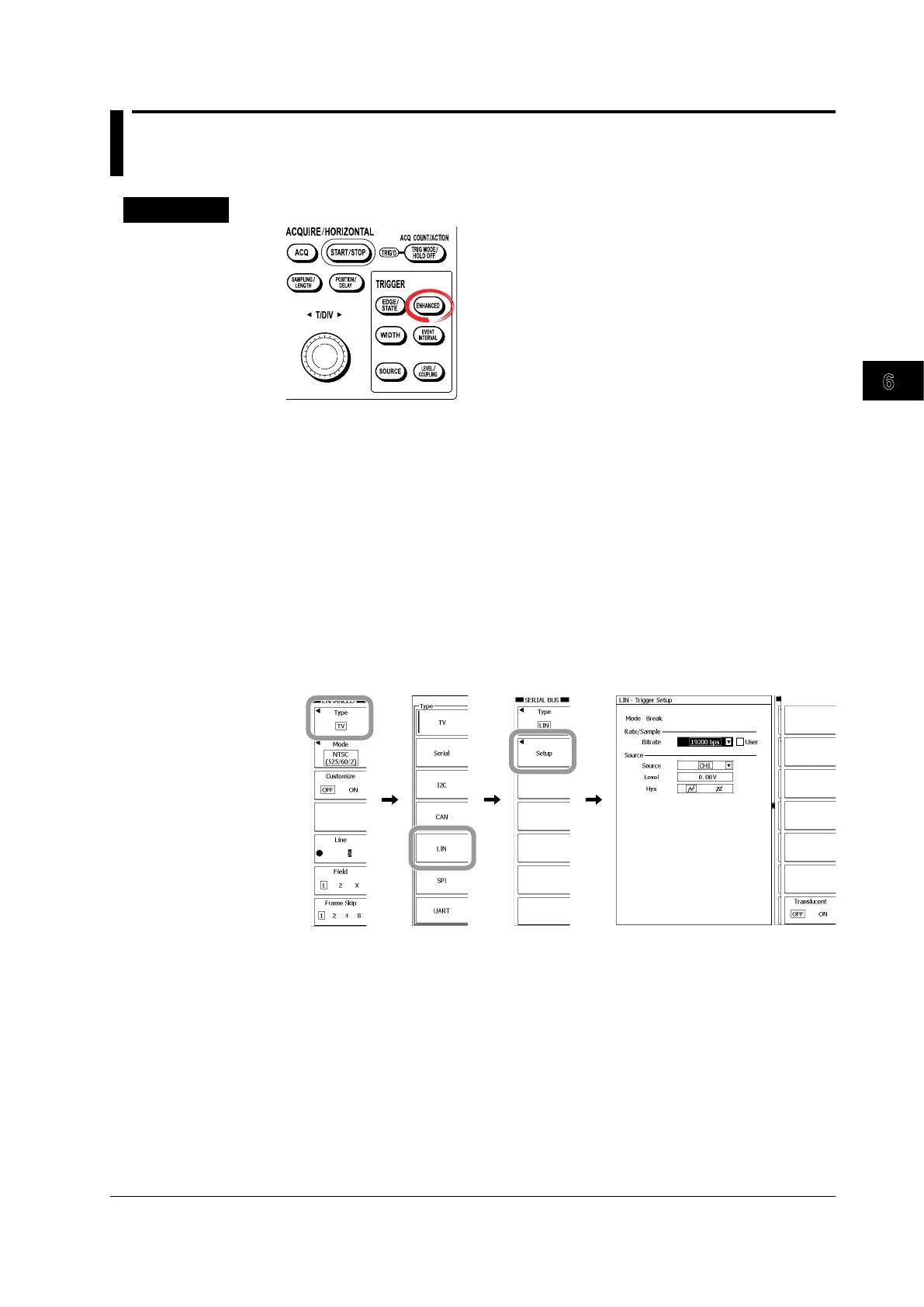

6.17 Triggering on a LIN Bus Signal

Procedure

Press ENHANCED.

Press these soft keys: Type > LIN > Setup.

The Setup dialog box appears.

Setting the Bit Rate

Use the rotary knob and SET to select the bit rate from 19200bps to 1200bps.

If you select the

User

check box, you will be able to set the bit rate from 1000bps to

20000bps using the rotary knob and SET.

Setting the Trigger Level and Hysteresis

Use the rotary knob and SET to select the source from CH1 to CH4.

Use the rotary knob and SET to set the level and hysteresis.
