YOKOGAWA DL9000 Series User Manual

1-4
IM 701310-01E
LEVEL/COUPLING key ►Section 6.5
Displays a menu for trigger coupling, HF rejection, Window comparator, and other
settings.
T/DIV knob ►Section 5.8
Sets the time axis scale. If you change this while signal acquisition is stopped, the
change takes effect when signal acquisition is restarted.

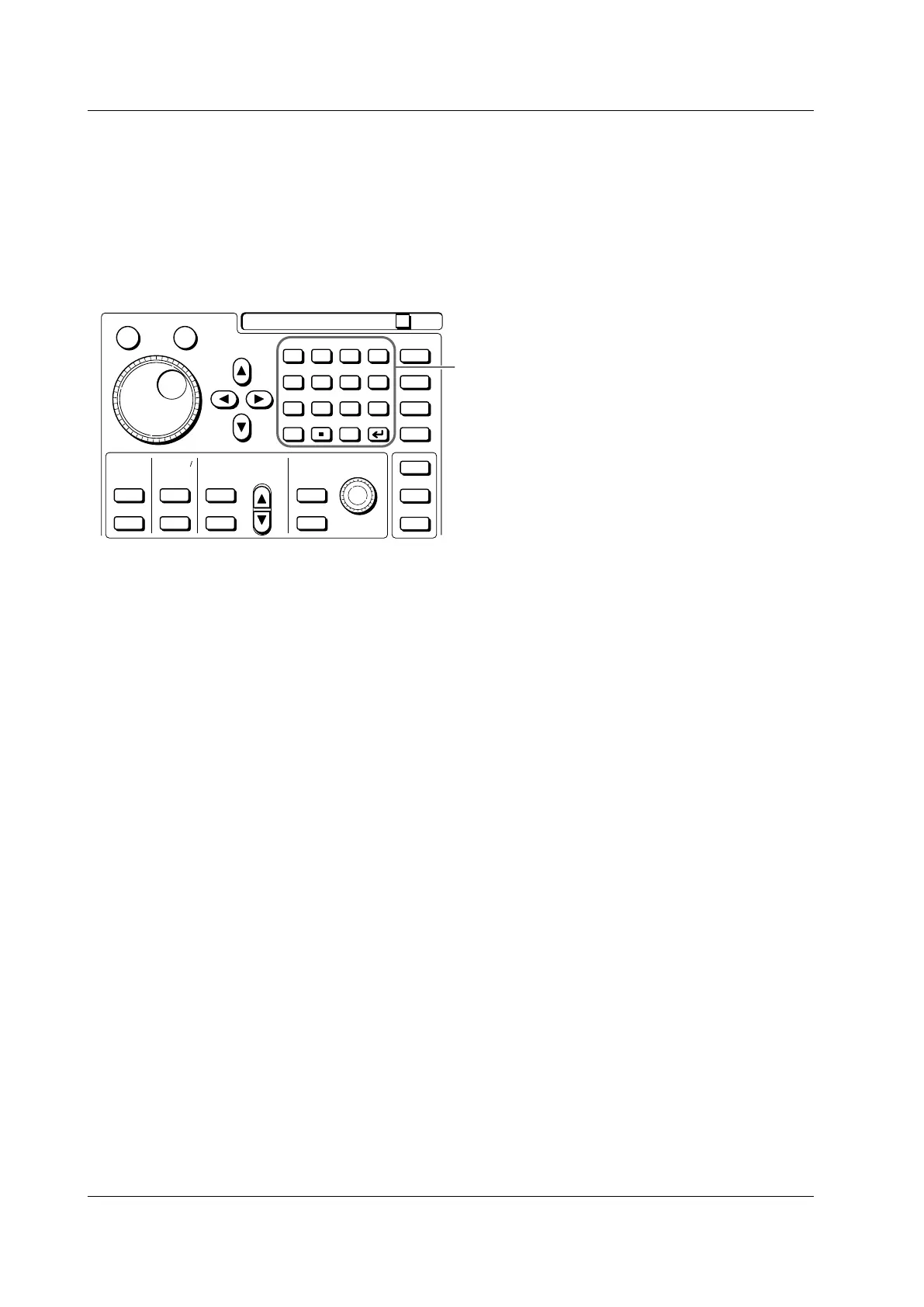

Analysis/Screen Display/Screen Image Printing/Data Saving/History Waveform/
etc.
RESET SET
7 8 9 BS
PRINT
FILE
SHIFT
SYSTEM
EXP
CLEAR
M
MENU
D E F X
k m
u n p
4 5 6
1 2 3
0
+/-
CA B
CURSOR
PARAM
TELECOM TEST
WINDOW 1
WINDOW 2
FORM
ACCUM CLEAR
ZOOM 1
ZOOM 2
DISP 2 HISTORY CLEAR
DISP
1
MAG
INTENSITY
SETUP
HELP
HISTORY
MEASURE ANALYSIS
XY
DISPLAY ZOOM
ACCUM
Numeric keypad
Analysis
CURSOR key ►Section 10.1
Displays a menu for cursor measurement.
PARAM key ►Sections 10.2, 10.3
Displays a menu for automatic waveform parameter measurement and statistics
processing.
SHIFT+PARAM key (TELECOM TEST) ►Sections 10.4
Pressing the SHIFT key, followed by the PARAM key displays a menu for the telecom
test.
WINDOW 1 key, WINDOW 2 key ►Sections 10.5 to 10.9
Display a menu for serial bus signals analysis, XY display, FPT analysis, waveform
parameter histogram and list, and other settings. When the display is ON, the key lights.
Screen Display
FORM key ►Sections 8.2 to 8.5, 8.8
Displays a menu relating to screen display.
ACCUM key ►Section 7.7
Displays a menu for waveform overwriting display.
SHIFT+ACCUM key (ACCUM CLEAR) ►Section 7.7
Pressing the SHIFT key, followed by the ACCUM key clears the overwriting waveform.
INTENSITY key ►Section 7.7
Pressing this key changes the intensity when the gradation mode is set to intensity
gradation in accumulated display.
ZOOM 1 key, ZOOM 2 key ►Sections 8.1, 10.10 to 10.13
Display a menu for waveform zoom display and data search functions.
SHIFT+ZOOM 1 key (DISP 1), SHIFT+ZOOM 2 key (DISP 2) ►Sections 8.1
Pressing the SHIFT key, followed by the ZOOM key displays a menu relating to zoom
waveform positioning.
MAG knob ►Section 8.1
In a zoom display, turn this knob to change the zoom ratio on the applicable vertical/
horizontal axis.
1.2 Operating Keys and Knobs
