5.

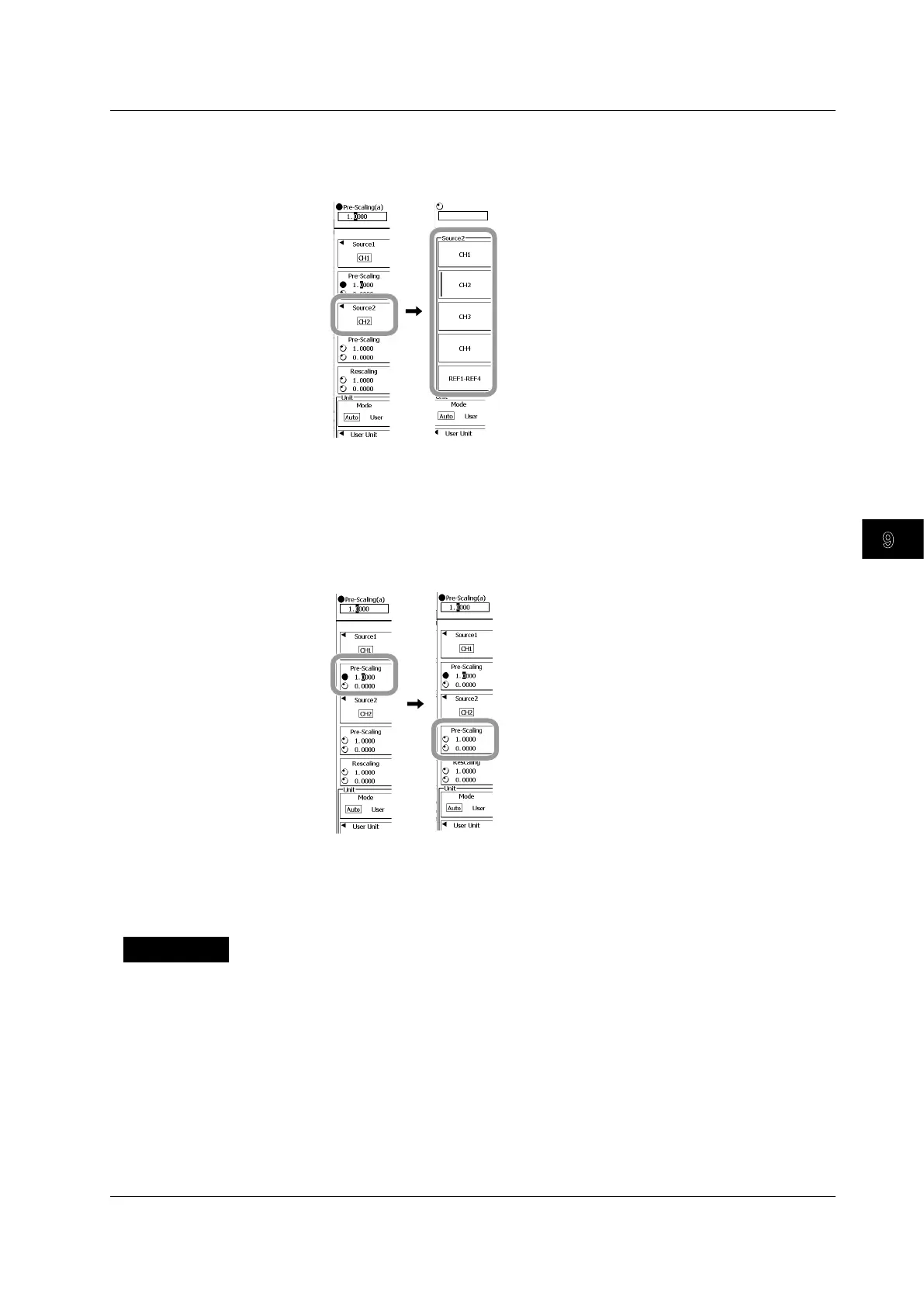

Press the Source2 soft key.
6.
Press the soft key corresponding to the source channel.
To select REF1 to REF4, first switch to REF1-REF4 by pressing the corresponding soft key.
Setting Pre-Scaling
7.
Press the Pre-Scaling soft key corresponding Source 1 or Source 2 as necessary
in order to set the rotary knob target.
8.
Use the rotary knob and set a and b in the scaling equation y = ax + b.
9.
Repeat steps 7 and 8 as necessary, setting Source 1 and Source 2.
Setting the Scaling to Apply to Computed Results, the Unit, and the
Display Range
Carry out steps 6 to 13 in section 9.1.
Explanation
The arithmetic operation is performed on the specified trace waveform.
Waveform to Be Computed
Select from CH1 to CH4 or from REF1 to REF4. When CH1 to CH4 on the front panel
are used for operation, the waveform to be computed is fixed to the channel that is being
operated.
Scaling Prior To the Operation
This sets scaling on pre-operation values for individual sources.
9.3 Performing Arithmetic Functions
