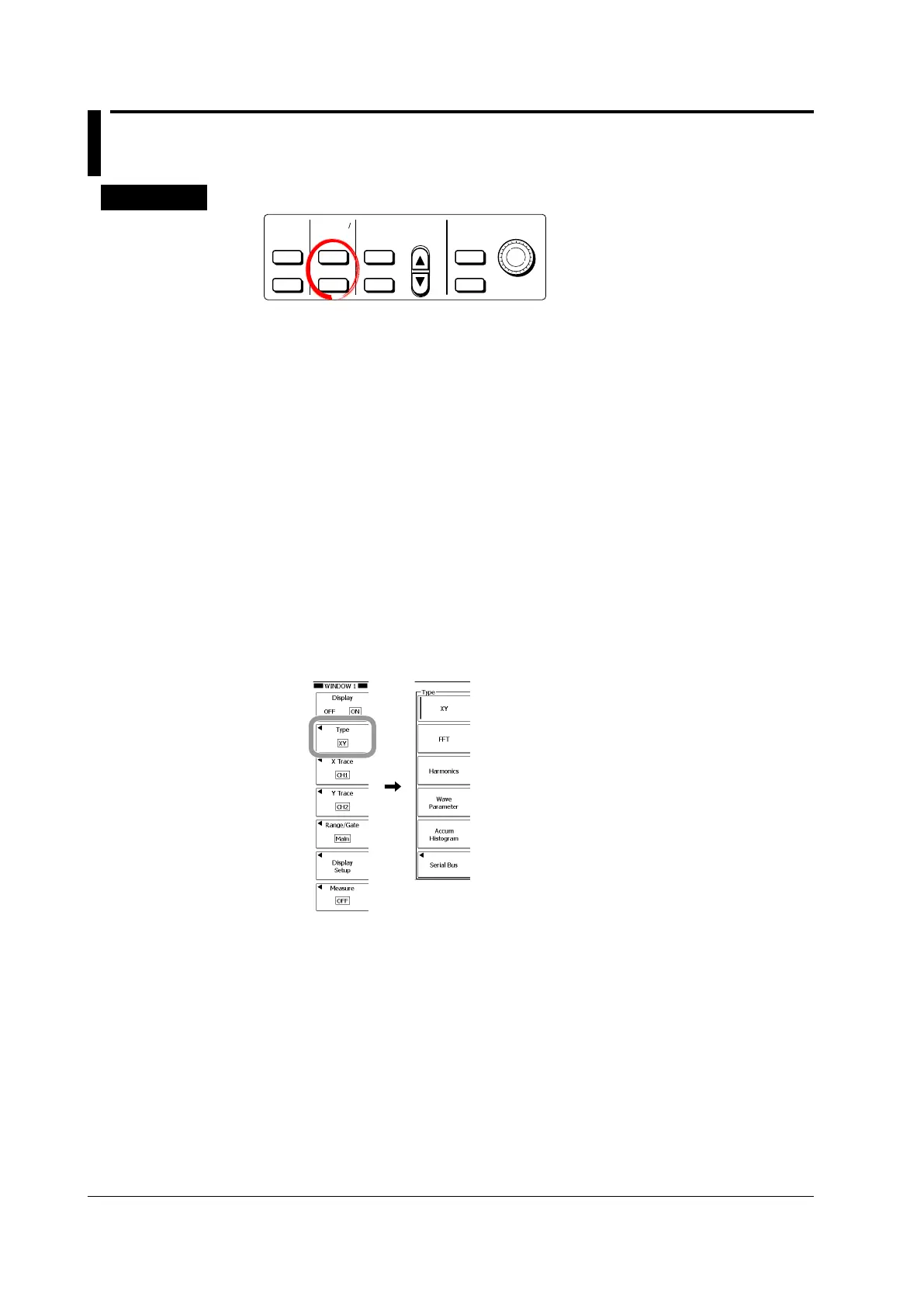

10.5 Selecting the Analysis Type
Procedure
CURSOR
PARAM
TELECOM
TEST
WINDOW 1
WINDOW 2
FORM
ACCUM
CLEAR
ZOOM 1
ZOOM 2
DISP
2
DISP
1
MAG
INTENSITY
MEASURE
ANALYSIS
XY
DISPLAY ZOOM
ACCUM
1.
Press WINDOW 1 or WINDOW 2.
The WINDOW menu appears.
Selecting the Analysis Type
2.
Press the Type soft key.
3.
From the menu that appears, press the appropriate soft key to select the analysis
type.
4.
Proceed to the appropriate section indicated below according to the selected
analysis type, and set the analysis options.
• XY: Section 10.6
• FFT: Section 10.7
• Harmonics:
An optional power supply analysis function. See the option manual
IM 701310-61E.
• Wave Parameter: Section 10.8
• Accum Histogram: Section 10.9
• Serial Bus (I2C, CAN, LIN, SPI, UART): An optional serial bus analysis function. See the
option manual IM 701310-51E.
