YOKOGAWA DL9000 Series User Manual

10-65
IM 701310-01E
Analysis and Search
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
App
Index

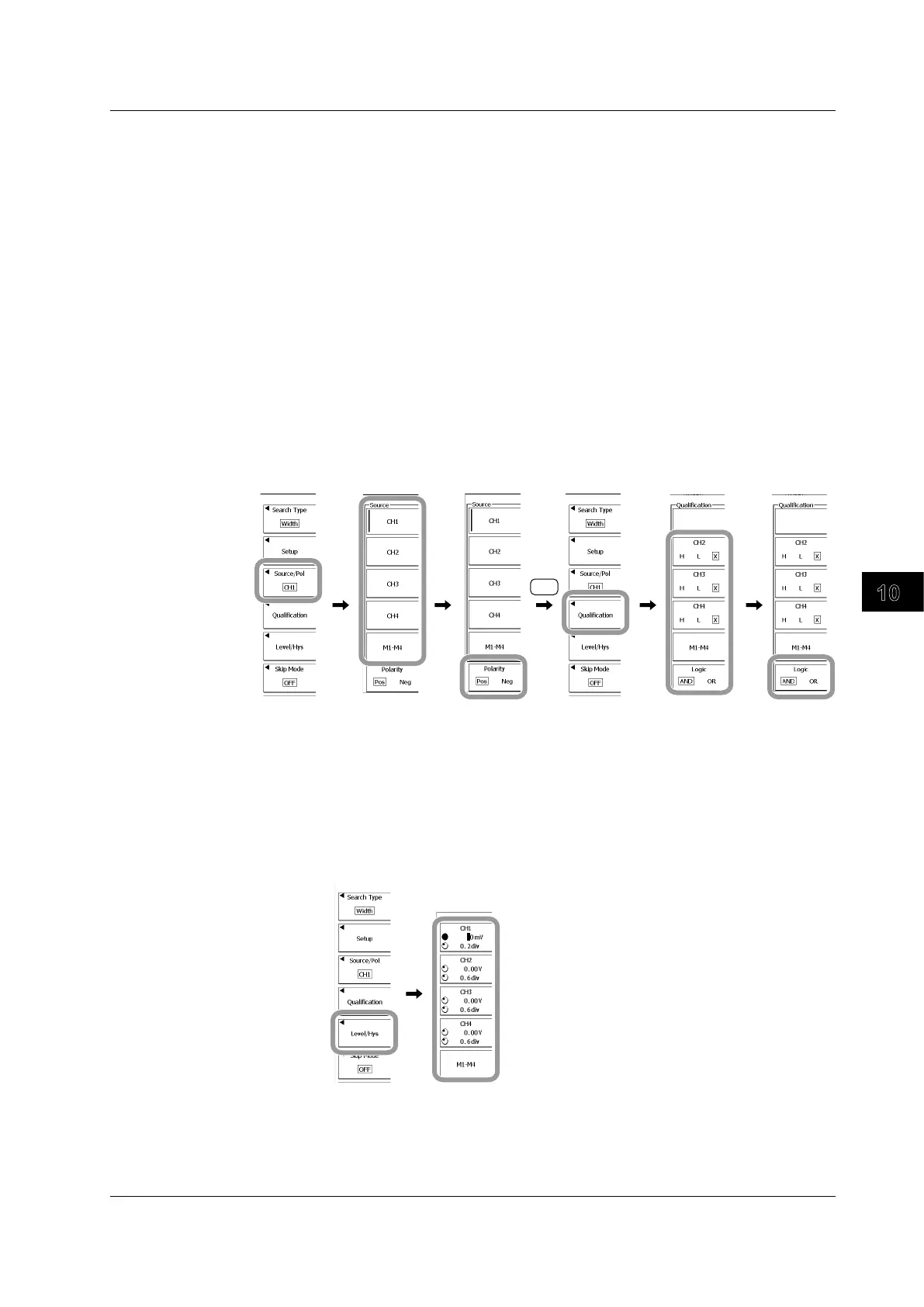

When the Width Type Is Pulse (Qualified)
• Selecting the Search Source Waveform and Polarity
8.
Press the Source/Pol soft key.
9.
Press the appropriate waveform soft key.
To select a channel from M1 to M4, press the
M1-M4
soft key first.
10.
Press the Polarity soft key to select Pos or Neg.
11.
Press ESC to return to the previous screen.
• Setting the Qualification
12.
Press the Qualification soft key.
13.
Press the appropriate waveform soft key to select the status.
• To select a channel from M1 to M4, press the
M1-M4
soft key first.
• The search source waveform selected in step 9 is not displayed.
• H: High. L: Low. X: Don’t care
14.
Press the Logic soft key to select AND or OR.
15.
Press ESC to return to the previous screen.
ESC
• Setting the Level and Hysteresis
16.
Press the Level/Hys soft key.
17.
Press the appropriate waveform soft key, and then use the rotary knob to set the
polarity as well as the status reference level and hysteresis.
• To select a channel from M1 to M4, press the
M1-M4
soft key first.
• Press the soft key to select the setting that you want to set using the rotary knob.
18.
Press ESC to return to the previous screen.
• Executing the Search
Carry out steps 6 to 14 in section 10.10.
10.11 Searching Waveform Signals
