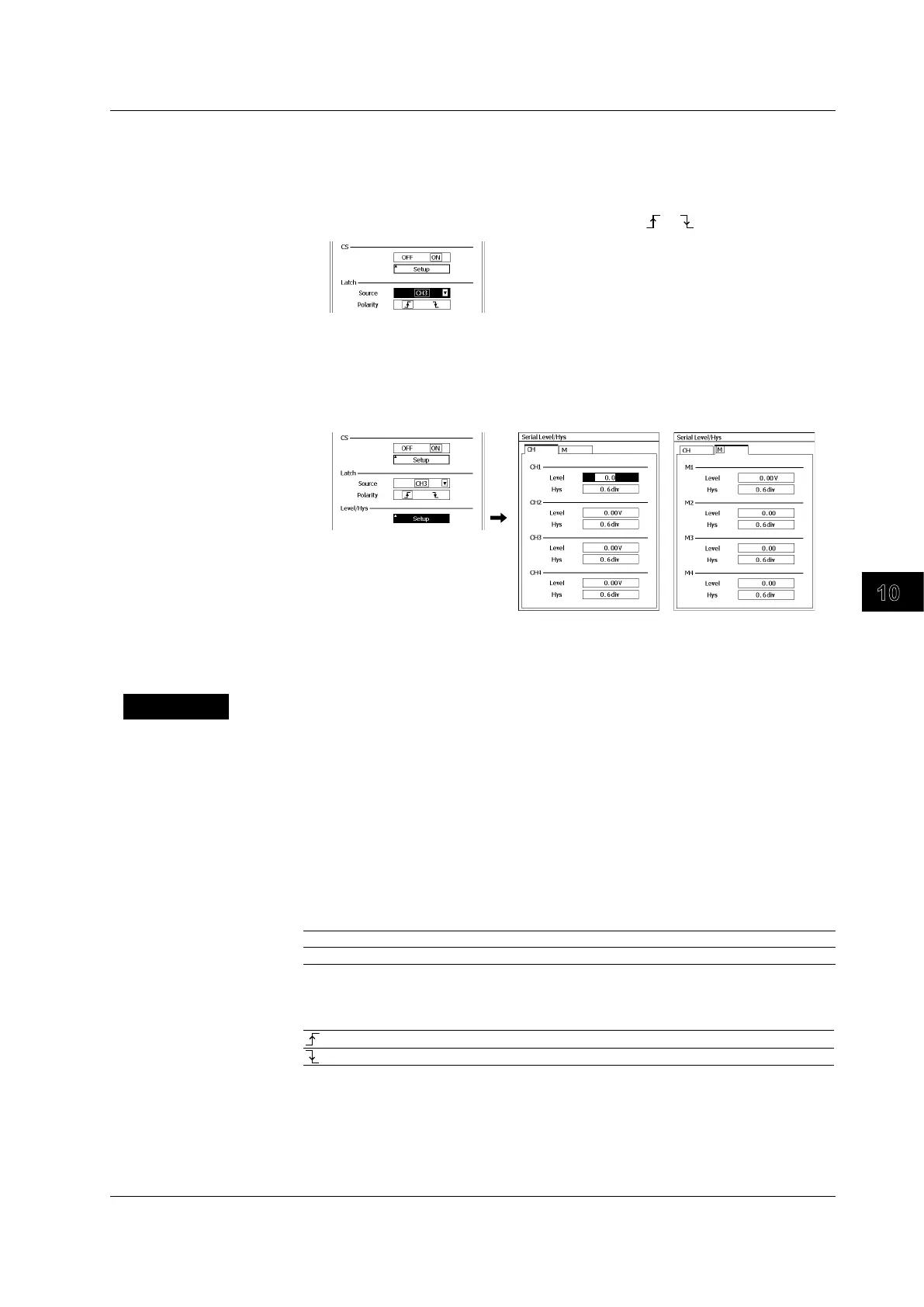

Setting the Latch Source
17.
Use the rotary knob and SET to select the latch source.
• Select the source from CH1 to CH4, from M1 to M4, or X.
• If you select X, proceed to step 19.
18.
Use the rotary knob and SET to set the polarity to or .
Setting the Level and Hysteresis
19.
Use the rotary knob and SET to select Setup under Level/Hys.
The Level/Hys dialog box appears.
20.
Use the rotary knob and SET to set the level and hysteresis for each source.
Executing the Search
Carry out steps 6 to 14 in section 10.10.
Explanation
This feature searches serial pattern signals.
Data, Clock, CS, and Latch Sources
You can select the data, clock, CS, and latch sources from CH1 to CH4 or from M1 to
M4.
Clock
• Clock ON/OFF
You can select whether or not to sample the data source in sync with the selected
clock source.
ON Samples in sync with the clock source.
OFF Does not synchronize to the clock source.
• Sampling Timing
You can select the clock edge that specifies when the data patterns are sampled.
On the rising edge
On the falling edge
10.12 Searching Serial Pattern Signals
To Next Page
