11-10
IM 701310-01E
Resetting the Search
43.

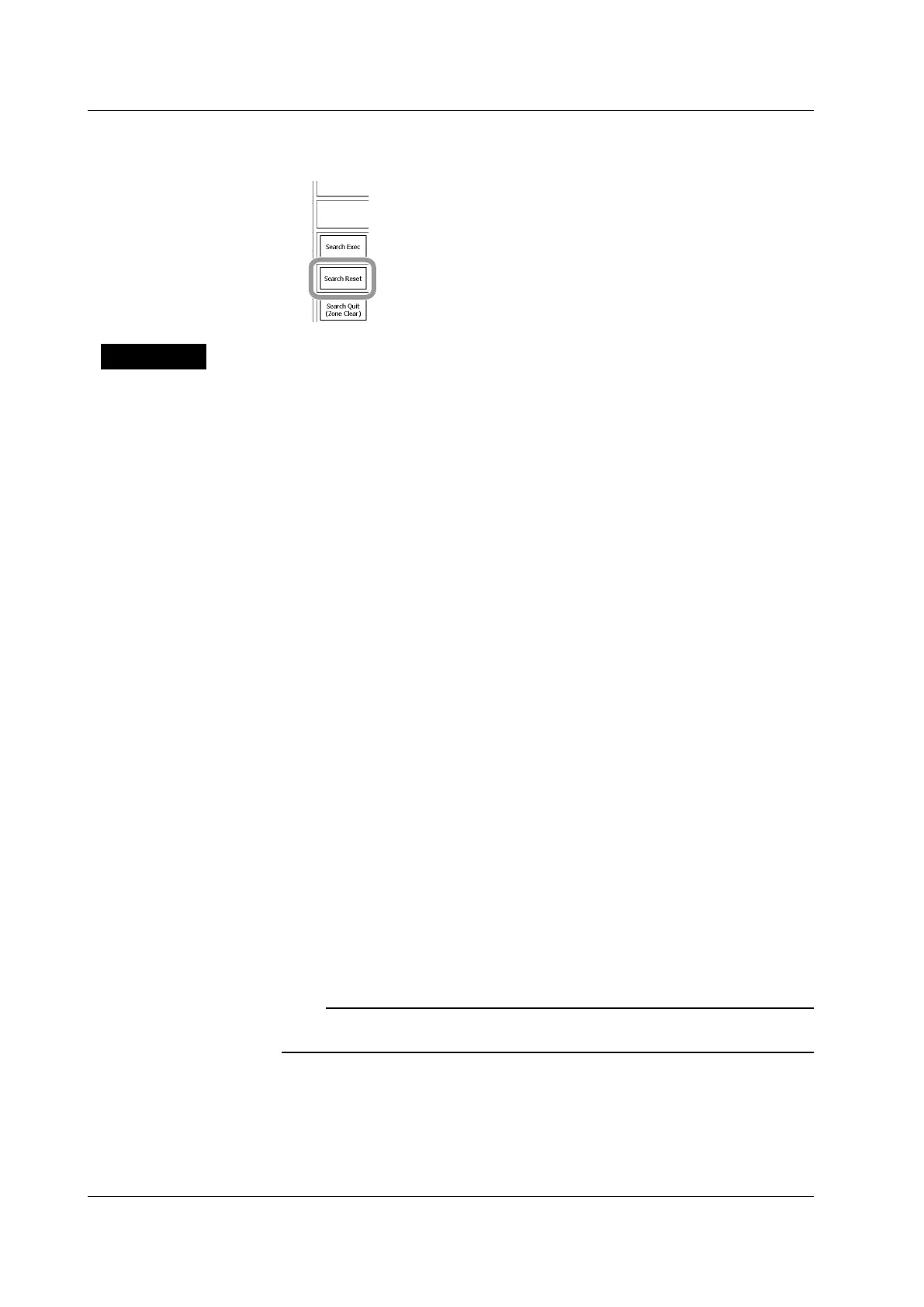

Press the Search Reset soft key to reset all search conditions.
Explanation
The DL9000 searches waveforms depending on whether or not the source waveform is
in the zone that you set using a reference waveform.
Search Logic
• AND: Searches for history memory waveforms that meet all search conditions 1 to 4.
• OR: Searches for history memory waveforms that meet any of the search conditions
from 1 to 4.
Search Condition Number
You can choose to configure a search condition from 1 to 4.
Search Source Waveform
You can choose a waveform from CH1 to CH4 and from M1 to M4.
Search Zone
Set the search range.
• Upper and lower boundaries: �8 divisions from the reference waveform
•
Left and right boundaries: �5 divisions from the center of the screen
Y
ou can choose to apply the search zones assigned to search condition numbers 1 to 4
to input signal waveforms (CH1 to CH4) and computed waveforms (M1 to M4). Any zone
whose condition setting is enabled appears on the display.
Search Area
You can set the search area to less than or equal to � 5 divisions from the time axis.
Search Criterion
• IN: Searches for history waveforms that are in the search zone.
• OUT: Searches for history waveforms that are outside the search zone.
• X: Not used for the search.
Note
If you press the Search soft key and then press the Search Quit (Zone Clear) soft key, the
search zone will be cleared, and the top menu for the HISTORY key will appear.
11.2 Searching History Waveforms Using Waveform Zones (Wave History Search)
To Next Page
