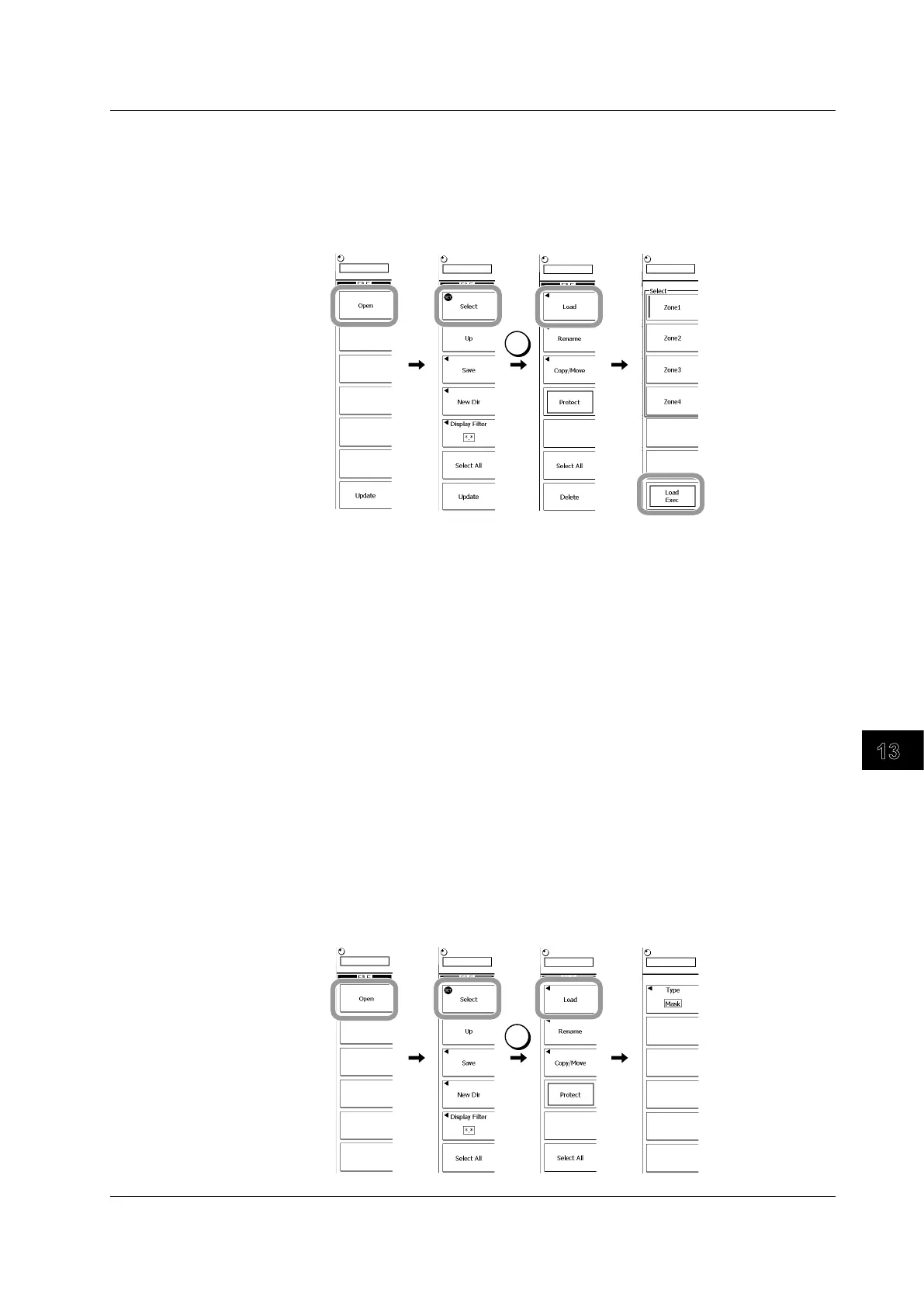

Loading the Waveform Zone
1.
Press FILE.
2.
Using the Up and Open soft keys and the rotary knob, select the file to be loaded.
3.
Press the Select soft key or SET. A menu of file operations appears.
4.
Press the Load soft key.
Selecting the Load Destination
5.
Press the soft key that corresponds to zone number that you want to load into.
Executing the Load
6.
Press the Load EXEC soft key.
The selected file is read from the directory indicated in Path=...... At the same time, the Load
EXEC soft key changes to the Load Abort soft key.
Aborting a Load
7.
Press the Load Abort soft key.
The load operation is aborted. At the same time, the Load Abort soft key changes to the
Load EXEC soft key.
Loading the Polygonal Zone or Mask Pattern
1.
Select the file to be loaded in the same manner as for Loading the Waveform
Zone above.
2.
Press Select soft key or SET.
A menu of file operations appears.
3.
Press the Load soft key.
13.7 Saving/Loading Waveform Zones, Polygonal Zones, and Mask Patterns
