YOKOGAWA MuR10000 User Manual

IM 04P01B01-01E
5-4

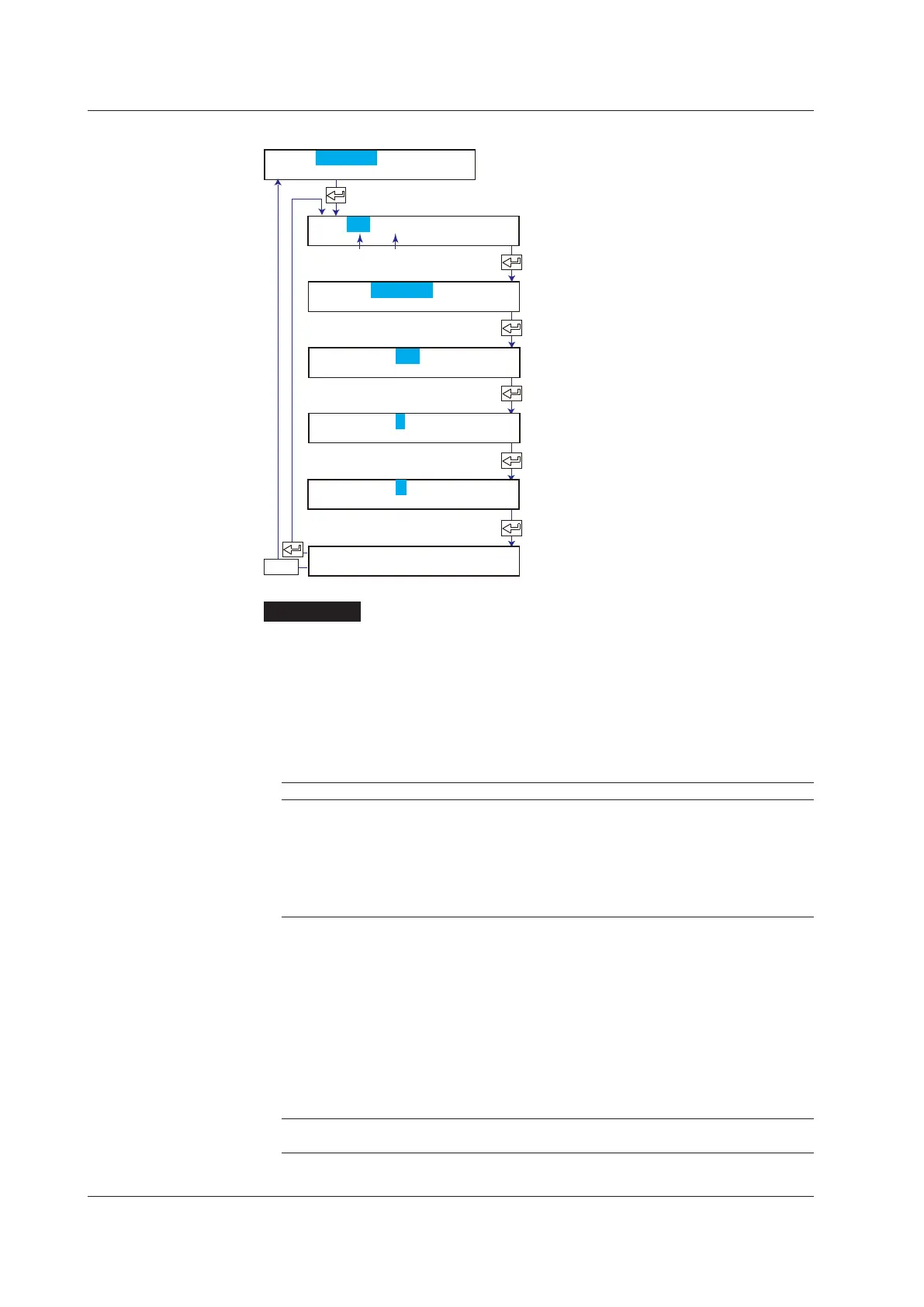

5.1 Setting the Input Range
Delta Computation
Select Delta.
Set the channel range.
Set the reference channel.
Set the left span value.
Set the right span value.
The new setting takes effect.
First channel Last channel
ESC/?
Set=Range
CH=02-02
Mode=Delta
Ref.CH=01
Span_L= -2.000
Span_R= 2.000
02-02 Channel
Setting complete
Description
• Reference Channel
The reference channel must be a channel that is smaller in channel number than the
channel being set.
• Span Left and Span Right
The range type is set to the same type as the reference channel. The span left and
span right can be set in the range shown below. Span left and span right cannot be
set to the same value.
Input Type Range Type Selectable Span Range
DC voltage
(Volt)
20 mV –20.00 to 20.00 mV
60 mV –60.00 to 60.00 mV
200 mV –200.0 to 200.0 mV
2 V –2.000 to 2.000 V
6 V –6.000 to 6.000 V
20 V –20.00 to 20.00 V
50 V –50.00 to 50.00 V
Thermocouple
(TC)
R –1760.0 to 1760.0°C –3168 to 3168°F
S –1760.0 to 1760.0°C –3168 to 3168°F
B –1820.0 to 1820.0°C –3276 to 3276°F
K –1570.0 to 1570.0°C –2826 to 2826°F
E –1000.0 to 1000.0°C –1800 to 1800°F
J –1300.0 to 1300.0°C –1999.9 to 2340.0°F
T –600.0 to 600.0°C –1080.0 to 1080.0°F
N –1300.0 to 1300.0°C –2340 to 2340°F
W –1999.9 to 2315.0°C –4167 to 4167°F
L –1100.0 to 1100.0°C –1980 to 1980°F
U –600.0 to 600.0°C –1080.0 to 1080.0°F
WRe –1999.9 to 2400.0°C –4320 to 4320°F
RTD PT (Pt100) –800.0 to 800.0°C –1440.0 to 1440.0°F
JPT (JPt100) –750.0 to 750.0°C –1350.0 to 1350.0°F
