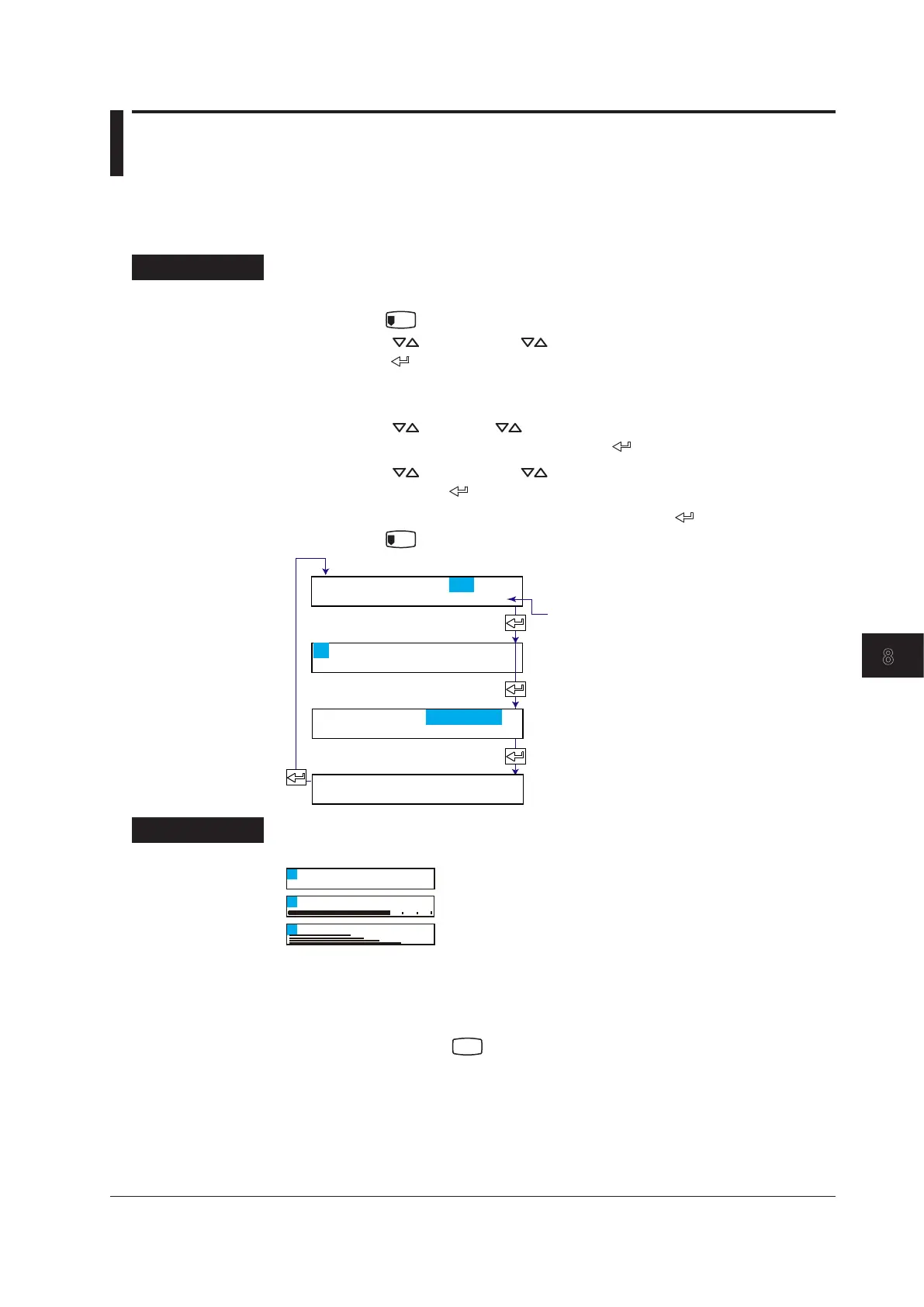

8.2 Changing the Displayed Information
This section explains the details of registering display types to screens 01 to 15. As an
example, the procedure to set 1-channel digital display (tag display) and the display in
which different channels are assigned to top and bottom sections is explained below.
Procedure
1-Channel Digital Display (Tag Display)
1.
Hold the
MENU
1
key for 3 seconds to show the data display setup screen.
2.
Press the key or SHIFT + key to select the screen number and then
press the
key.
A sample screen of the display type appears. A section of the display blinks to
indicate that this is a data display setup screen.
3.
Press the or SHIFT + key to switch the display. Select the TAG001A
(Tag_1CH digital) display and then press the
key.
4.
Press the key or SHIFT + key to select the channel switching interval
and then press the
key.
5.
When the Setting complete screen appears, press the key.
Hold the
MENU
1
key down for 3 seconds to exit from the data display setup screen.
Select the channel switching interval.
Select the display type.
Select the screen No.
Current display type name.
The new setting takes effect.
Screen No.01
Setting complete
Screen No.=01
Interval=Auto2s
TAG001A
200.0 mV
Explanation
Tag Display Type
Tag_2CH digital
Tag_1CH digital + 4CH bargraph (Pen model)
Tag_1CH digital + 1CH bargraph
TAG001A:200. 0 mV
TAG002A:200. 0 mV
TAG001A
TAG001A
Interval
Sets the channel switching interval.
Select the interval from 1 s, 2 s, 3 s, 4 s, 5 s, and manual.
1s, 2s, 3s, 4s, 5s: Switches the channels at the specified interval.
Manual: Use the
CH UP
key to switch the channel. If you select Manual, specify
the channels to be displayed.
Assigning Other Display Types
• Whenassigningtheagdisplay,specifywhethertodisplaytheagforeachchannel.
• Thedisplayinwhichdi󰀨erentscreenscanbeassignedtothetopandbottomsections
is explained on the next page.
<Related Topics> Display types: Section 12.4
