8.2 Setting the Save Destination for Numeric Data,
Waveform Data, and Screen Images
► “File Save Conditions” in the features guide
► “Conditions for Saving Numeric Data” in the features guide
► “Conditions for Saving Screen Images” in the features guide
This section explains operating procedures using the following setup methods.
• Procedure Using the Setup Menu (see chapter 1)
• Procedure Using the Menu Icons (see page iii)
• Procedure Using the Keys (other than SETUP) (see section 1.2 in IM WT5000-03EN)
Procedure Using the Setup Menu
1.
Tap the Setup icon , or press MENU under SETUP.
2.
Tap Computation/Output tab. A computation and output settings overview screen appears.
Pressing ESC closes the overview screen.
Setting the Save Conditions (Data Save)
3.
Tap Data Save.

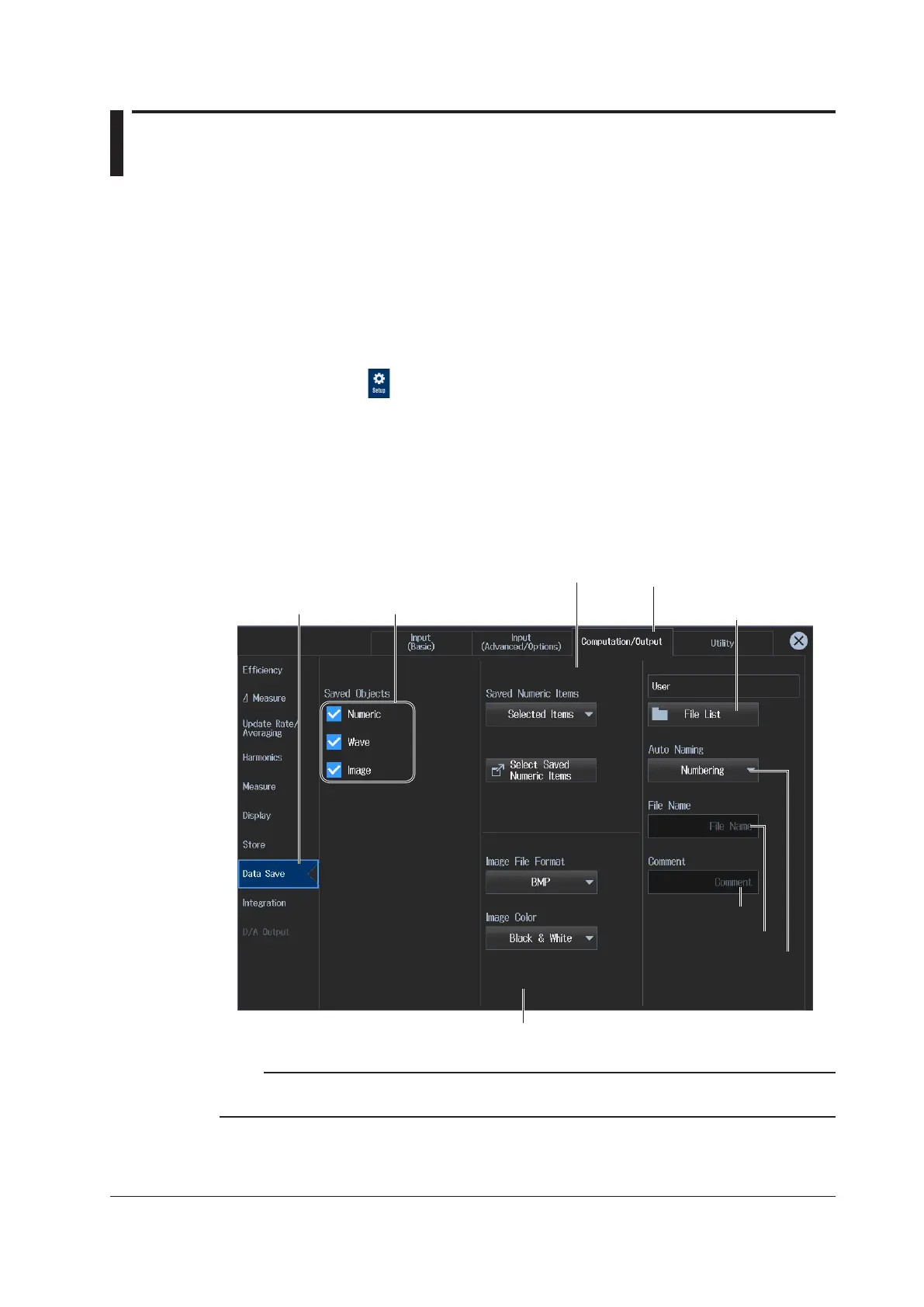

An save condition setup screen appears.
Computation/Output tab
Set the save conditions.
Select the data you
want to save.
Set the save
destination.
Set comments.
Numeric data item setup screen
(see section 8.3)
Image screen (see section 8.4)
Set auto naming.
Set the file name.
Note
You can also display the computation/output settings overview screen by moving the cursor on the
Computation/Output tab using the arrow keys and then pressing SET.
