YOKOGAWA WT5000 User Manual

15-6
IM WT5000-02EN
15.4 Web Server Feature
► “Web Server (FTP/Web Server)” in the features guide
This section explains operating procedures using the following setup methods.
• Procedure Using the Setup Menu (see chapter 1)
• Procedure Using the Keys (other than SETUP) (see section 1.2 in IM WT5000-03EN)
Procedure Using the Setup Menu
1.
Tap the Setup icon , or press MENU under SETUP.
2.
Tap the Utility tab. The utility settings overview screen appears.
Pressing ESC closes the overview screen.
3.
Tap Network. An Ethernet setup screen (TCP/IP, FTP/Web Server, Net Drive, SNTP) appears.
Configuring the Web Server (Web Server)
4.

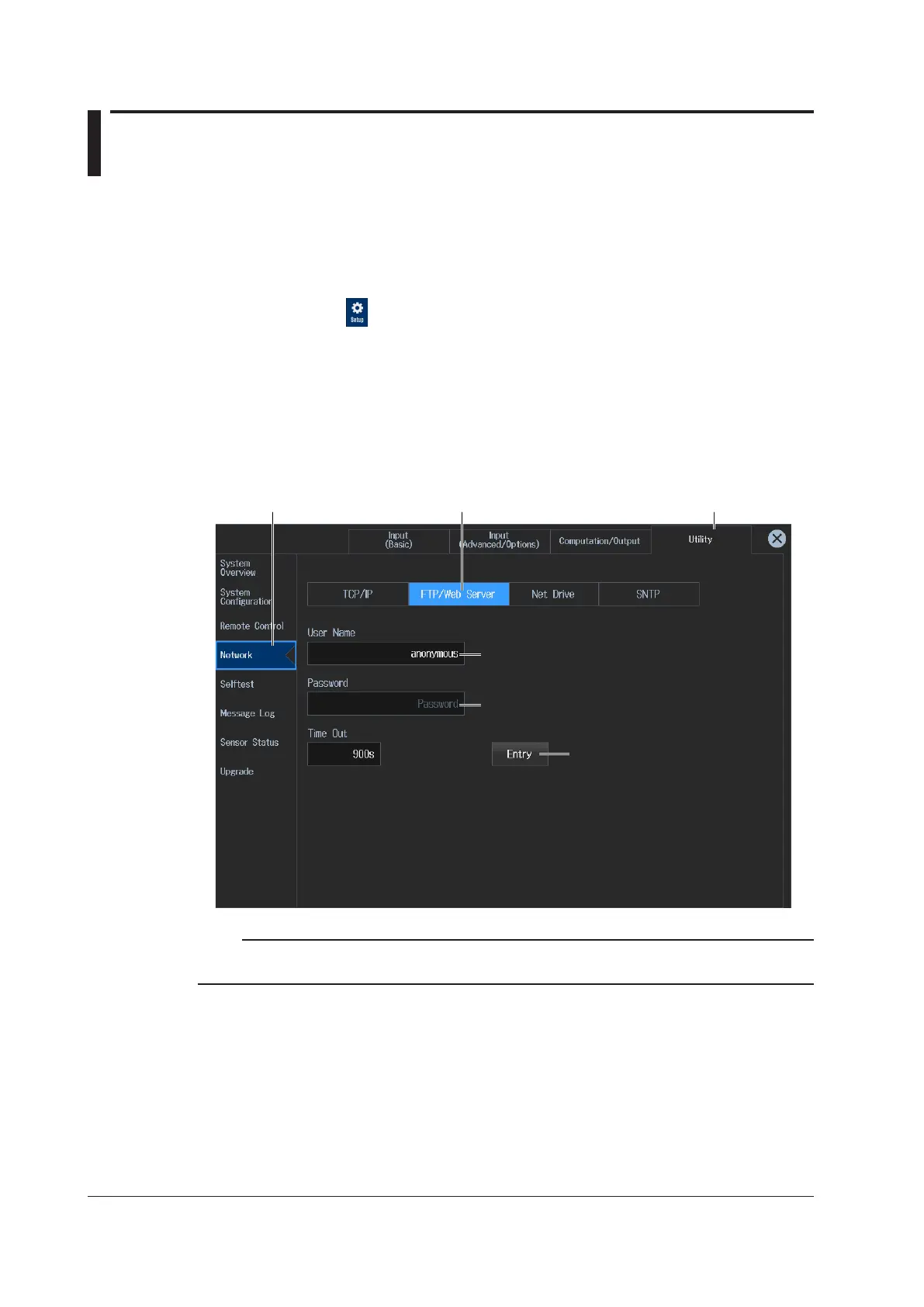

Tap FTP/Web Server. An FTP/Web Server screen appears.
Time Out is a setting used by the FTP server feature. You do not have to set it for the Web server feature.
Utility tab
Configure the Ethernet.
Configure the FTP server.
Set the user name (up to 32 characters).
Set the password (up to 32 characters).
Applies the settings
Note
You can also display the utility settings overview screen by moving the cursor on the Utility tab using the
arrow keys and then pressing SET.
Procedure Using Keys
See section 15.2.

YOKOGAWA WT5000 Specifications

General

Frequency Range	DC, 0.1 Hz to 1 MHz
Number of Channels	Up to 7
Interfaces	USB, Ethernet, GP-IB, RS232
Sampling Rate	10 MS/s
Harmonic Analysis	Up to the 500th order
Weight	Approximately 15 kg
Display	10.1-inch WXGA (1280 x 800) TFT LCD
