YOKOGAWA WT5000 User Manual

1-1
IM WT5000-02EN
1.1 Setting the Measurement Mode
This instrument has the following measurement modes. Configure various settings according to the
measurement mode.
• Normal measurement (Normal)
This mode has settings required for normal power measurements and a setup menu for common
features. The settings required for power measurements are also used in IEC harmonic and
voltage fluctuations/flicker measurements when necessary.
• IEC Harmonic measurement (IEC Harmonic)
This mode has a setup menu for IEC harmonic measurements. See chapter 13.
• IEC Voltage fluctuation/flicker measurement (Flicker)
This mode has a setup menu for IEC voltage fluctuation/flicker measurements. See chapter 14.

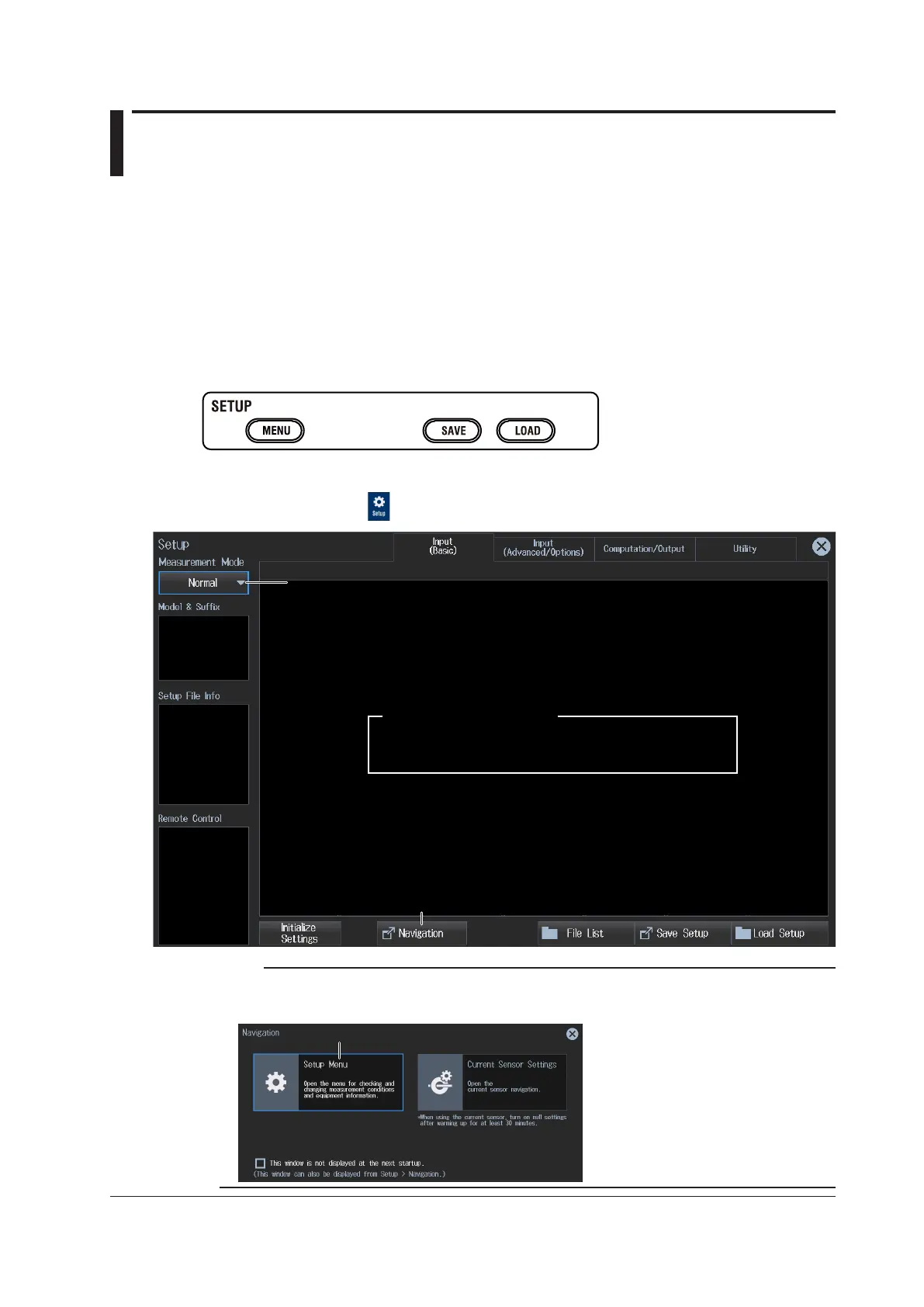

Measurement Mode (Measurement Mode)
1.
Tap the Setup icon , or press MENU under SETUP. The setup menu screen appears.
Selects the measurement mode (Normal)
Displays the navigation window
Various overview screens
Input settings overview (see section 1.2)
Computation and output settings overview (see section 1.3)
Utility settings overview (see section 1.4)
Note
You can also display the setup menu screen from the navigation window that appears immediately after
power-on.
Displays the setup menu screen
Navigation window
Chapter 1 Setup Menu

YOKOGAWA WT5000 Specifications

General

Frequency Range	DC, 0.1 Hz to 1 MHz
Number of Channels	Up to 7
Interfaces	USB, Ethernet, GP-IB, RS232
Sampling Rate	10 MS/s
Harmonic Analysis	Up to the 500th order
Weight	Approximately 15 kg
Display	10.1-inch WXGA (1280 x 800) TFT LCD
