1-9
IM WT5000-02EN

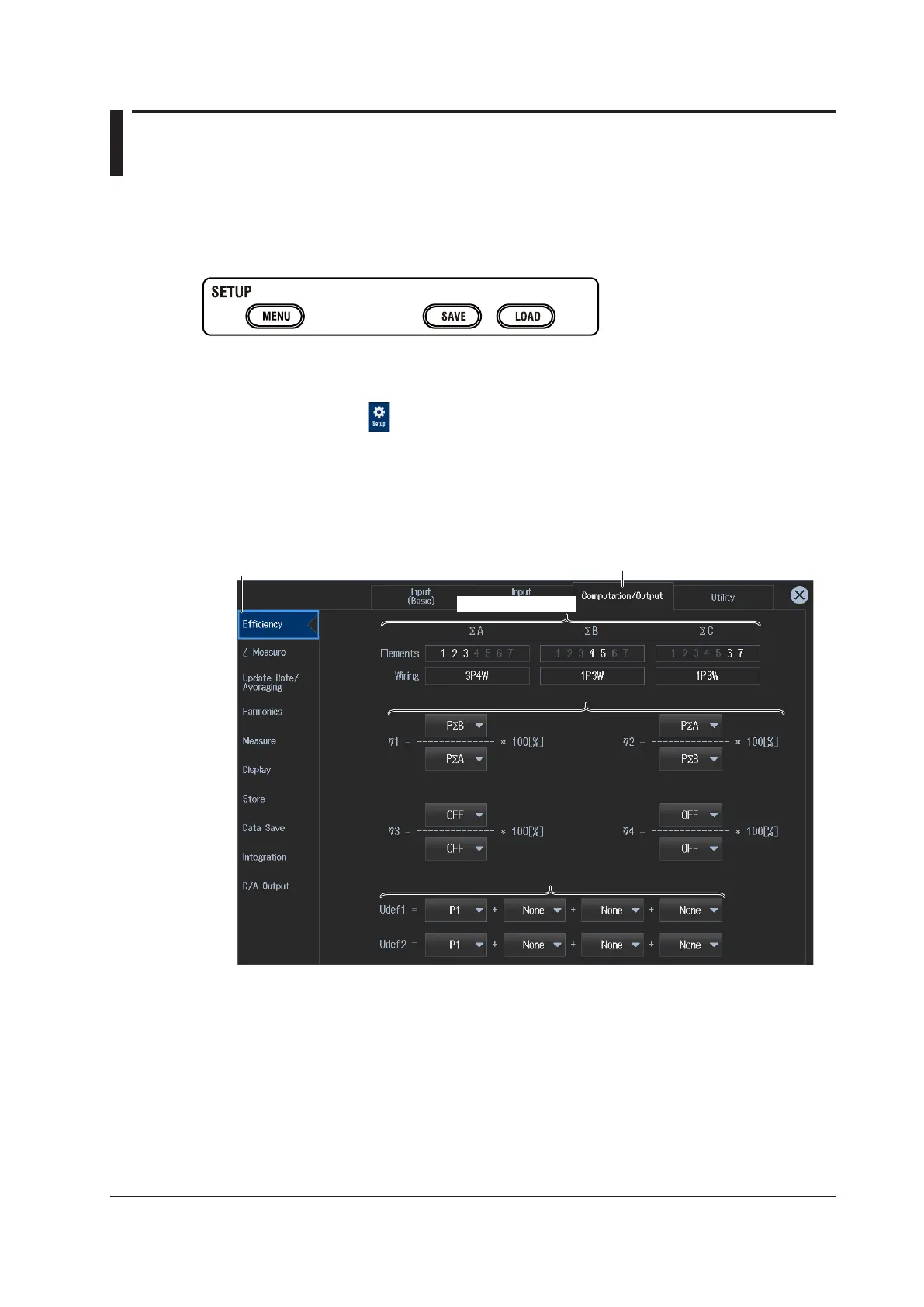

1.3 Computation and Output Settings Overview
The overview screen shows in a table the various settings related to the input signal computing
method, harmonic measurement, integration conditions, numeric and graphic screen displays, data
saving, DA output, and so on. You can control all the settings from this overview screen.
Computation and Output Settings Overview (Computation/
Output)
1.
Tap the Setup icon , or press MENU under SETUP.
2.
Tap Computation/Output tab. A computation and output settings overview screen appears.
Pressing ESC closes the overview screen.
Setting the Efficiency Equation (Efficiency) ► section 2.11
3.
Tap Efficiency. An efficiency equation setup screen appears.
Computation/Output tab
Efficiency
button
Efficiency equation
Wiring information
Definition to use when you want to add active power or motor output to the equation
To Next Page
